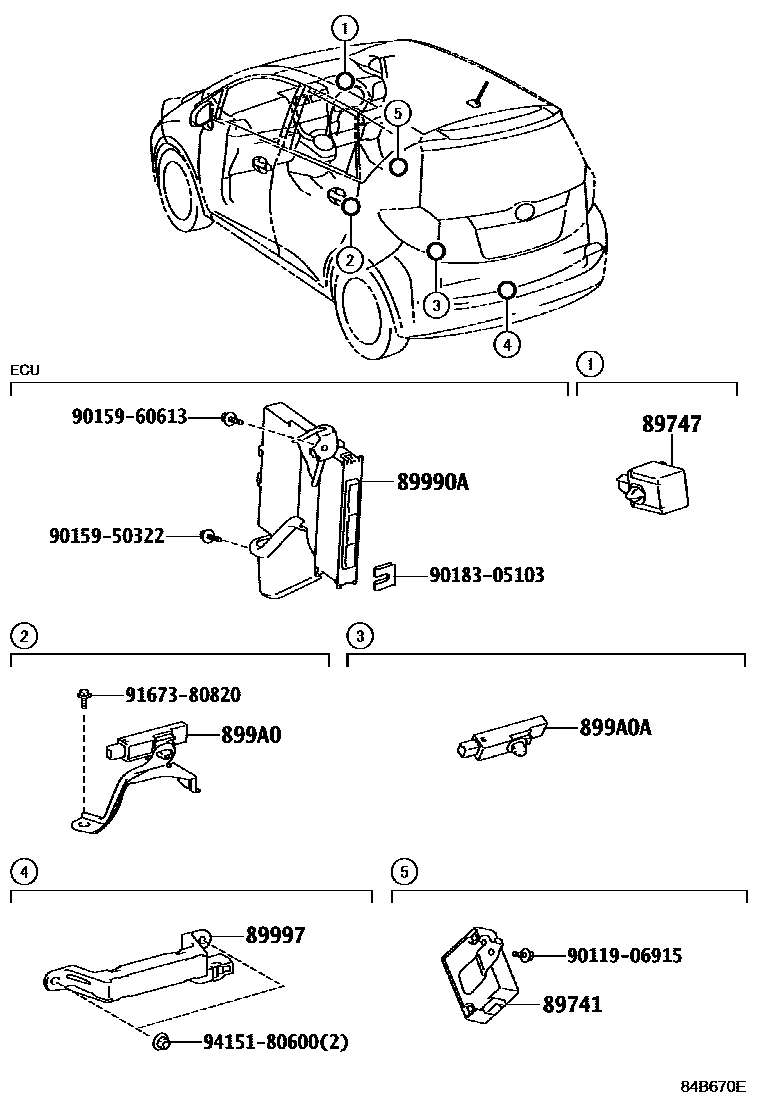

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-52190iNCP120..LUNA201011-201107

main89740-52330iNCP120..LUNA201107-201108

main89741-52460iNCP120..TERRA201405

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iNCP120..LUNA201405

89990ACOMPUTER ASSY, SMART KEY

main89990-52170iNCP120..LUNA201011-201102

main89990-52171iNCP120..LUNA201103-201401

main89990-52172iNCP120..LUNA201401-201405

89997ANTENNA, ELECTRICAL KEY

main89997-30070iNCP120..LUNA201011-201405

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-52010iNCP120..LUNA201011-201405

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iNCP120..LUNA201011-201405

9011906915

main90119-06915

9015950322

main90159-50322

9015960613

main90159-60613

9018305103

main90183-05103

9167380820

main91673-80820

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
