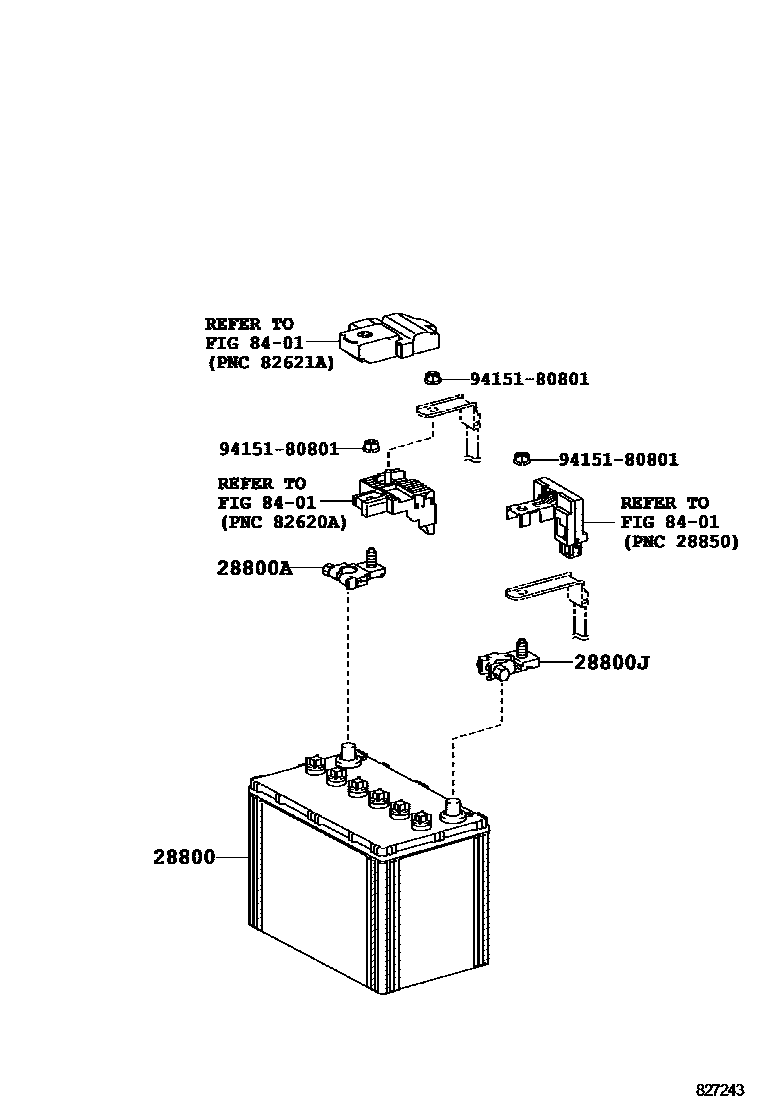

BATTERY & BATTERY CABLE

28800BATTERY

main28800-47030i1NZFE..NCP120201208-201405

Q-55,YUASA

main28800-47050i1NZFE..NCP120201405

Q-55,PANASONIC

main28800-47060i1NZFE..NCP120201011-201208

Q-55,YUASA

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i1NZFE..NCP120201011-201405

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1NZFE..NCP120201011-201405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

5 parts on this diagram · 1 diagram in section
