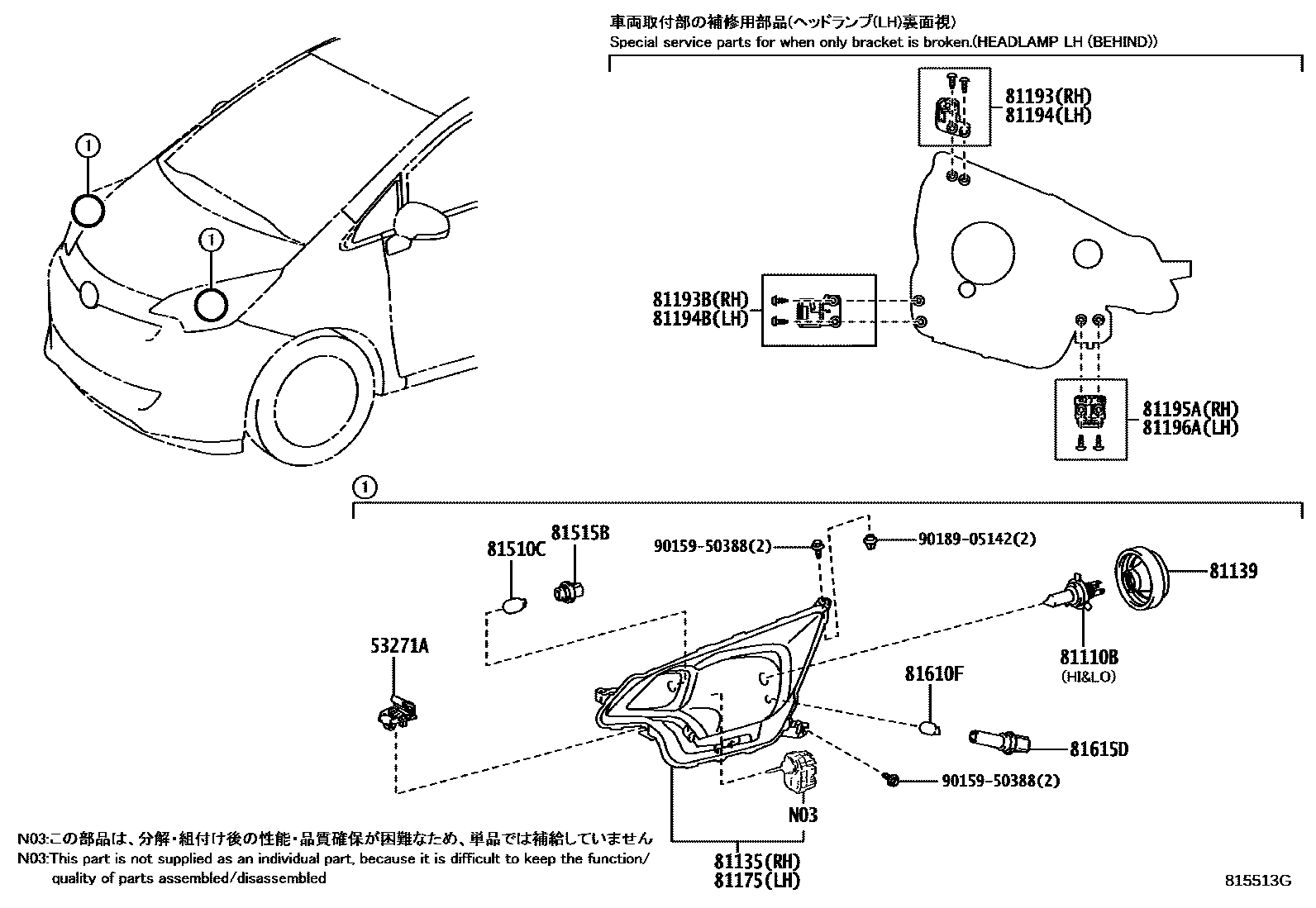

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1DISCHARGE HEADLAMP 0003 1HALOGEN HEADLAMP 0004 1DISCHARGE HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010iNCP120201011-201405

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iNCP120201011-201405

12V 60/55W,HALOGEN

main90981-13089iNCP120201405

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-52C60iNCP120201011-201405

main81130-52J70iNCP120201405-201501

main81130-52J71iNCP120201501

81139COVER, HEADLAMP SOCKET

main81139-52570iNCP120201011-201405

81175UNIT ASSY, HEADLAMP, LH

main81170-52C60iNCP120201011-201405

main81170-52J70iNCP120201405-201501

main81170-52J71iNCP120201501

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52170iNCP120201011-201405

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-52160iNCP120201011-201405

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52170iNCP120201011-201405

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-52160iNCP120201011-201405

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-52140iNCP120201011-201405

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81195-52140iNCP120201011-201405

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iNCP120201011-201405

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050iNCP120201011-201405

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iNCP120201011-201405

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iNCP120201011-201405

9015950388

main90159-50388

9018905142

main90189-05142

17 parts on this diagram · 4 diagrams in section
