BATTERY CARRIER

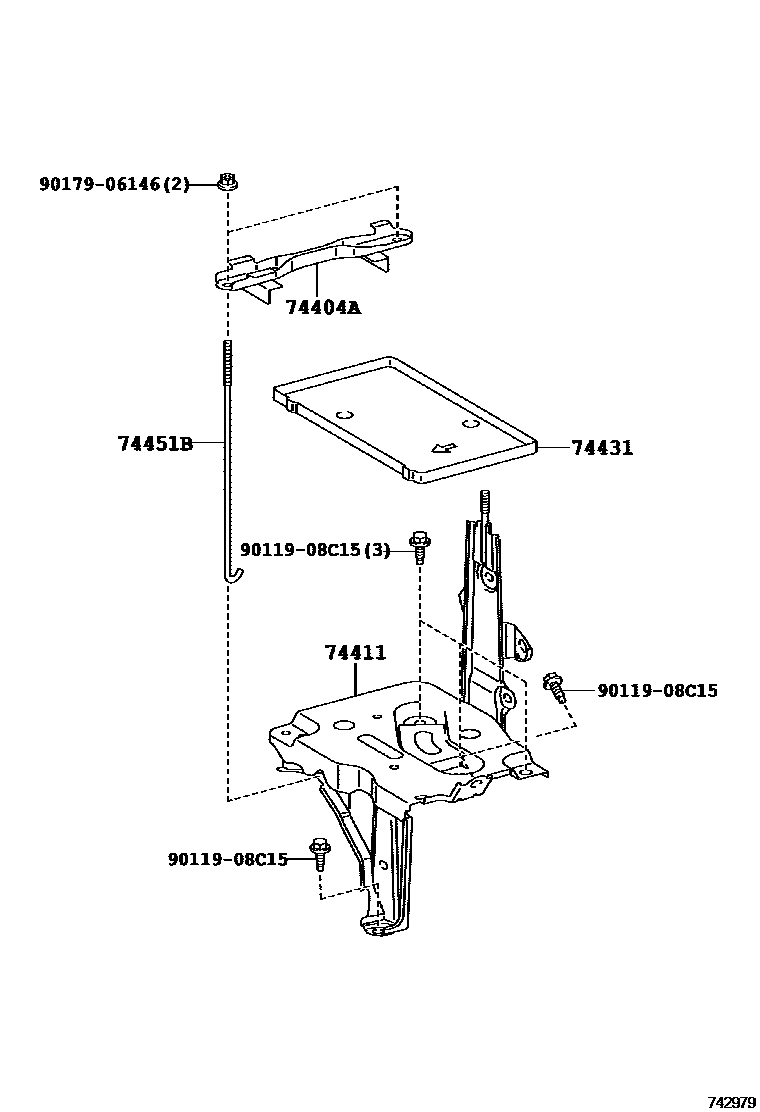

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-52130i201011-201405

74411CARRIER, BATTERY

main74410-52050i201011-201107

main74410-52051i201108-201405

74431TRAY, BATTERY

main74431-52111i201011-201405

74451BBOLT, BATTERY CLAMP

main74451-52070i201011-201204

main74451-52071i201205-201405

9011908C15

main90119-08C15

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
