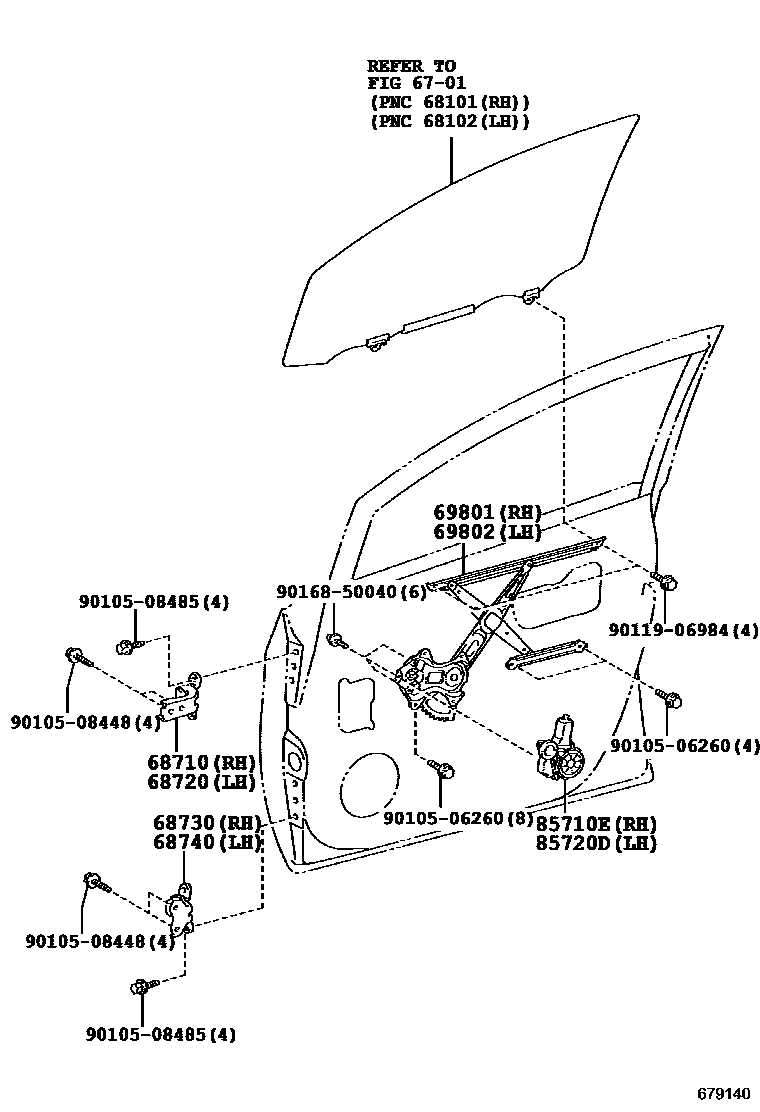

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iNCP120201011-201405

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iNCP120201011-201405

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iNCP120201011-201405

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iNCP120201011-201405

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-21020iNCP120201011-201405

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-21010iNCP120201011-201405

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52170iNCP120201011-201301

main85710-52171iNCP120201302-201405

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35140iNCP120201011-201405

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
