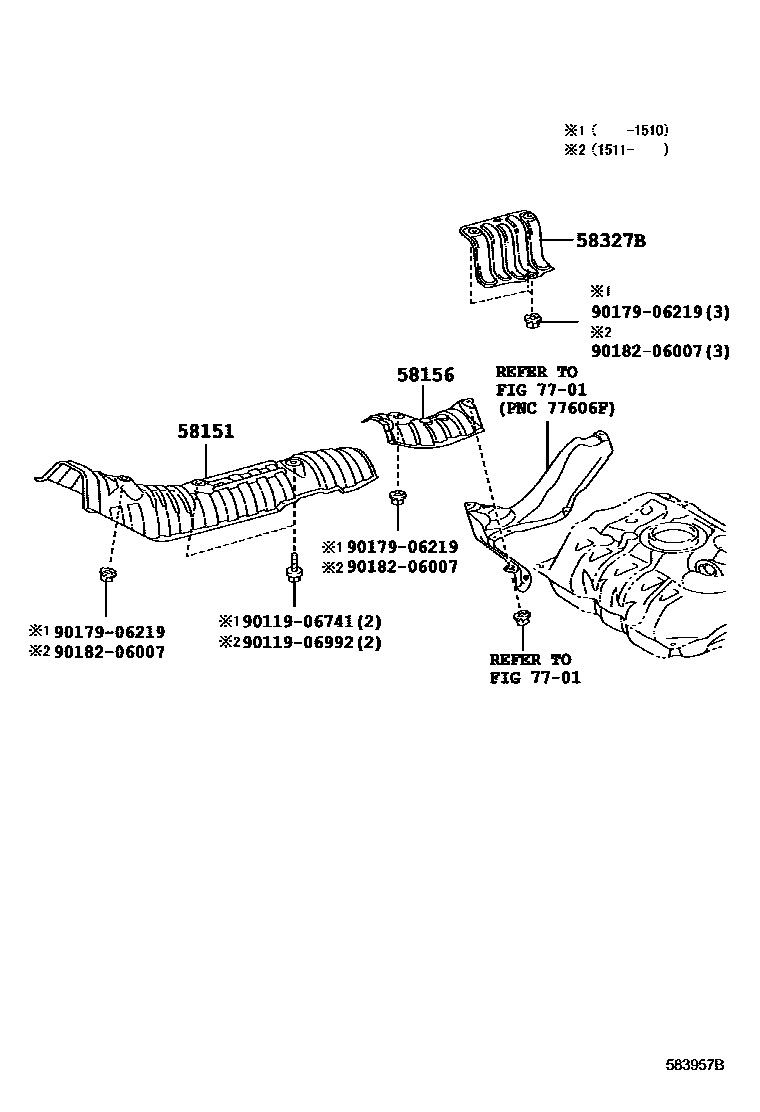

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52062iNCP120201011-201405

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52020iNCP120201011-201405

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52111iNCP120201011-201405

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906741

main90119-06741

9011906992

main90119-06992

9017906219

main90179-06219

9018206007

main90182-06007

8 parts on this diagram · 1 diagram in section
