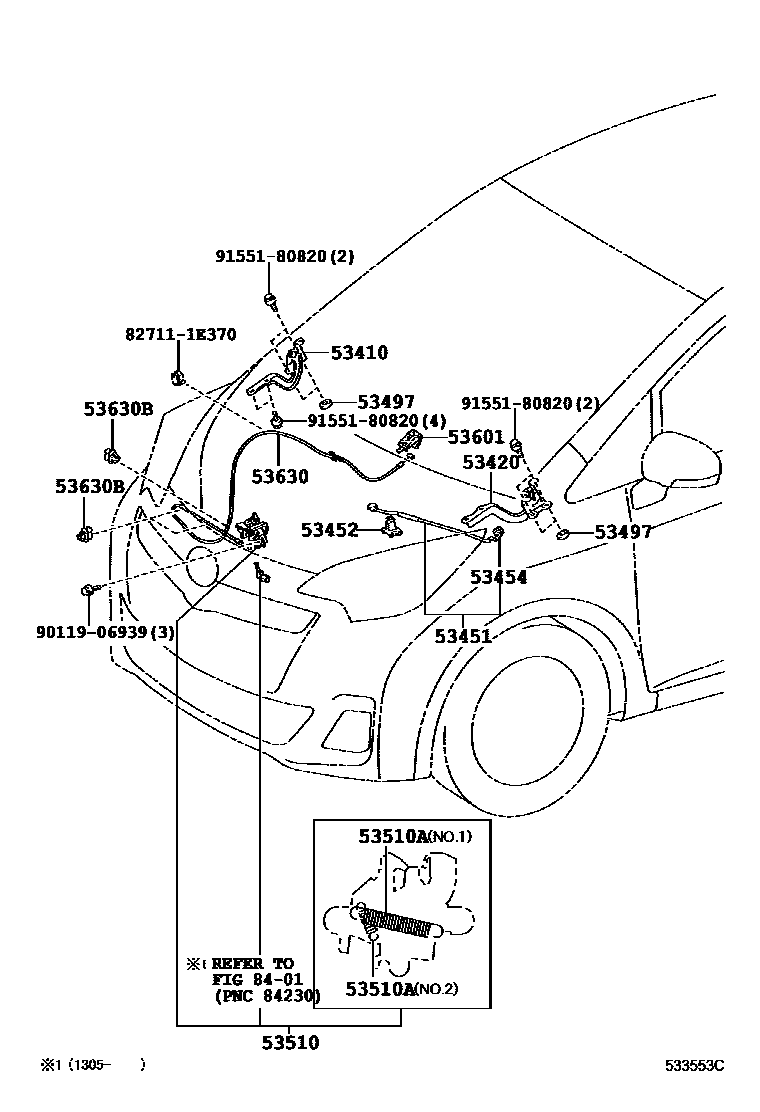

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52310iNCP120201405

53420HINGE ASSY, HOOD, LH

main53420-52320iNCP120201011-201405

53451ROD, HOOD SUPPORT

main53440-52210iNCP120201011-201304

main53440-52211iNCP120201305-201405

main53440-52212iNCP120201503

53452HOLDER, HOOD STAY

main53452-52020iNCP120201011-201405

53454CLIP, HOOD SUPPORT ROD

main53454-12040iNCP120201011-201405

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iNCP120201011-201104

T=2.0

main53497-42010×4iNCP120201011-201104

T=0.5

53510LOCK ASSY, HOOD

main53510-52401iNCP120201011-201305

main53510-52411iNCP120201405

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-10046iNCP120201405

WD=1.0,CW=15.5,NO.2

main90506-16080iNCP120201405

WD=1.6,CW=13,NO.1

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iNCP120..LUNA; NCP120..TERRA201011-201405

BLACK,TRIM2#; BLACK,TRIM2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52120iNCP120201011-201405

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iNCP120201011-201405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9155180820

main91551-80820

15 parts on this diagram · 1 diagram in section
