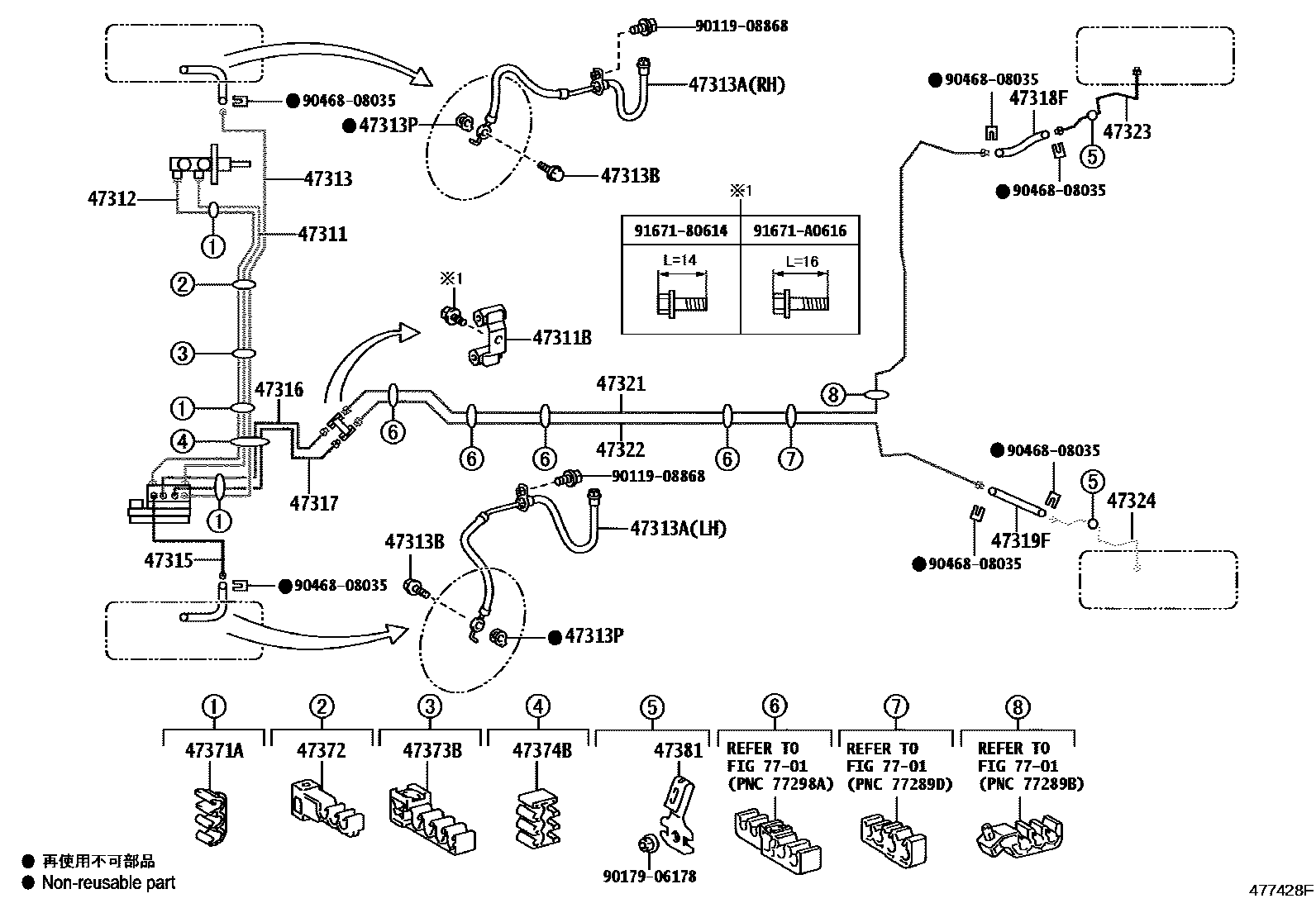

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

47311TUBE, FRONT BRAKE, NO.1

main47311-52470iNCP120201011-201305

main47311-52610iNCP120201405

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iNCP120201011-201405

47312TUBE, FRONT BRAKE, NO.2

main47312-52420iNCP120201405

main47312-52430iNCP120201011-201305

main47312-52570iNCP120201305-201405

47313TUBE, FRONT BRAKE, NO.3

main47313-52220iNCP120201011-201305

main47313-52230iNCP120201305-201405

main47313-52231iNCP120201405

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E07iNCP120201011-201111

RH

main90947-02E08iNCP120201011-201111

LH

main90947-02G34iNCP120201111-201405

RH

main90947-02G35iNCP120201111-201405

LH

main90947-02H35iNCP120201405

RH

main90947-02H36iNCP120201405

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNCP120201011-201405

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNCP120201011-201405

47315TUBE, FRONT BRAKE, NO.5

main47315-52220iNCP120201011-201305

main47315-52230iNCP120201305-201405

main47315-52231iNCP120201405

47316TUBE, FRONT BRAKE, NO.6

main47316-52150iNCP120201011-201305

main47316-52190iNCP120201305-201405

main47316-52191iNCP120201405

47317TUBE, FRONT BRAKE, NO.7

main47317-52150iNCP120201011-201305

main47317-52190iNCP120201305-201405

main47317-52191iNCP120201405

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E09iNCP120201011-201111

main90947-02G36iNCP120201111-201405

main90947-02H31iNCP120201405

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E10iNCP120201011-201111

main90947-02G38iNCP120201111-201405

main90947-02H32iNCP120201405

47321TUBE, REAR BRAKE, NO.1

main47321-52320iNCP120201011-201405

main47321-52321iNCP120201405-201607

47322TUBE, REAR BRAKE, NO.2

main47322-52300iNCP120201011-201405

main47322-52301iNCP120201405-201607

47323TUBE, REAR BRAKE, NO.3

main47323-52130iNCP120201011-201405

main47323-52131iNCP120201405

47324TUBE, REAR BRAKE, NO.4

main47324-52120iNCP120201011-201405

main47324-52121iNCP120201405

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868×3iNCP120201011-201305

main90464-00899iNCP120201305-201405

47372CLAMP, BRAKE TUBE, NO.2

main90464-00929iNCP120201307-201405

main90949-01D02iNCP120201011-201305

main90949-01D84iNCP120201305-201307

main90949-01D94iNCP120201405

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D83iNCP120201011-201305

main90949-01D84iNCP120201307-201405

main90949-01D85iNCP120201305-201307

main90949-01D97iNCP120201405

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00925iNCP120201307-201405

main90464-00929iNCP120201305-201307

main90949-01969iNCP120201011-201305

main90949-01D98iNCP120201405

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-52020×2iNCP120201011-201405

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9017906178

main90179-06178

9046808035

main90468-08035

9167180614

main91671-80614

91671A0616

main91671-A0616

27 parts on this diagram · 5 diagrams in section
