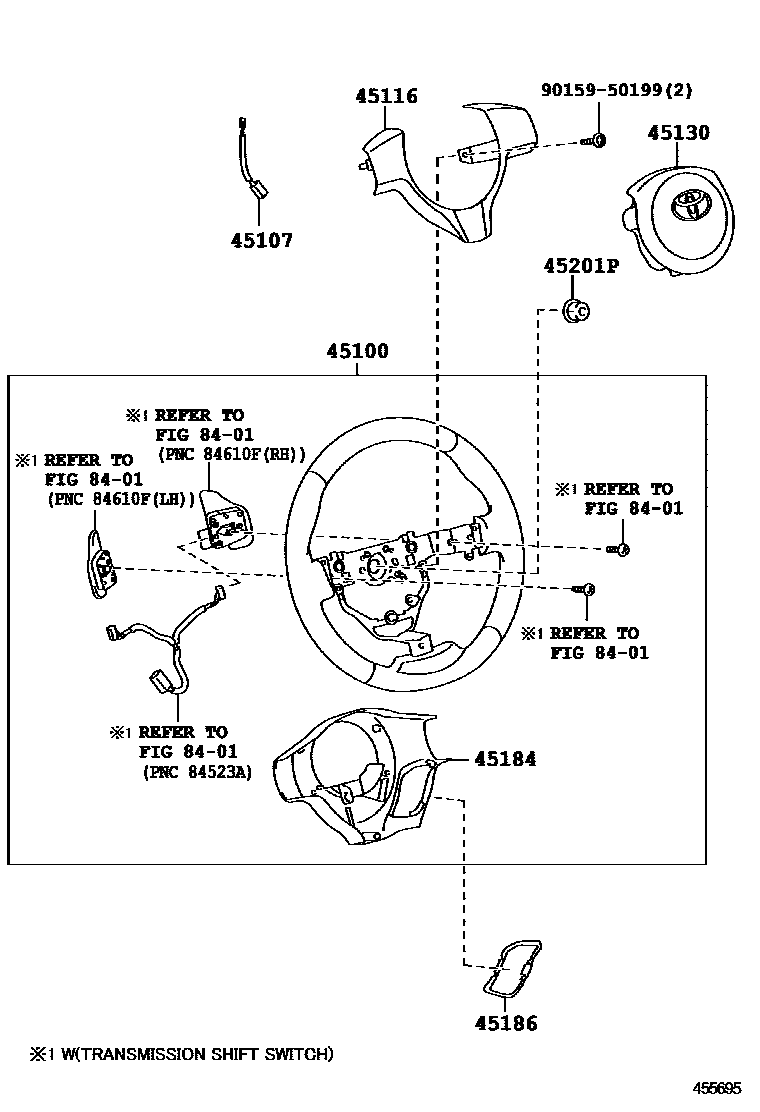

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52480-C1iNCP120..TERRA201011-201405

3-SPOKE, URETHANE,BLACK,TRIM2#

main45100-52500-C1iNCP120..LUNA201011-201405

3-SPOKE, LEATHER,BLACK,TRIM2#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-48010iNCP120..TERRA201011-201405

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52090-C0iNCP120201011-201310

BLACK,TRIM2#

main45116-52170-C0iNCP120201310-201405

BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-52550-C0iNCP120201011-201405

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-52150-C0iNCP120..TERRA201405-201607

BLACK,TRIM2#

main45184-52160-C0iNCP120..LUNA201105-201405

BLACK,TRIM2#

main45184-52160-C1iNCP120..LUNA201011-201105

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-52020-C0iNCP120..LUNA; NCP120..TERRA201011-201405

BLACK,TRIM2#; BLACK,TRIM2#,4#

45201PNUT, STEERING WHEEL SET

main90179-12071iNCP120201011-201405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
