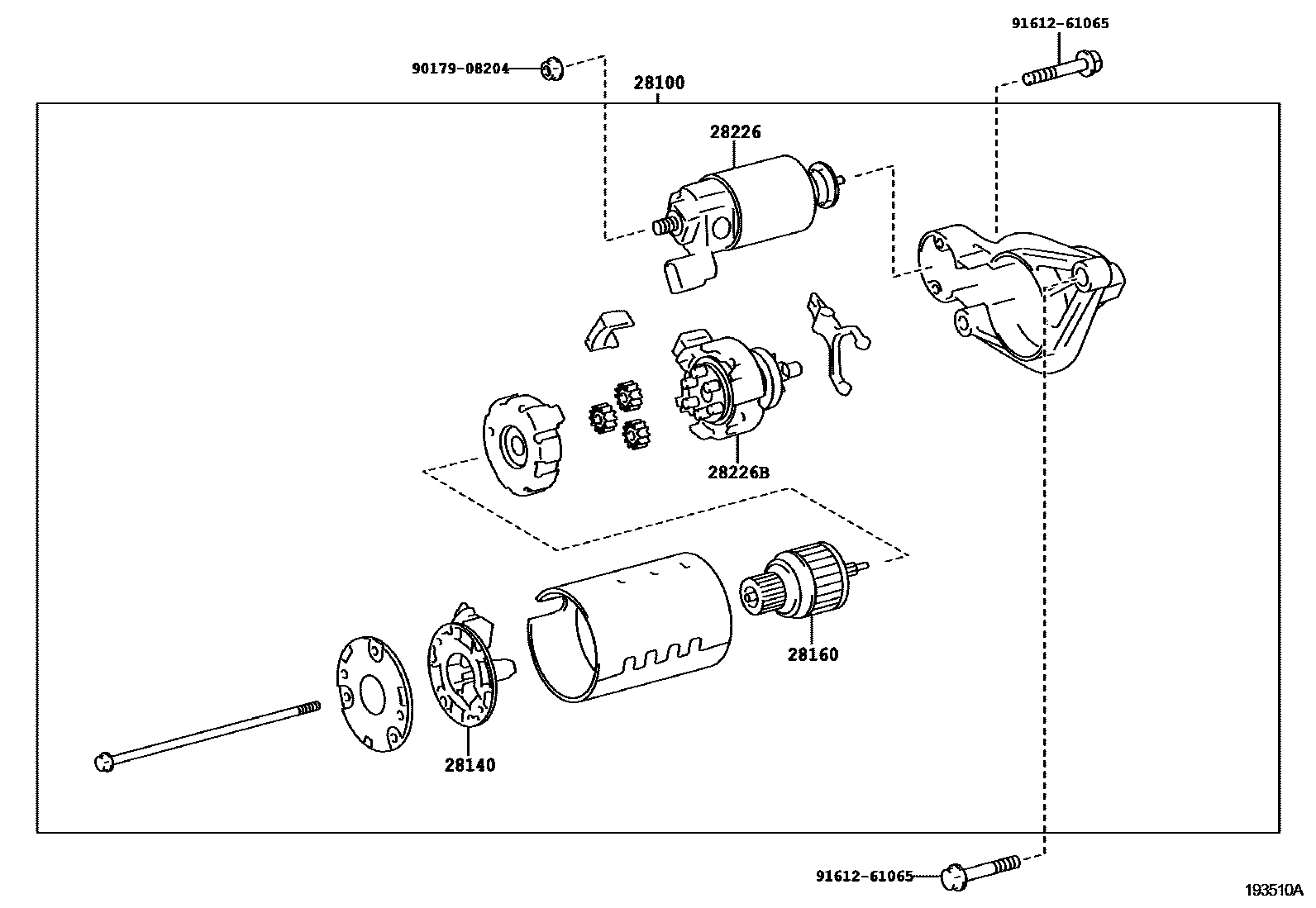

STARTER

0001 112V 1.0KW 0002 112V 0.8KW 0003 112V 1.7KW

28100STARTER ASSY

main28100-21021i1NZFE..NCP120201208-201305

12V 0.8KW

sub28100-21022

main28100-21070i1NZFE..NCP120201011-201208

12V 1.0KW

sub28100-21140

main28100-21100i1NZFE..NCP120201305-201405

12V 1.7KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070i1NZFE..NCP120201011-201208

main28140-21100i1NZFE..NCP120201305-201405

main28140-70020i1NZFE..NCP120201208-201305

28160ARMATURE ASSY, STARTER

main28160-21070i1NZFE..NCP120201011-201208

main28160-37100i1NZFE..NCP120201503-201607

main28160-38070i1NZFE..NCP120201305-201503

main28160-70021i1NZFE..NCP120201208-201305

28226STARTER KIT, BATTERY TERMINAL

main28226-21080i1NZFE..NCP120201011-201208

sub28226-21081

28226BSTARTER KIT, REPAIR SERVICE

main28226-21070i1NZFE..NCP120201011-201208

sub28021-21070

9017908204

main90179-08204

9161261065

main91612-61065

7 parts on this diagram · 3 diagrams in section
