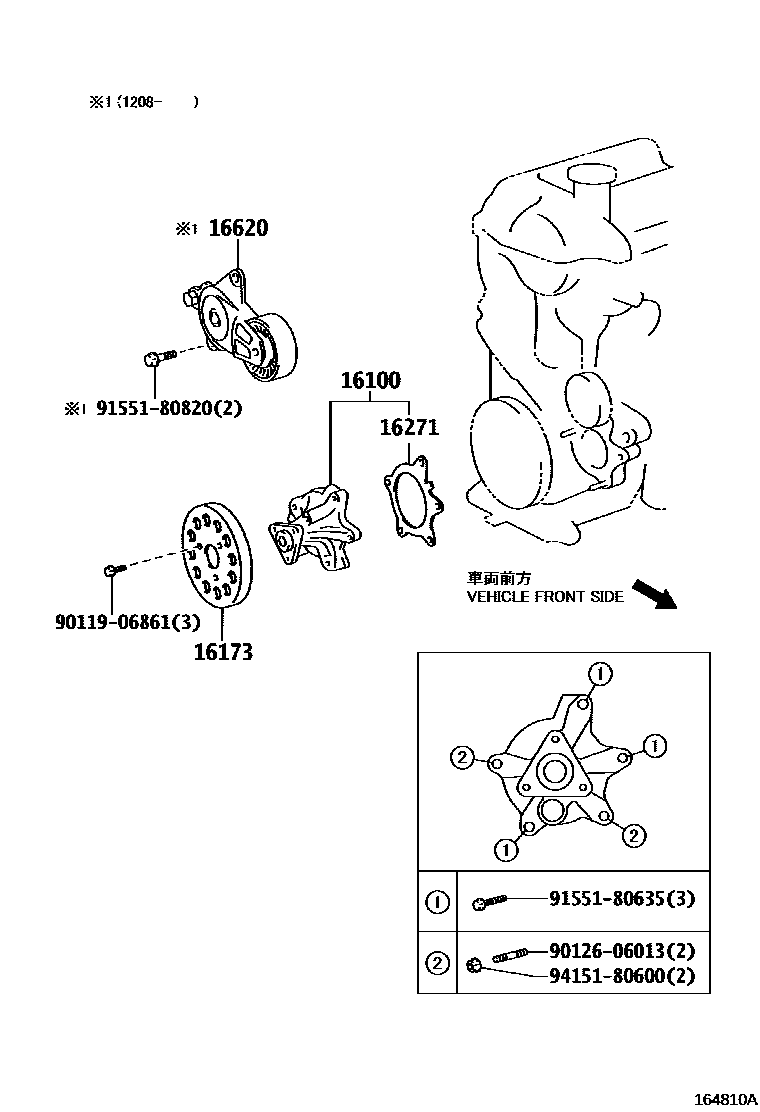

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-29156i1NZFE..NCP120201011-201111

main16100-29157i1NZFE..NCP120201111-201405

16173PULLEY, WATER PUMP

main16173-21020i1NZFE..NCP120201011-201405

16271GASKET, WATER PUMP

main16271-21020i1NZFE..NCP120201011-201111

main16271-21021i1NZFE..NCP120201111-201405

16620TENSIONER ASSY, V-RIBBED BELT

main16620-21010i1NZFE..NCP120201208-201405

9011906861

main90119-06861

9012606013

main90126-06013

9155180635

main91551-80635

9155180820

main91551-80820

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
