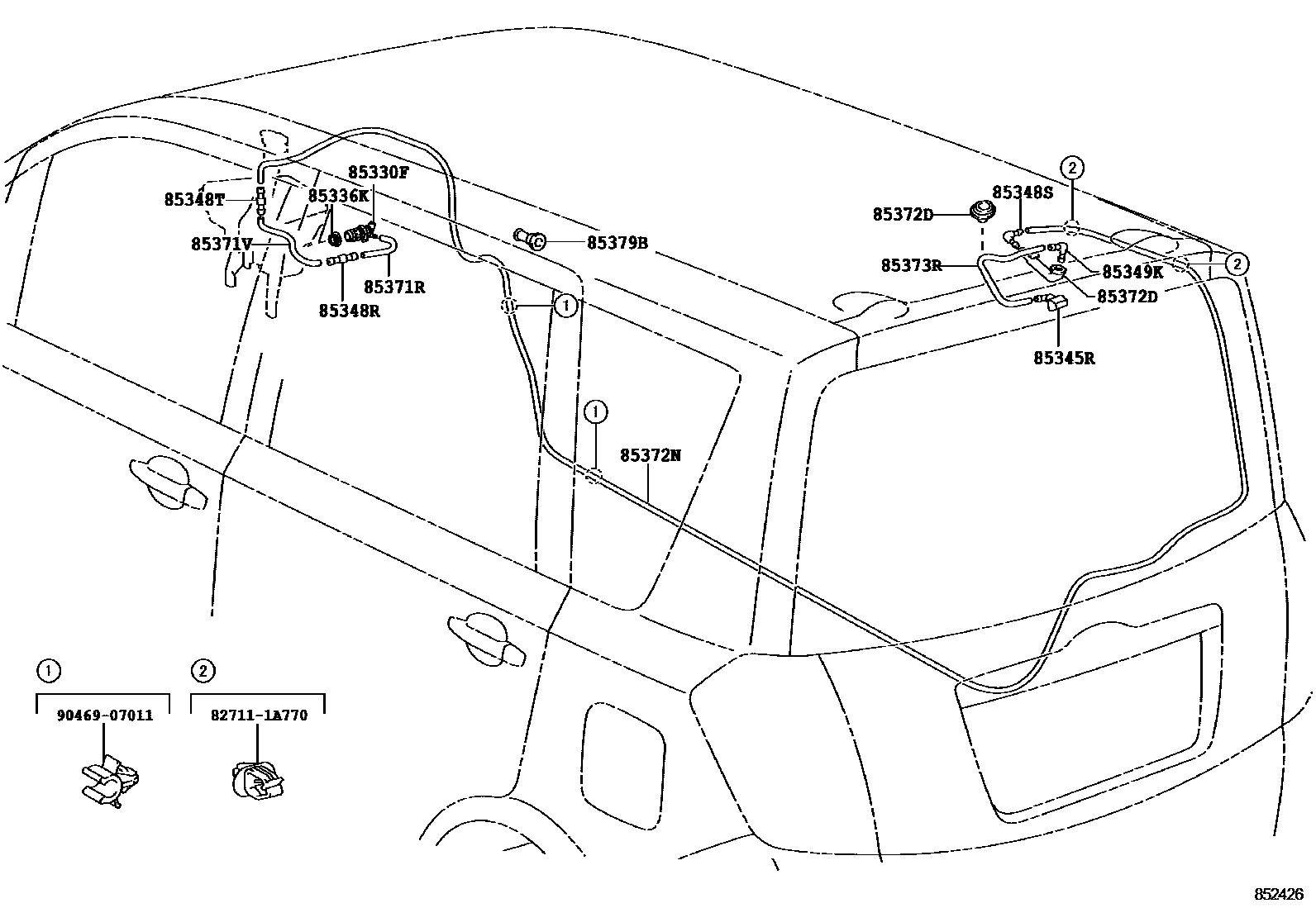

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iSCP100200910

85336KPROTECTOR, WASHER JAR

main85336-60300iSCP100200910-201008

85345RNOZZLE, REAR WASHER

main85391-52100iSCP100200910

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iSCP100200910

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iSCP100200910

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iSCP100200910

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iSCP100200910

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main85336-12230iSCP100200910

L=15

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90099-33080iSCP100200910

L=1450(*H,L=200)

85372DGROMMET, REAR WASHER HOSE

main85372-20020iSCP100200910

NO.1

main85372-20040iSCP100200910

NO.2

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595iSCP100200910

L=4985(*H,L=4550)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iSCP100200910

L=1450(*H,L=230)

85379BGROMMET, WASHER, A

main85379-52351iSCP100200910

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9046907011

main90469-07011

15 parts on this diagram · 1 diagram in section
