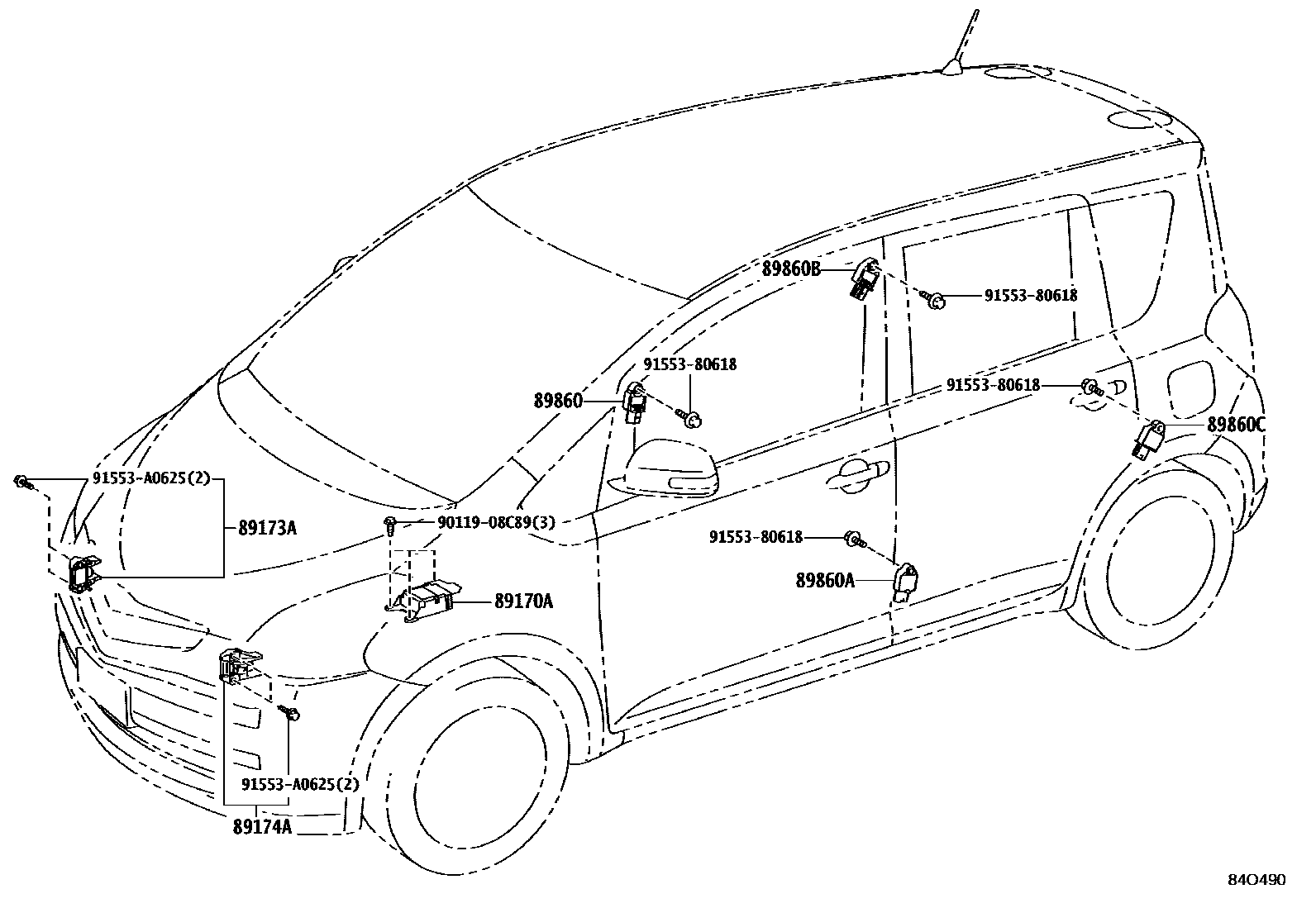

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-52B80iSCP100200910

89173ASENSOR, AIRBAG, FRONT RH

main89173-39375iSCP100200910

89174ASENSOR, AIRBAG, FRONT LH

main89173-39375iSCP100200910

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iSCP100200910

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iSCP100200910

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-33020iSCP100200910

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-33020iSCP100200910

9011908C89

main90119-08C89

9155380618

main91553-80618

91553A0625

main91553-A0625

10 parts on this diagram · 1 diagram in section
