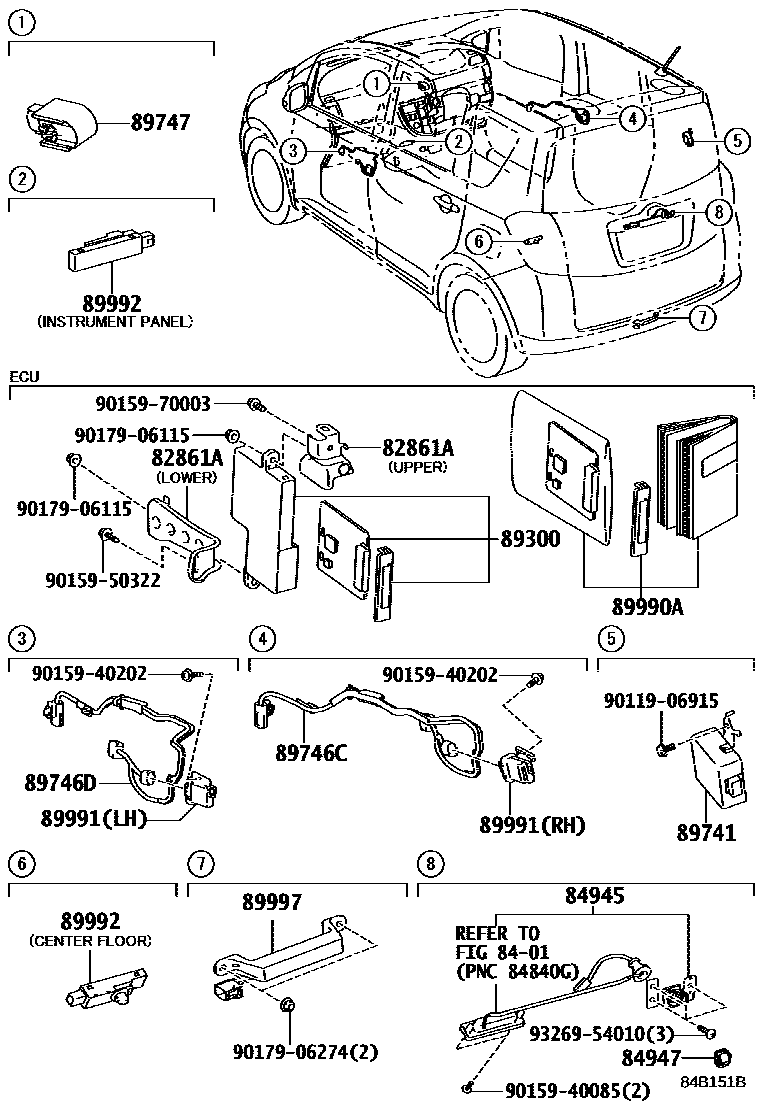

WIRELESS DOOR LOCK

82861ABRACKET, COMPUTER INTEGRATION, NO.1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84905-52030

84947COVER, DOOR ELECTRICAL KEY SWITCH

main84947-50010

89300BOX ASSY, ECU AGGREGATION

main89300-52120

89741RECEIVER, DOOR CONTROL

main89741-52270iSCP100200910

L PACKAGE

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010

89990ACOMPUTER ASSY, SMART KEY

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040

main89991-30050

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-52010

main89992-52020

89997ANTENNA, ELECTRICAL KEY

main89997-52010

9011906915

main90119-06915

9015940085

main90159-40085

9015940202

main90159-40202

9015950322

main90159-50322

9015970003

main90159-70003

9017906115

main90179-06115

9017906274

main90179-06274

9326954010

main93269-54010

21 parts on this diagram · 1 diagram in section
