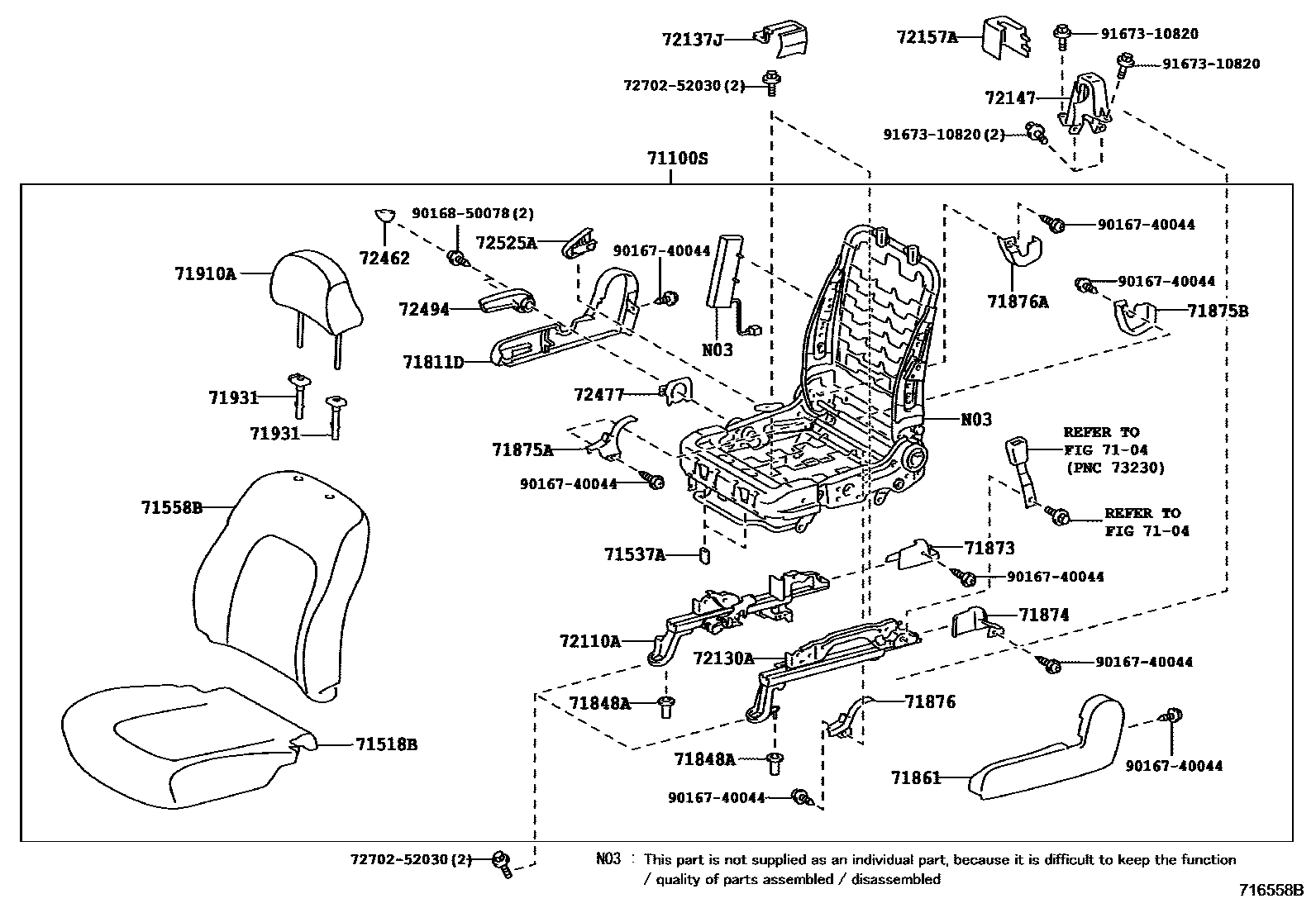

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71100SSEAT ASSY, FRONT RH

main71100-5CW20-B0iSCP100200910-201003

GREGE,TRIM1#

main71100-5CW21-B0iSCP100201004-201008

GREGE,TRIM1#

71518BPAD, FRONT SEAT CUSHION W/COVER, RH

main71518-52J90-B2iSCP100200910-201008

GREGE,TRIM1#

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010×4iSCP100200910

71558BPAD, FRONT SEATBACK W/COVER, RH

main71558-52V61-B0iSCP100200910-201008

GREGE,TRIM1#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-52220-B0iSCP100200910-201008

DK.GRAY,TRIM1#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-33010×2iSCP100200910

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52210-B0iSCP100200910-201008

DK.GRAY,TRIM1#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-52110-B0iSCP100200910-201008

DK.GRAY,TRIM1#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-52110-B0iSCP100200910-201008

DK.GRAY,TRIM1#

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52090-B0×2iSCP100200910-201008

DK.GRAY,TRIM1#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52170-B0×2iSCP100200910-201008

DK.GRAY

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-52090-B0×2iSCP100200910-201008

DK.GRAY,TRIM1#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-52160-B0×2iSCP100200910-201008

DK.GRAY

71910AHEADREST ASSY, FRONT SEAT

main71910-52730-E3iSCP100200910-201004

GREGE,TRIM1#,LH SEAT

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-E0×2iSCP100200910-201008

W(LOCK),GREGE,TRIM1#

main71931-47010-E4×2iSCP100200910-201008

W/O(LOCK),GREGE,TRIM1#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-52100iSCP100200910-201003

main72110-52160iSCP100201004-201008

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-52160iSCP100200910-201003

main72130-52300iSCP100201004-201008

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-52080-B0iSCP100200910-201008

DK.GRAY,TRIM1#

72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72147-52040iSCP100200910

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-52070-B0iSCP100200910-201008

DK.GRAY,TRIM1#

72462COVER, VERTICAL ADJUSTER RH

main72462-58010-B0iSCP100200910-201008

DK.GRAY,TRIM1#

72477SPACER, VERTICAL ADJUSTER

main72477-58010iSCP100200910

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-52020-B0iSCP100200910-201008

DK.GRAY,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-58030-B0iSCP100200910-201008

DK.GRAY,TRIM1#

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

9016740044

main90167-40044

9016850078

main90168-50078

9167310820

main91673-10820

29 parts on this diagram · 2 diagrams in section
