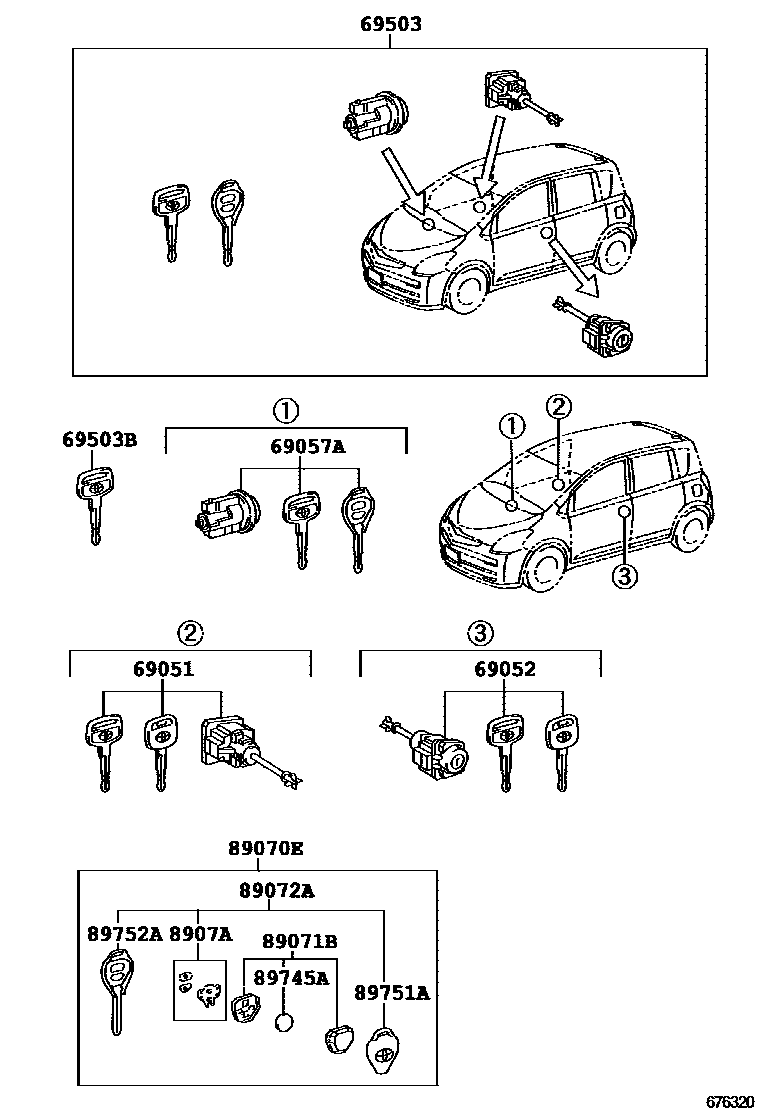

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
L PACKAGE
69503BKEY, CUT
MASTER KEY,W(*68),L PACKAGE
89070ETRANSMITTER ASSY, DOOR CONTROL
L PACKAGE
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
L PACKAGE
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
L PACKAGE
8907ASWITCH SET, TRANSMITTER
L PACKAGE
89745ABATTERY, TRANSMITTER
L PACKAGE
L PACKAGE
89751ACOVER, TRANSMITTER HOUSING
L PACKAGE
89752ACASE, TRANSMITTER HOUSING
L PACKAGE
12 parts on this diagram · 2 diagrams in section
