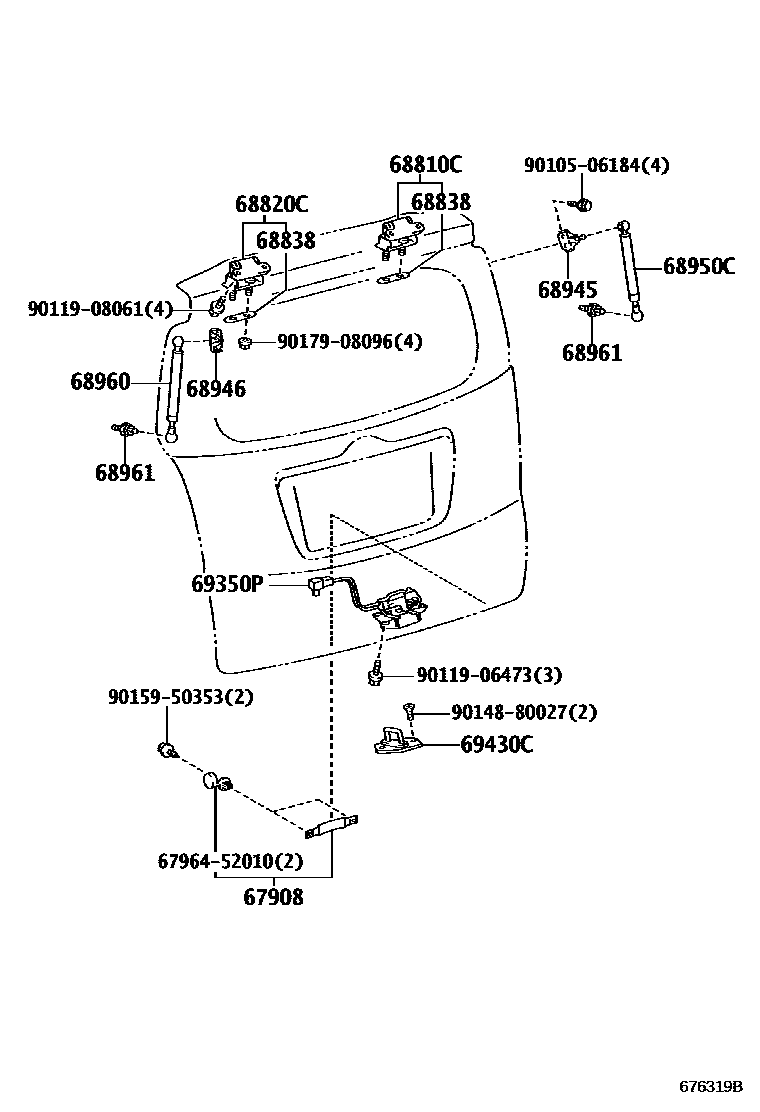

BACK DOOR LOCK & HANDLE

67908STRAP SUB-ASSY, BACK DOOR PULL

main67908-52012iSCP100200910-201008

68810CHINGE ASSY, BACK DOOR, RH

main68810-52080iSCP100200910-201008

68820CHINGE ASSY, BACK DOOR, LH

main68810-52080iSCP100200910-201008

68838PAD, BACK DOOR HINGE, NO.1

main68838-52030iSCP100200910

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52060iSCP100200910

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-52060iSCP100200910

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W401iSCP100200910

main68950-0W411iSCP100200910

*LULP

68960STAY ASSY, BACK DOOR, LH

main68960-0W401iSCP100200910

main68960-0W411iSCP100200910

*LULP

68961BOLT, BACK DOOR STAY

main68961-10030iSCP100200910

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52320iSCP100200910-201008

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-20160iSCP100200910-201008

6796452010

main67964-52010

9010506184

main90105-06184

9011906473

main90119-06473

9011908061

main90119-08061

9014880027

main90148-80027

9015950353

main90159-50353

9017908096

main90179-08096

18 parts on this diagram · 1 diagram in section
