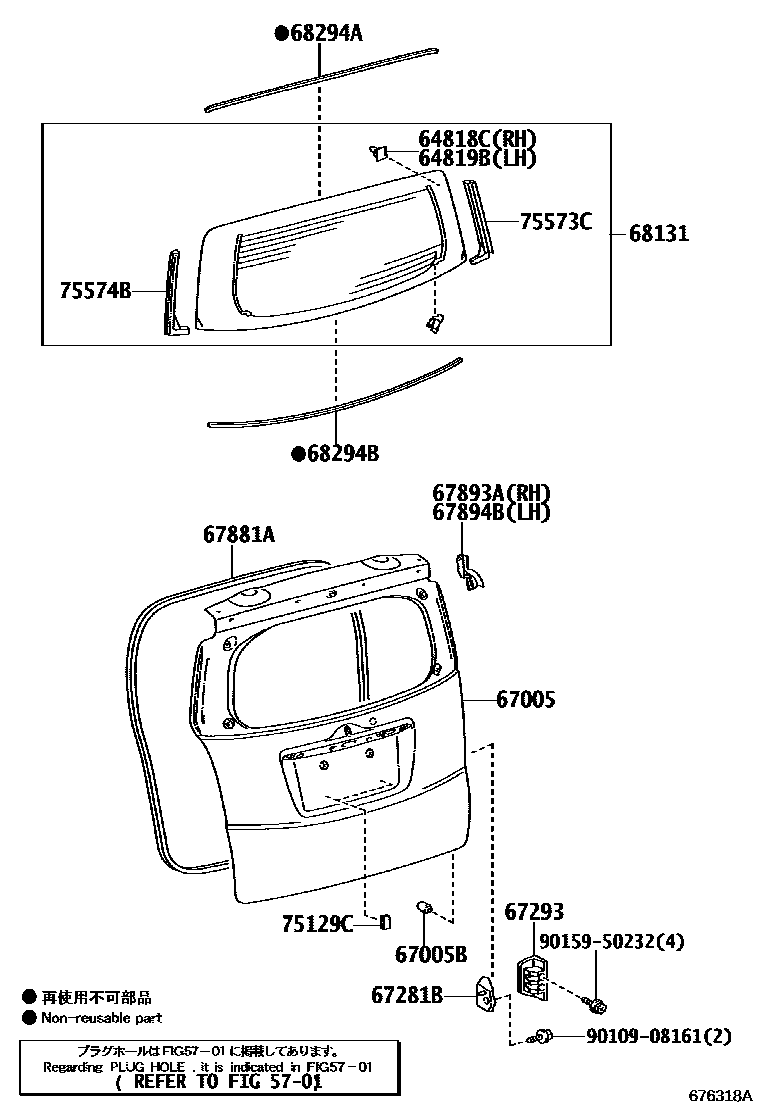

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701HOLE PLUG

→ Go to FIG 57-01

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-52050iSCP100200910

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-52050iSCP100200910

67005PANEL SUB-ASSY, BACK DOOR

main67005-52830iSCP100200910-201008

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09125×2iSCP100200910-201008

67281BSTOPPER, BACK DOOR, LOWER

main67281-52010×2iSCP100200910-201008

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-52010×2iSCP100200910-201008

67881AWEATHERSTRIP, BACK DOOR

main67881-52130iSCP100200910-201008

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-52050iSCP100200910-201008

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-52050iSCP100200910-201008

68131GLASS, BACK DOOR

main68105-52590iSCP100200910

*UVCEHT,T=3.1

68294ADAM, BACK DOOR GLASS ADHESIVE

main64813-52090iSCP100200910

68294BDAM, BACK DOOR GLASS ADHESIVE

main64814-52050iSCP100200910

75129CCUSHION, REAR LICENCE PLATE

main75129-13020×2iSCP100200910

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-52230iSCP100200910

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-52070iSCP100200910

9010908161

main90109-08161

9015950232

main90159-50232

18 parts on this diagram · 2 diagrams in section
