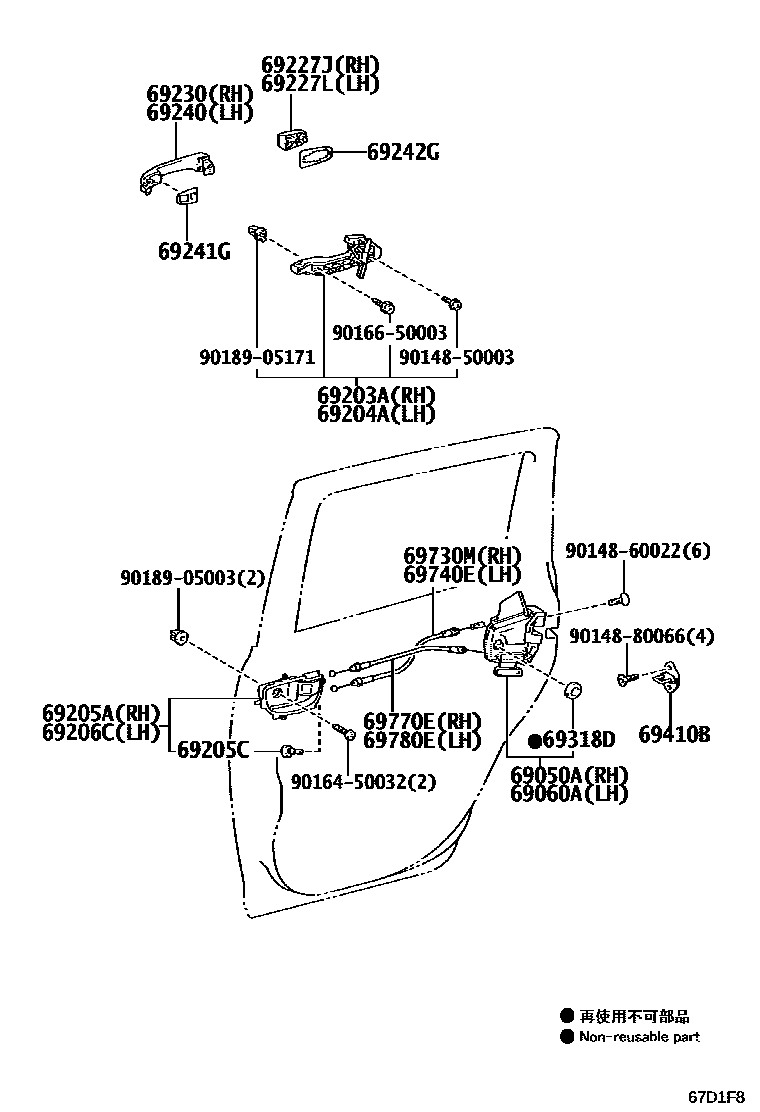

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
BLACK MC.,209
SILVER M.M.,1E7
GRAY ME.,1G2
BLUE ME.,8T4
BLUE ME.,8T7
RED M.M.,3R3
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
BLACK MC.,209
SILVER M.M.,1E7
GRAY ME.,1G2
BLUE ME.,8T4
BLUE ME.,8T7
RED M.M.,3R3
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER M.M.,1E7
GRAY ME.,1G2
BLACK MC.,209
RED M.M.,3R3
BLUE ME.,8T4
BLUE ME.,8T7
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER M.M.,1E7
GRAY ME.,1G2
BLACK MC.,209
RED M.M.,3R3
BLUE ME.,8T4
BLUE ME.,8T7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450032
main90164-50032
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171
26 parts on this diagram · 1 diagram in section
