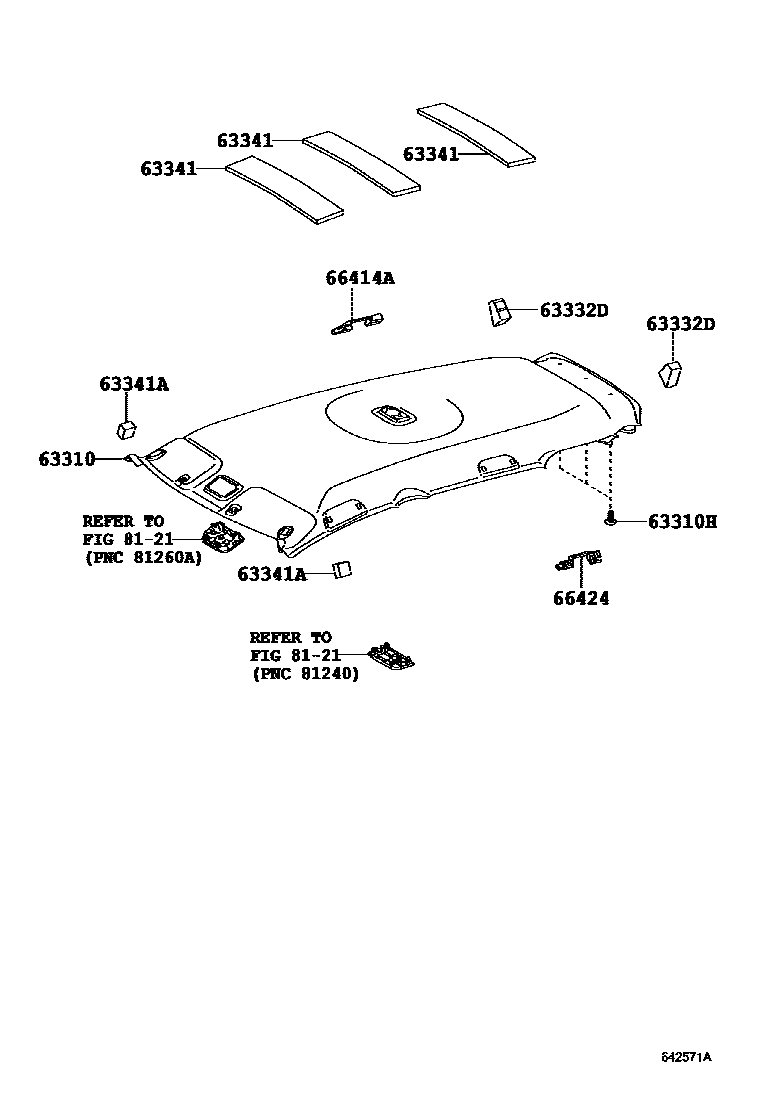

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63310HEADLINING ASSY, ROOF

main63310-52560-B0iSCP100200910-201001

LT.GRAY,TRIM1#

main63313-52050-B0iSCP100201001-201008

LT.GRAY,TRIM1#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B6×3iSCP100200910-201008

GRAY,TRIM1#

63332DPAD, SUN ROOF HEADLINING

main63332-52010×2iSCP100200910-201001

63341PAD, ROOF SILENCER, NO.1

main63341-52150×3iSCP100200910-201001

63341ASILENCER, ROOF, NO.1

main69759-52010×2iSCP100200910-201001

66414ASPACER, SIDE RAIL, REAR RH

main66414-52240iSCP100200910-201001

66424SPACER, SIDE RAIL, REAR LH

main66424-52240iSCP100200910-201001

8121INTERIOR LAMP

→ Go to FIG 81-21

8 parts on this diagram · 2 diagrams in section
