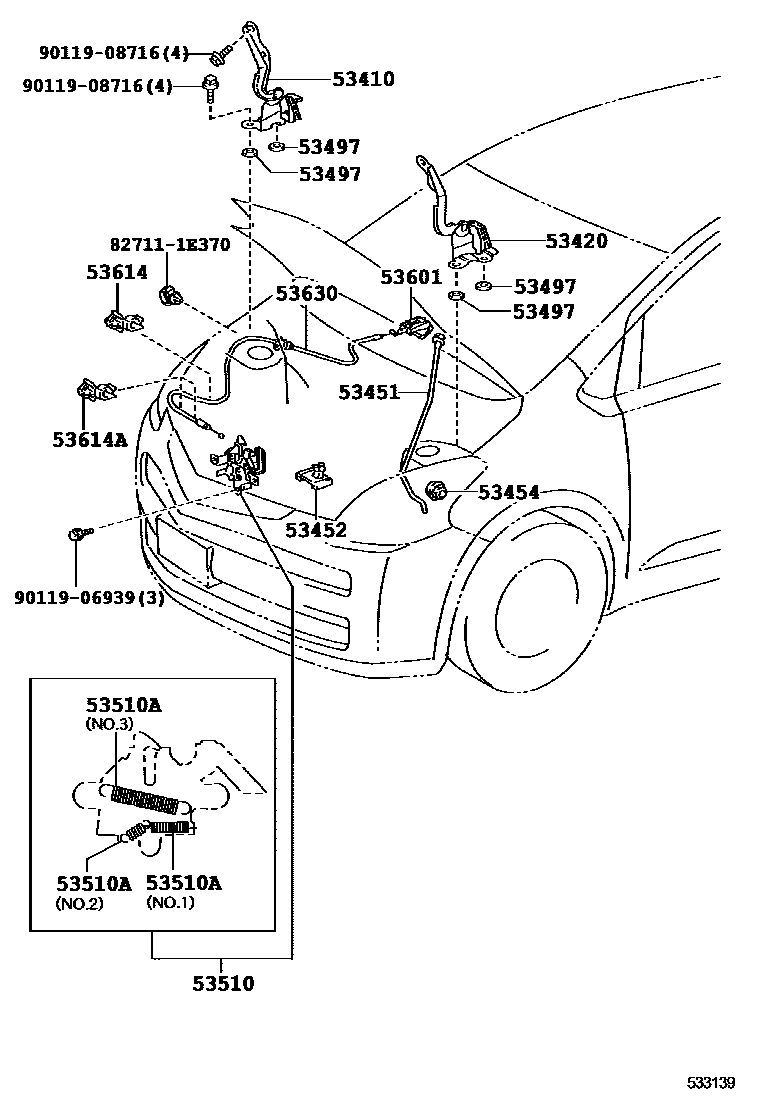

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52211iSCP100200910-201008

53420HINGE ASSY, HOOD, LH

main53420-52211iSCP100200910-201008

53451ROD, HOOD SUPPORT

main53440-52130iSCP100200910

53452HOLDER, HOOD STAY

main53452-52020iSCP100200910

53454CLIP, HOOD SUPPORT ROD

main53454-12040iSCP100200910

53497PAD, HOOD HINGE, NO.1

main53497-42010×4iSCP100200910

T=0.5

53510LOCK ASSY, HOOD

main53510-52340iSCP100200910

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iSCP100200910

WD=0.9,CW=21,NO.1

main90506-12063iSCP100200910

WD=1.2,CW=8.5,NO.2

main90506-16077iSCP100200910

WD=1.6,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iSCP100200910-201008

DK.GRAY,TRIM1#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52020iSCP100200910

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-52010×2iSCP100200910

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52110iSCP100200910

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9011908716

main90119-08716

15 parts on this diagram · 1 diagram in section
