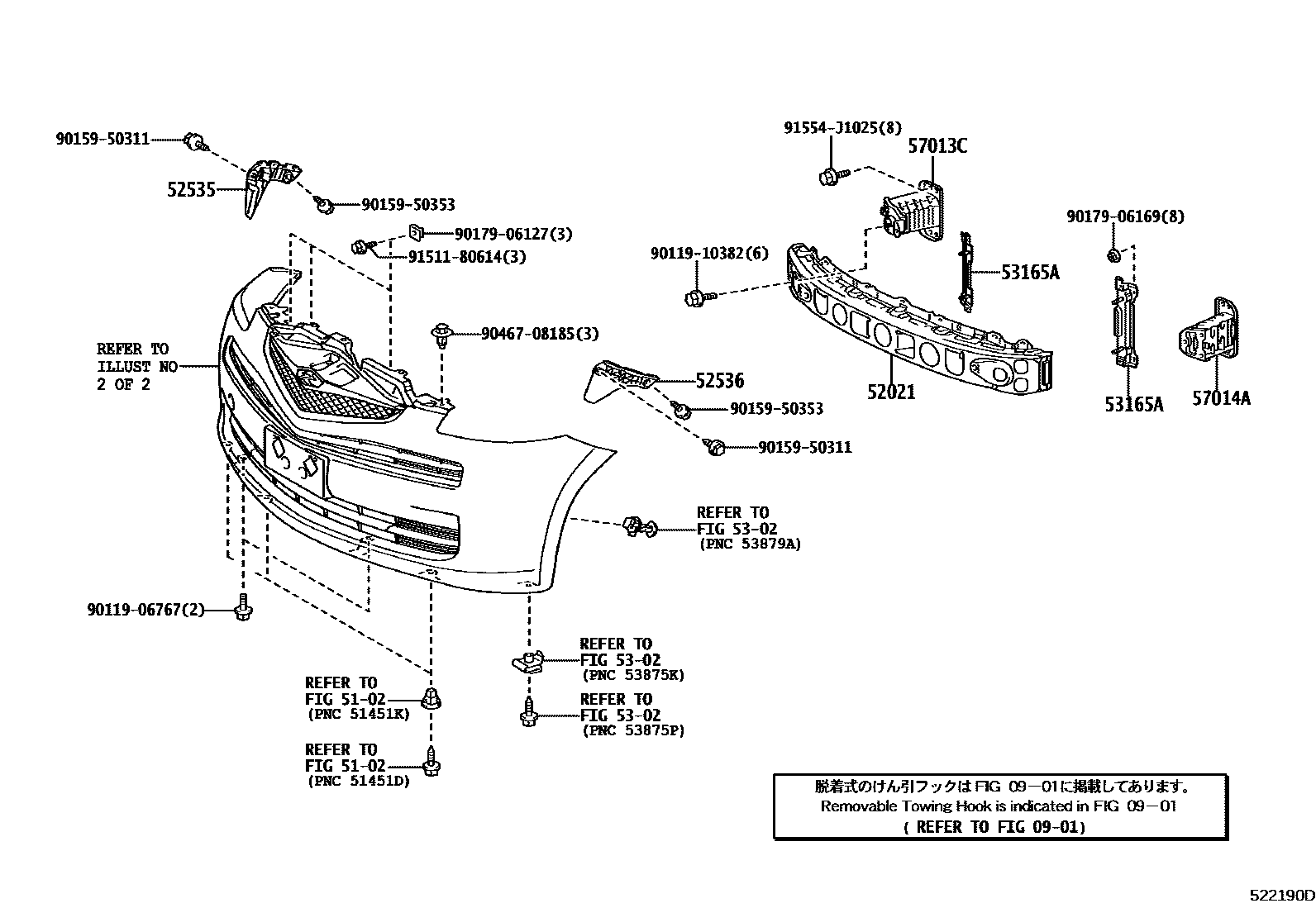

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

0901STANDARD TOOL

→ Go to FIG 09-01

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-52050iSCP100200910-201008

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52080iSCP100200910

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52090iSCP100200910

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52010iSCP100200910-201008

RH

main53165-52020iSCP100200910-201008

LH

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52010iSCP100200910-201008

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52010iSCP100200910-201008

9011906767

main90119-06767

9011910382

main90119-10382

9015950311

main90159-50311

9015950353

main90159-50353

9017906127

main90179-06127

9017906169

main90179-06169

9046708185

main90467-08185

9151180614

main91511-80614

91554J1025

main91554-J1025

18 parts on this diagram · 2 diagrams in section
