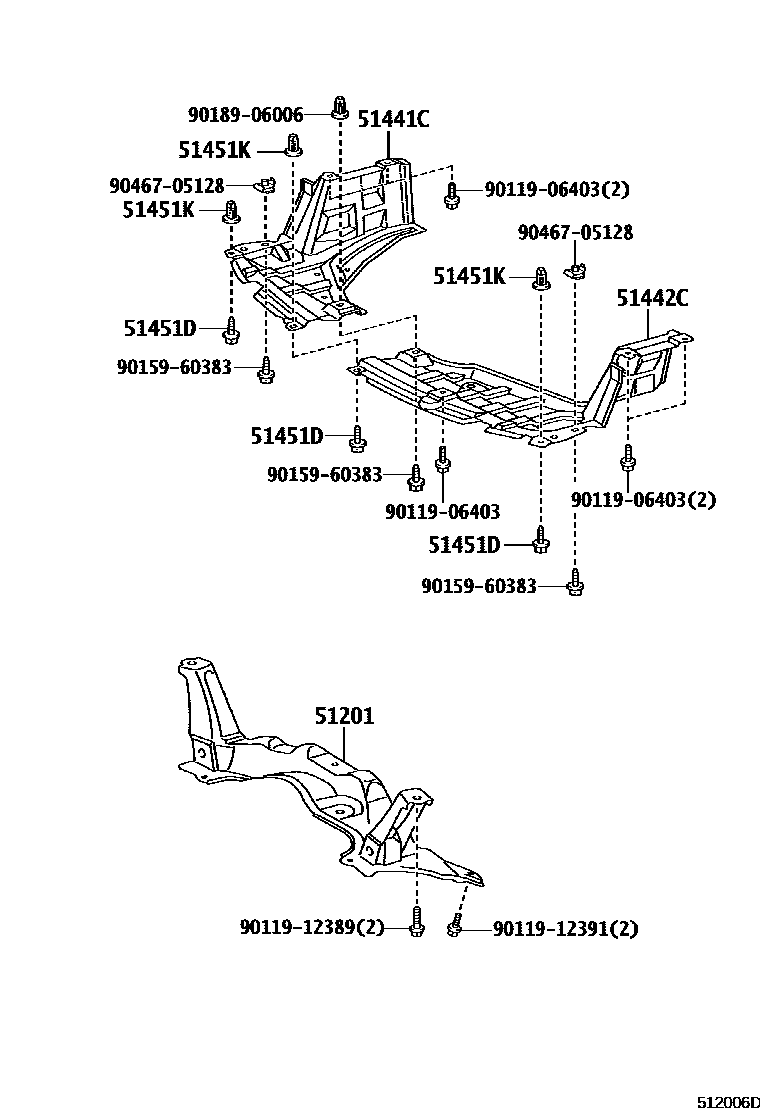

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52080iSCP100200910-201008

51441CCOVER, ENGINE UNDER, RH

main51441-52240iSCP100200910

51442CCOVER, ENGINE UNDER, LH

main51442-52110iSCP100200910

51451DSCREW, NO.1

main90159-60383×3iSCP100200910-201008

51451KGROMMET, SCREW, NO.1

main90189-06076×3iSCP100200910-201008

9011906403

main90119-06403

9011912389

main90119-12389

9011912391

main90119-12391

9015960383

main90159-60383

9018906006

main90189-06006

9046705128

main90467-05128

11 parts on this diagram · 1 diagram in section
