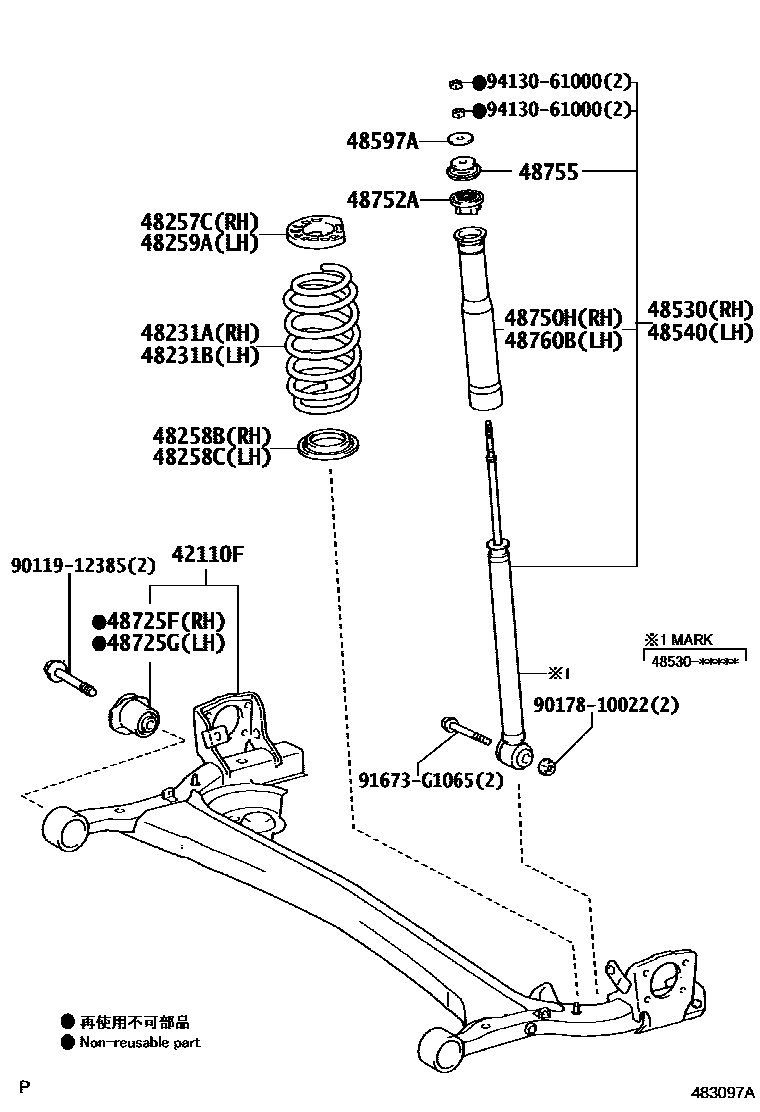

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-52331iSCP100200910-201005

main42110-52332iSCP100201006

48231ASPRING, COIL, REAR RH

main48231-52B10iSCP100200910

48231BSPRING, COIL, REAR LH

main48231-52B10iSCP100200910

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iSCP100200910

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52030iSCP100200910

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52030iSCP100200910

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iSCP100200910

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80310iSCP100200910

MARK 48530-52B80

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80310iSCP100200910

MARK 48530-52B80

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320×2iSCP100200910

48725FBUSH, REAR AXLE CARRIER, RH

main48725-52060iSCP100200910

48725GBUSH, REAR AXLE CARRIER, LH

main48725-52060iSCP100200910

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-52100iSCP100200910

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-52010×2iSCP100200910

48755SUPPORT, REAR SUSPENSION

main48755-52010×2iSCP100200910

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-52100iSCP100200910

9011912385

main90119-12385

9017810022

main90178-10022

91673G1065

main91673-G1065

9413061000

main94130-61000

20 parts on this diagram · 1 diagram in section
