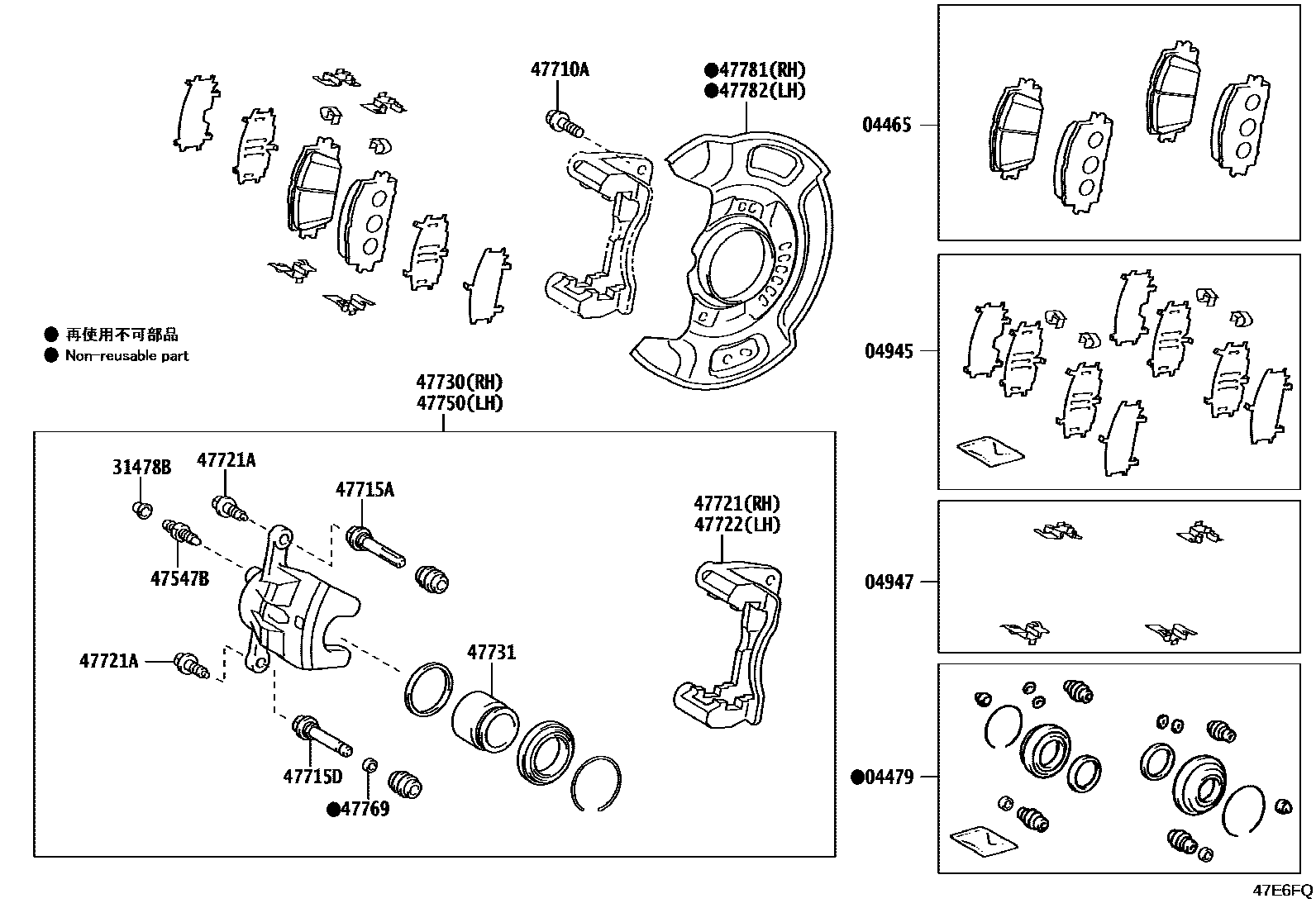

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52240iSCP100200910-201008

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-52100iSCP100200910

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52120iSCP100200910

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iSCP100200910

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iSCP100200910

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iSCP100200910

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iSCP100200910-201008

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iSCP100200910

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iSCP100200910

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52211iSCP100200910

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iSCP100200910

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52211iSCP100200910

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52211iSCP100200910

47731PISTON, FRONT DISC BRAKE

main47731-52210iSCP100200910

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52211iSCP100200910

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iSCP100200910

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52030iSCP100200910-201008

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52030iSCP100200910-201008

18 parts on this diagram · 1 diagram in section
