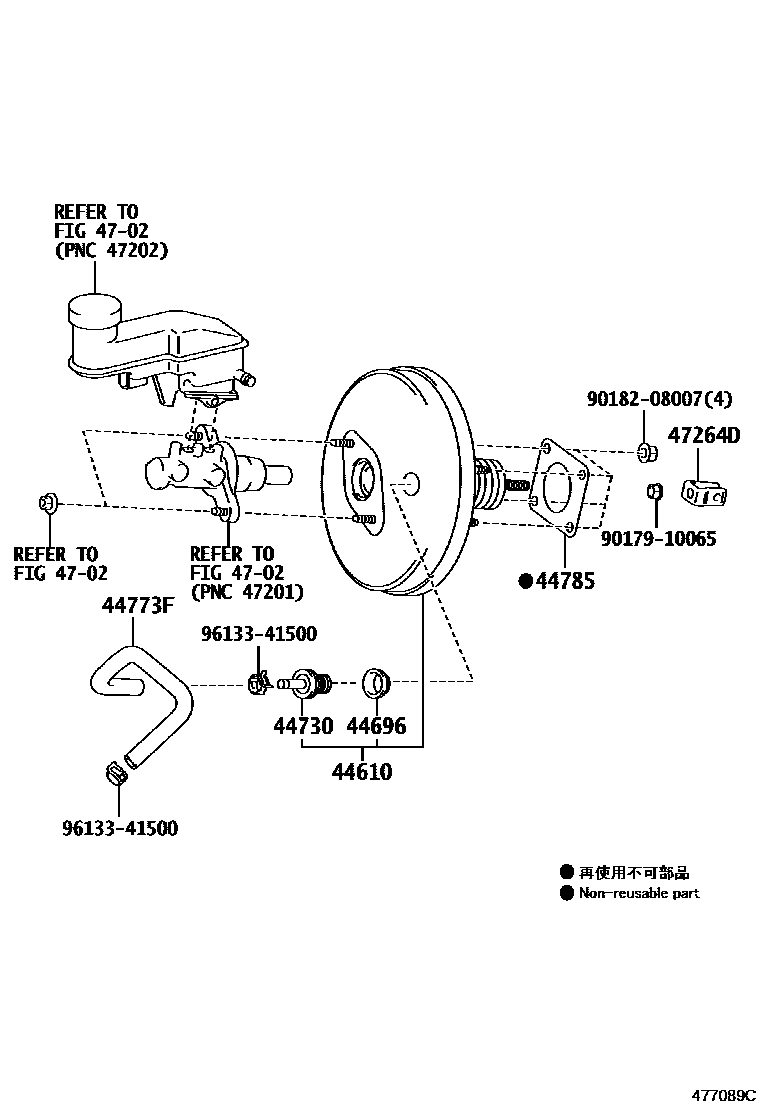

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-52480iSCP100200910-201008

44696GROMMET, CHECK VALVE

main90480-24015iSCP100200910

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iSCP100200910

44773FHOSE, UNION TO CHECK VALVE

main44773-52180iSCP100200910

44785GASKET, BRAKE BOOSTER

main44785-16020iSCP100200910

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iSCP100200910

9017910065

main90179-10065

9018208007

main90182-08007

9613341500

main96133-41500

10 parts on this diagram · 1 diagram in section
