BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

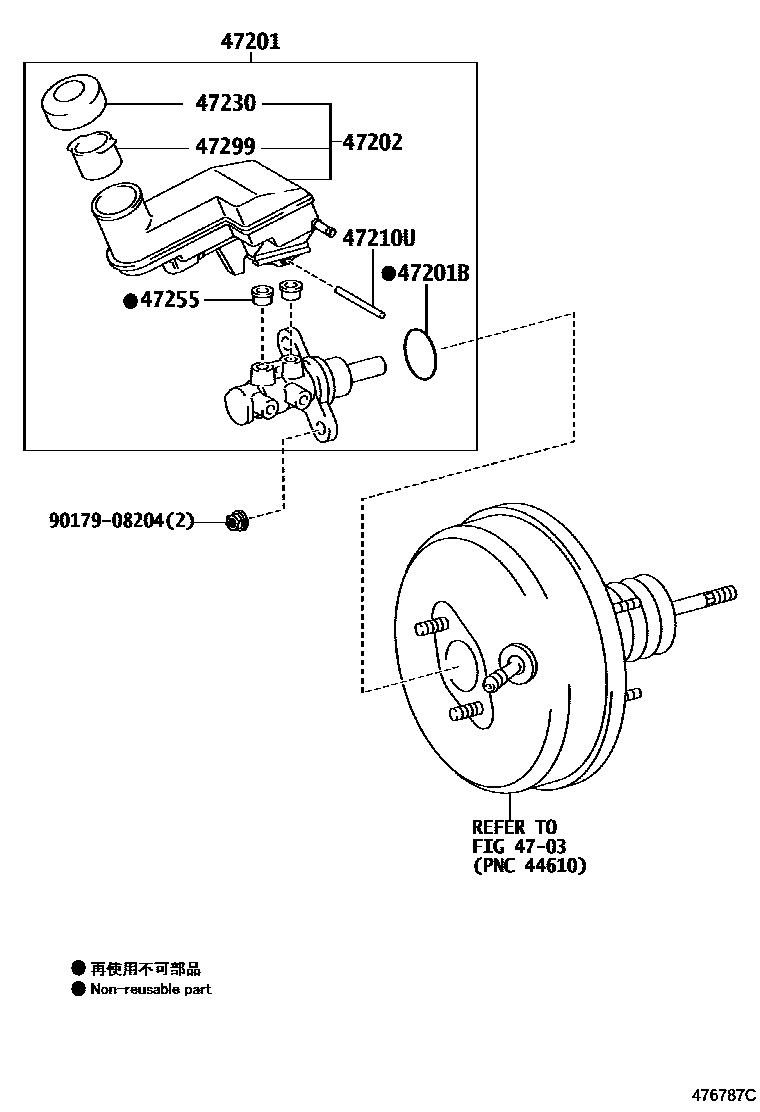

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52250iSCP100200910-201008

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iSCP100200910

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52110iSCP100200910-201008

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iSCP100200910

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33071iSCP100201005

main47230-52030iSCP100200910-201005

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001×2iSCP100200910

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iSCP100200910

9017908204

main90179-08204

9 parts on this diagram · 1 diagram in section
