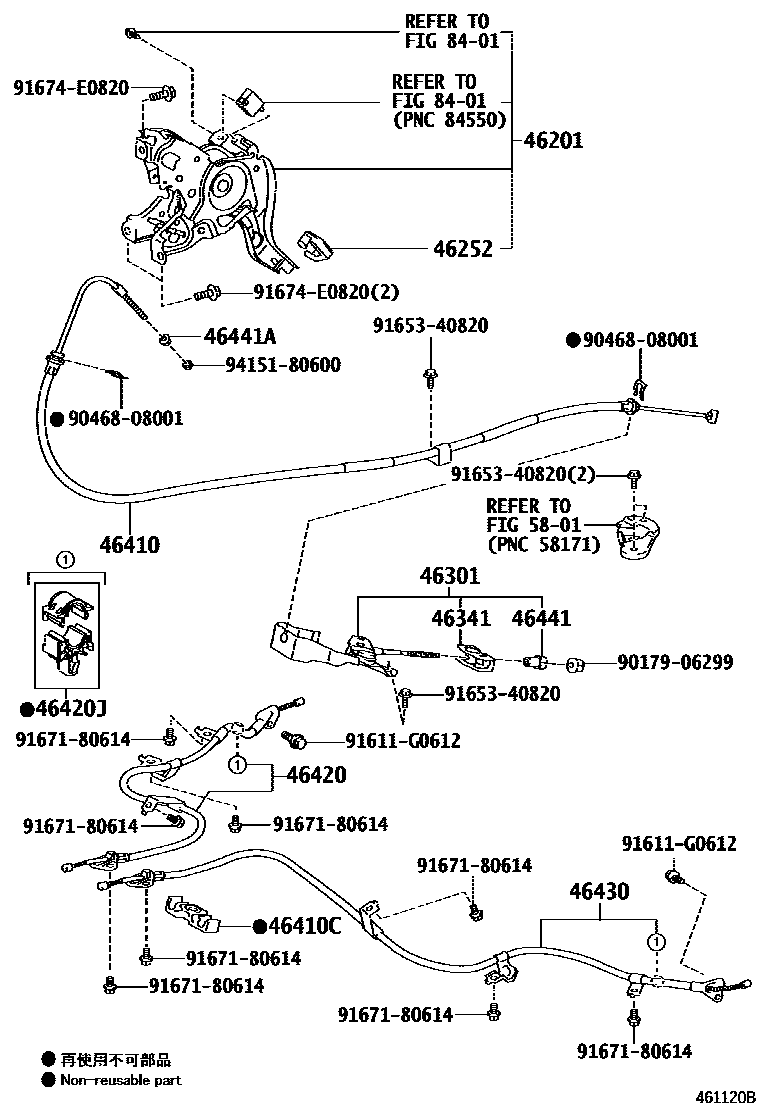

PARKING BRAKE & CABLE

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-52110iSCP100200910

46252PAD, PARKING PEDAL

main46252-52020iSCP100200910

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-52020iSCP100200910-201008

46341EQUALIZER, PARKING BRAKE

main46341-52010iSCP100200910

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-52040iSCP100200910

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-52030iSCP100200910

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52180iSCP100200910-201008

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030×2iSCP100200910

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52180iSCP100200910-201008

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iSCP100200910

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iSCP100200910

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906299

main90179-06299

9046808001

main90468-08001

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

91674E0820

main91674-E0820

9415180600

main94151-80600

20 parts on this diagram · 1 diagram in section
