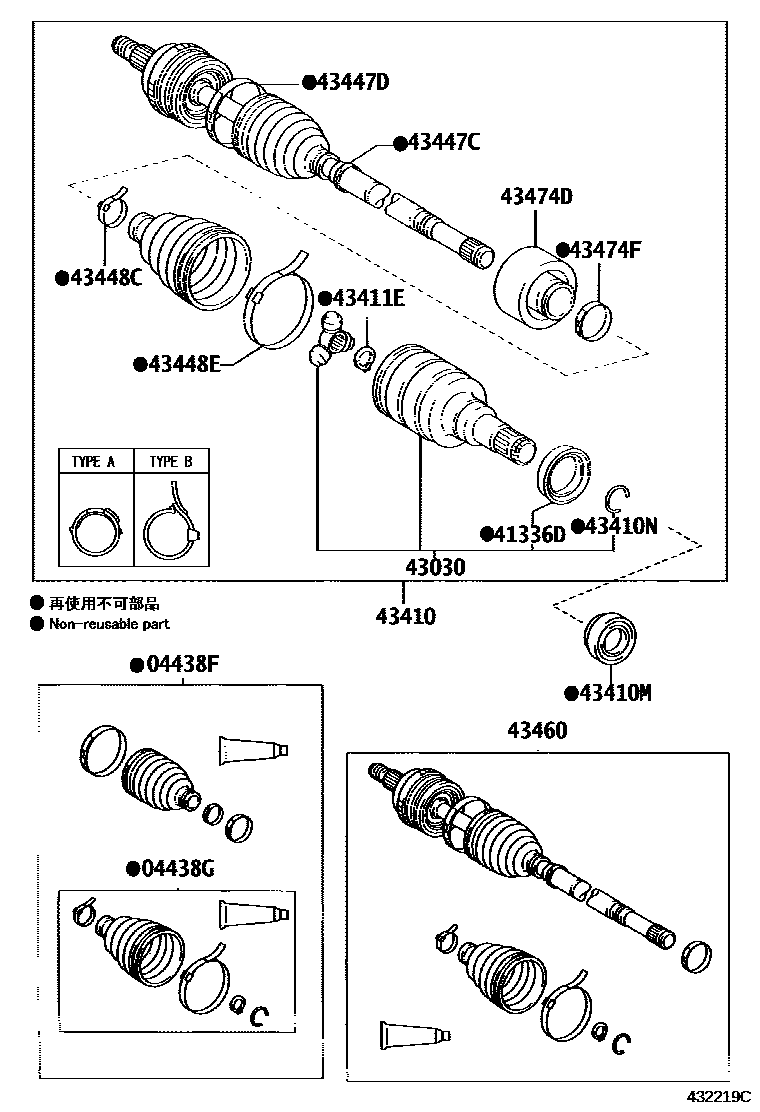

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-52690iSCP100200910

sub04427-52691

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52140iSCP100200910

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iSCP100200910

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-16020iSCP100200910

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52190iSCP100200910-201003

main43410-52191iSCP100201004-201008

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iSCP100200910-201008

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iSCP100200910

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-16020iSCP100200910

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16170iSCP100200910

TYPE A:REFER ILLUST.

main42345-52240iSCP100200910

TYPE B:REFER ILLUST.

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52180iSCP100200910

TYPE A:REFER ILLUST.

main42345-52230iSCP100200910

TYPE B:REFER ILLUST.

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16140iSCP100200910

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16150iSCP100200910

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59325iSCP100200910-201004

main43460-59326iSCP100201004

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52060iSCP100200910

sub43474-52100

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iSCP100200910

15 parts on this diagram · 2 diagrams in section
