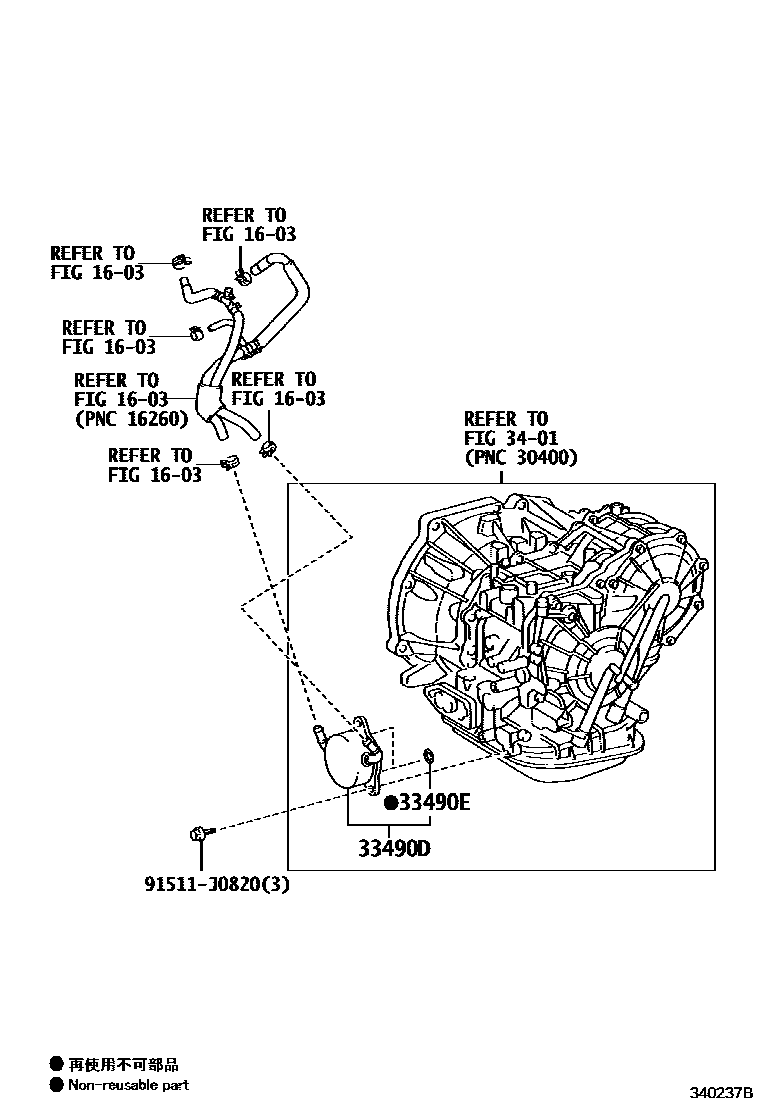

OIL COOLER & TUBE(CVT)

0001 1K210 0002 1K210

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

33490DCOOLER ASSY, TRANSMISSION OIL

main33490-52040iSCP100200910-201006

33490ERING, O (FOR TRANSMISSION OIL COOLER)

main90301-19020×2iSCP100200910-201006

main90301-20012×2iSCP100201006-201008

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

91511J0820

main91511-J0820

5 parts on this diagram · 2 diagrams in section
