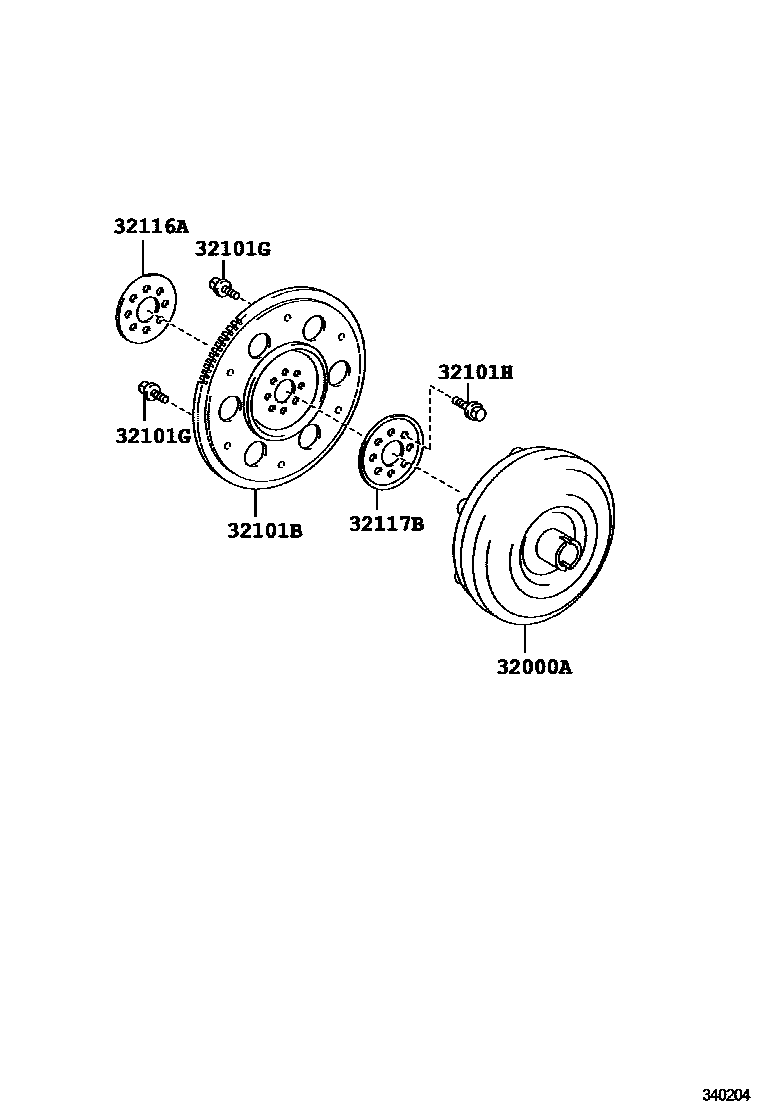

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-52100iSCP100200910-201007

main32000-52101iSCP100201007-201008

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32111-52030iSCP100200910

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iSCP100200910

*8-1.25PX12-8.4

main90119-08498×5iSCP100200910

*8-1.25PX12-8

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iSCP100200910-201008

(J)

main90105-A0022×6iSCP100200910-201003

(L)

32116ASPACER, DRIVE PLATE, FRONT

main32116-52010iSCP100200910

32117BSPACER, DRIVE PLATE, REAR

main32117-52010iSCP100200910

6 parts on this diagram · 1 diagram in section
