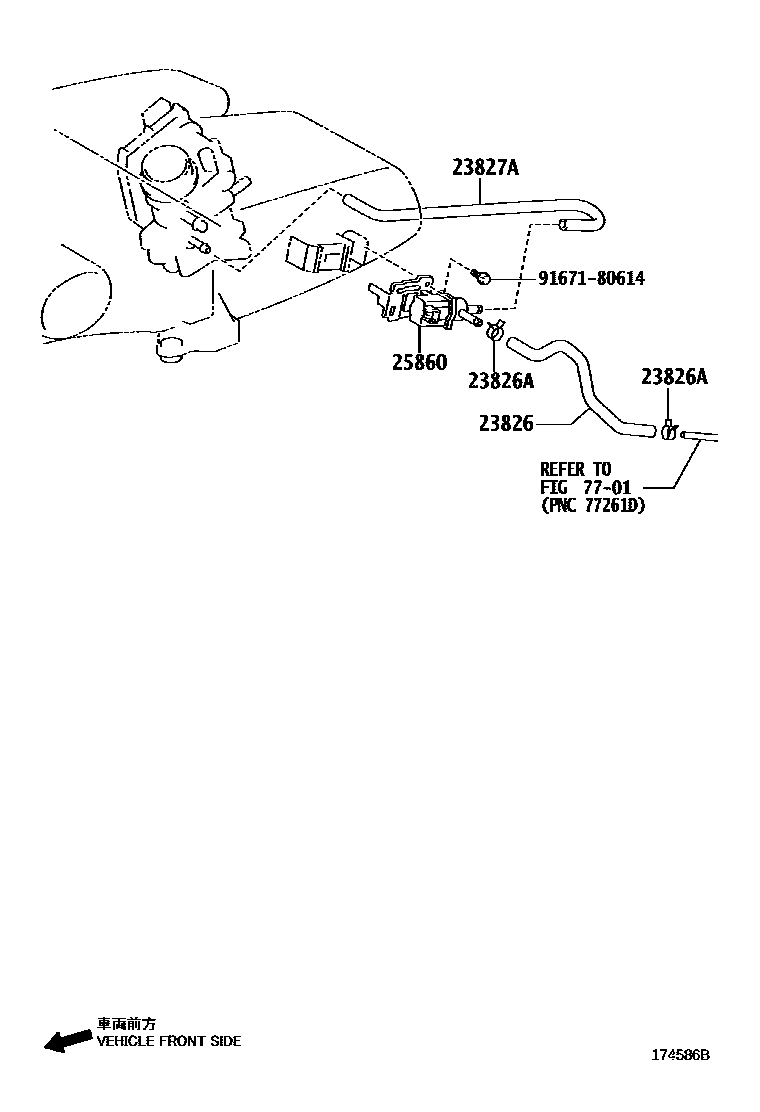

VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-23060i2SZFE..SCP100200910-201008

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i2SZFE..SCP100200910

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-23040i2SZFE..SCP100200910-201008

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-23010i2SZFE..SCP100200910

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9167180614

main91671-80614

6 parts on this diagram · 1 diagram in section
