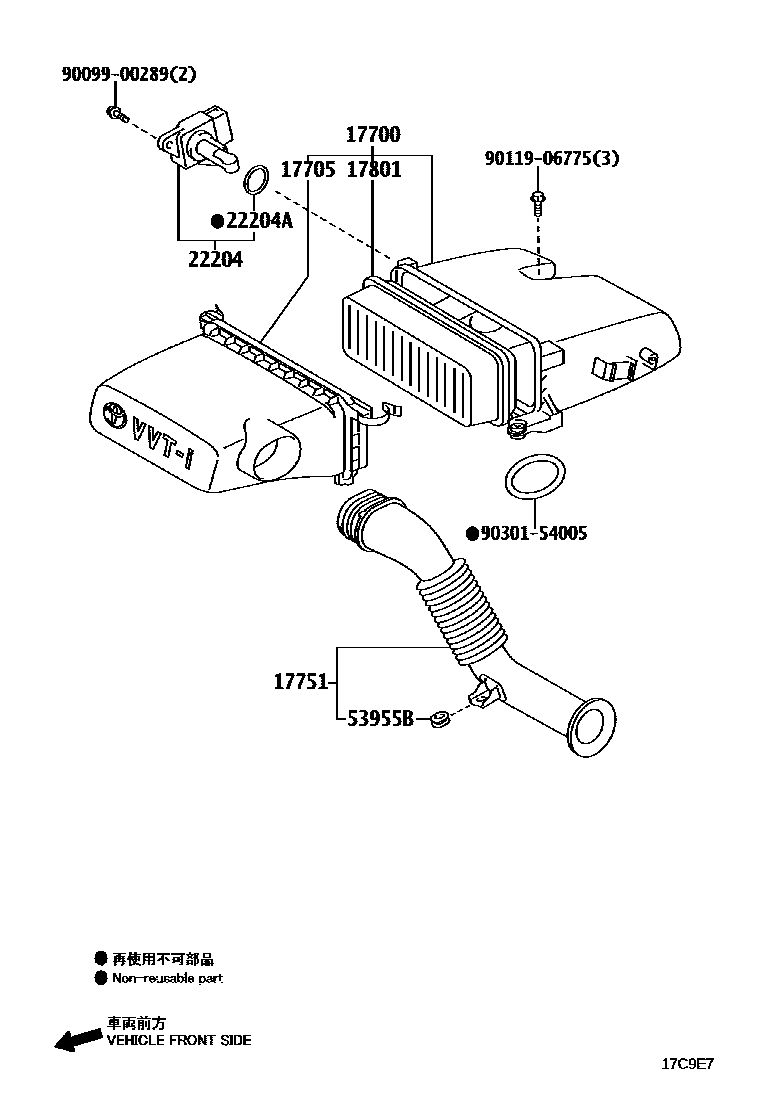

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-23082i2SZFE..SCP100200910

17705CAP SUB-ASSY, AIR CLEANER

main17705-23060i2SZFE..SCP100200910

17751INLET, AIR CLEANER, NO.1

main17751-23040i2SZFE..SCP100200910

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-23030i2SZFE..SCP100200910

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i2SZFE..SCP100200910

(L)

main22204-22010i2SZFE..SCP100200910

(J)

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i2SZFE..SCP100200910

53955BCUSHION, AIR CLEANER INLET, NO.1

main53955-52010iSCP100200910-201008

9009900289

main90099-00289

9011906775

main90119-06775

9030154005

main90301-54005

10 parts on this diagram · 1 diagram in section
