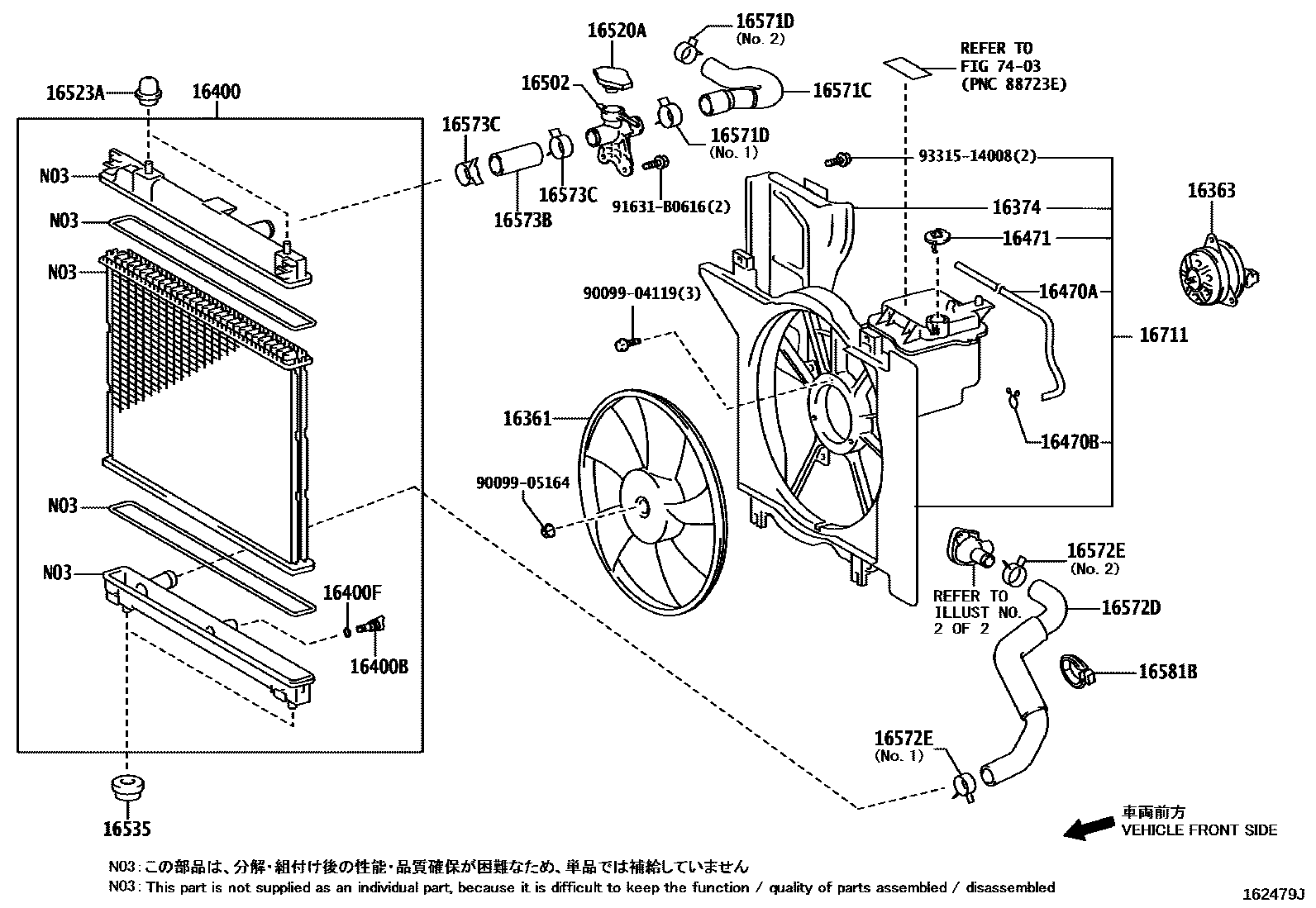

RADIATOR & WATER OUTLET

0001 1 0002 1

16361FAN

main16361-23070i2SZFE..SCP100200910

16363MOTOR, COOLING FAN

main16363-28150i2SZFE..SCP100200910

16374INSULATOR, COOLING FAN MOTOR

main16366-40010i2SZFE..SCP100200910

16400RADIATOR ASSY

main16400-23160i2SZFE..SCP100200910-201008

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i2SZFE..SCP100200910

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2SZFE..SCP100200910

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i2SZFE..SCP100200910

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2SZFE..SCP100200910

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i2SZFE..SCP100200910

16502FILLER SUB-ASSY, WATER

main16502-23010i2SZFE..SCP100200910

16520ACAP SUB-ASSY, WATER FILLER

main16401-31480i2SZFE..SCP100200910-201008

16523ACUSHION, RADIATOR SUPPORT

main16523-21030×2i2SZFE..SCP100200910

16535SUPPORT, RADIATOR, LOWER

main90480-22025×2i2SZFE..SCP100200910

16571CHOSE, RADIATOR, NO.1

main16571-23080i2SZFE..SCP100200910

16571DCLIP, RADIATOR HOSE, NO.1

main90466-30001i2SZFE..SCP100200910

NO.2

main90467-33006i2SZFE..SCP100200910

NO.1

16572DHOSE, RADIATOR, NO.2

main16572-23081i2SZFE..SCP100200910

16572ECLIP, RADIATOR HOSE, NO.2

main90466-30001i2SZFE..SCP100200910

NO.2

main90467-34004i2SZFE..SCP100200910

NO.1

16573BHOSE, RADIATOR, NO.3

main16573-23010i2SZFE..SCP100200910

L=94.2

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006×2i2SZFE..SCP100200910

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-40030i2SZFE..SCP100200910-201008

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main90469-41001i2SZFE..SCP100200910

16711SHROUD, FAN

main16711-23090i2SZFE..SCP100200910

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9009904119

main90099-04119

9009905164

main90099-05164

91631B0616

main91631-B0616

9331514008

main93315-14008

27 parts on this diagram · 2 diagrams in section
