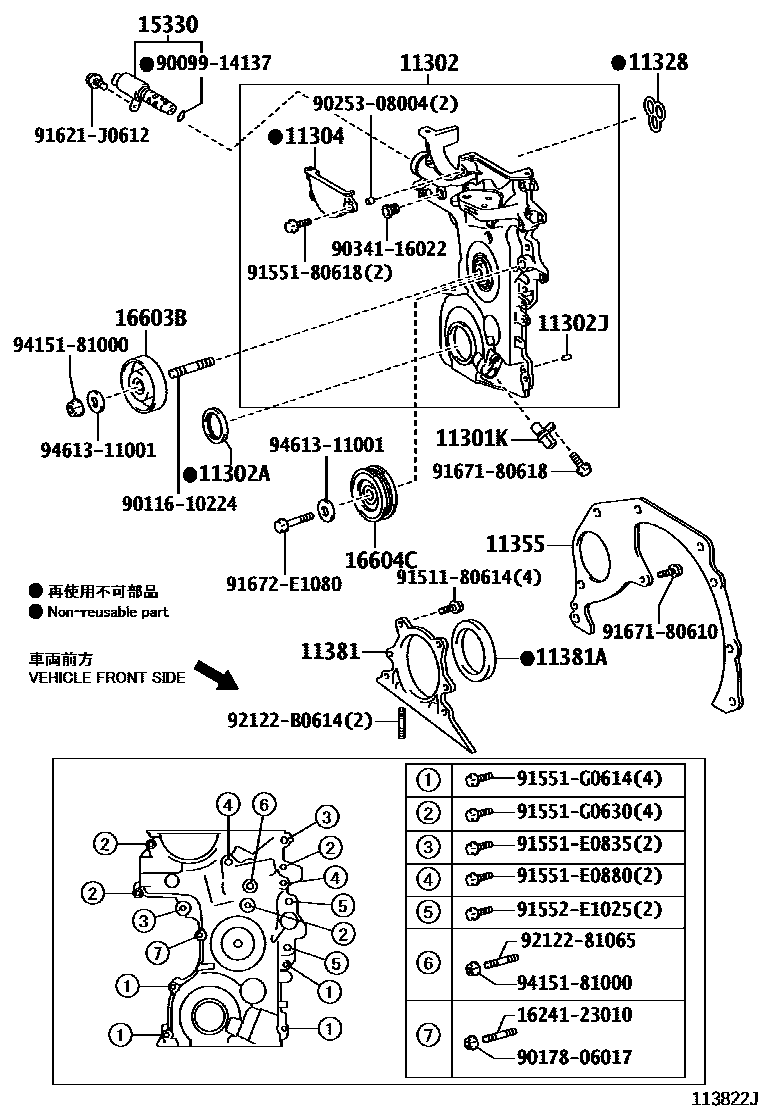

TIMING GEAR COVER & REAR END PLATE

11301KSENSOR, CRANK POSITION

main90919-05043i2SZFE..SCP100200910

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-23053i2SZFE..SCP100200910

sub11310-23054

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-35040i2SZFE..SCP100200910

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-06030i2SZFE..SCP100200910

11304COVER, TIMING CHAIN OR BELT, NO.2

main11322-23010i2SZFE..SCP100200910

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-23020i2SZFE..SCP100200910

11355PLATE, REAR END

main11355-23011i2SZFE..SCP100200910

11381RETAINER, ENGINE REAR OIL SEAL

main11381-23011i2SZFE..SCP100200910

11381ASEAL, ENGINE REAR OIL

main90311-73003i2SZFE..SCP100200910

15330VALVE ASSY, CAM TIMING OIL CONTROL

main15330-23010i2SZFE..SCP100200910

16603BPULLEY SUB-ASSY, IDLER

main16603-23022i2SZFE..SCP100200910

16604CPULLEY SUB-ASSY, IDLER, NO.2

main16604-23011i2SZFE..SCP100200910

1624123010BOLT, STUD(FOR WATER PUMP COUPLING)

main16241-23010

9009914137

main90099-14137

9011610224

main90116-10224

9017806017

main90178-06017

9025308004

main90253-08004

9034116022

main90341-16022

9151180614

main91511-80614

9155180618

main91551-80618

91551E0835

main91551-E0835

91551E0880

main91551-E0880

91551G0614

main91551-G0614

91551G0630

main91551-G0630

91552E1025

main91552-E1025

91621J0612

main91621-J0612

9167180610

main91671-80610

9167180618

main91671-80618

91672E1080

main91672-E1080

9212281065

main92122-81065

92122B0614

main92122-B0614

9415181000

main94151-81000

9461311001

main94613-11001

33 parts on this diagram · 1 diagram in section
