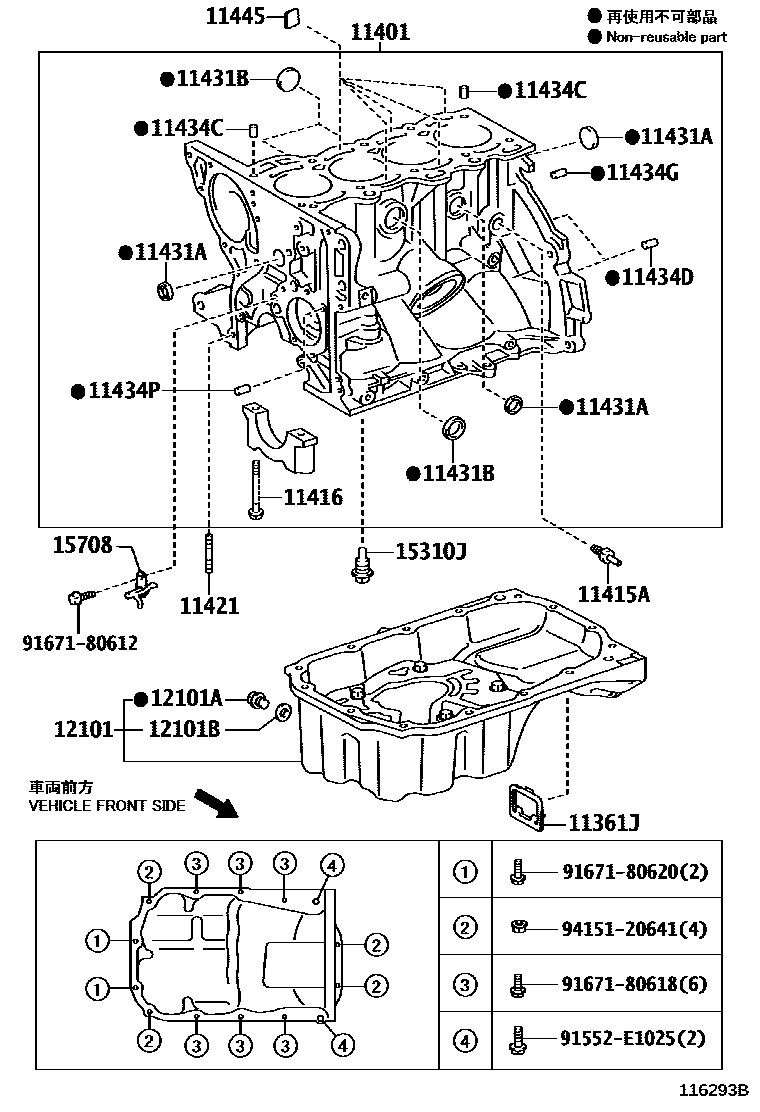

CYLINDER BLOCK

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-23020i2SZFE..SCP100200910

11401BLOCK SUB-ASSY, CYLINDER

main11401-23043i2SZFE..SCP100200910

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09116i2SZFE..SCP100200910

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10492×10i2SZFE..SCP100200910

11421BOLT, STUD(FOR OIL PAN)

main90116-06145×2i2SZFE..SCP100200910

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-62500×3i2SZFE..SCP100200910

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-63000×3i2SZFE..SCP100200910

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-12002×2i2SZFE..SCP100200910

L=12,OD=12

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06030×2i2SZFE..SCP100200910

L=12,OD=6

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10214×2i2SZFE..SCP100200910

11434PPIN, STRAIGHT(FOR OIL PUMP SET)

main90250-06030i2SZFE..SCP100200910

L=12,OD=6

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-23010×5i2SZFE..SCP100200910

12101PAN SUB-ASSY, OIL

main12101-23052i2SZFE..SCP100200910

12101APLUG(FOR OIL PAN DRAIN)

main90341-12032i2SZFE..SCP100200910

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2SZFE..SCP100200910

15310JREGULATOR ASSY, OIL

main15310-23020i2SZFE..SCP100200910

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-23020i2SZFE..SCP100200910

91552E1025

main91552-E1025

9167180612

main91671-80612

9167180618

main91671-80618

9167180620

main91671-80620

9415120641

main94151-20641

22 parts on this diagram · 1 diagram in section
