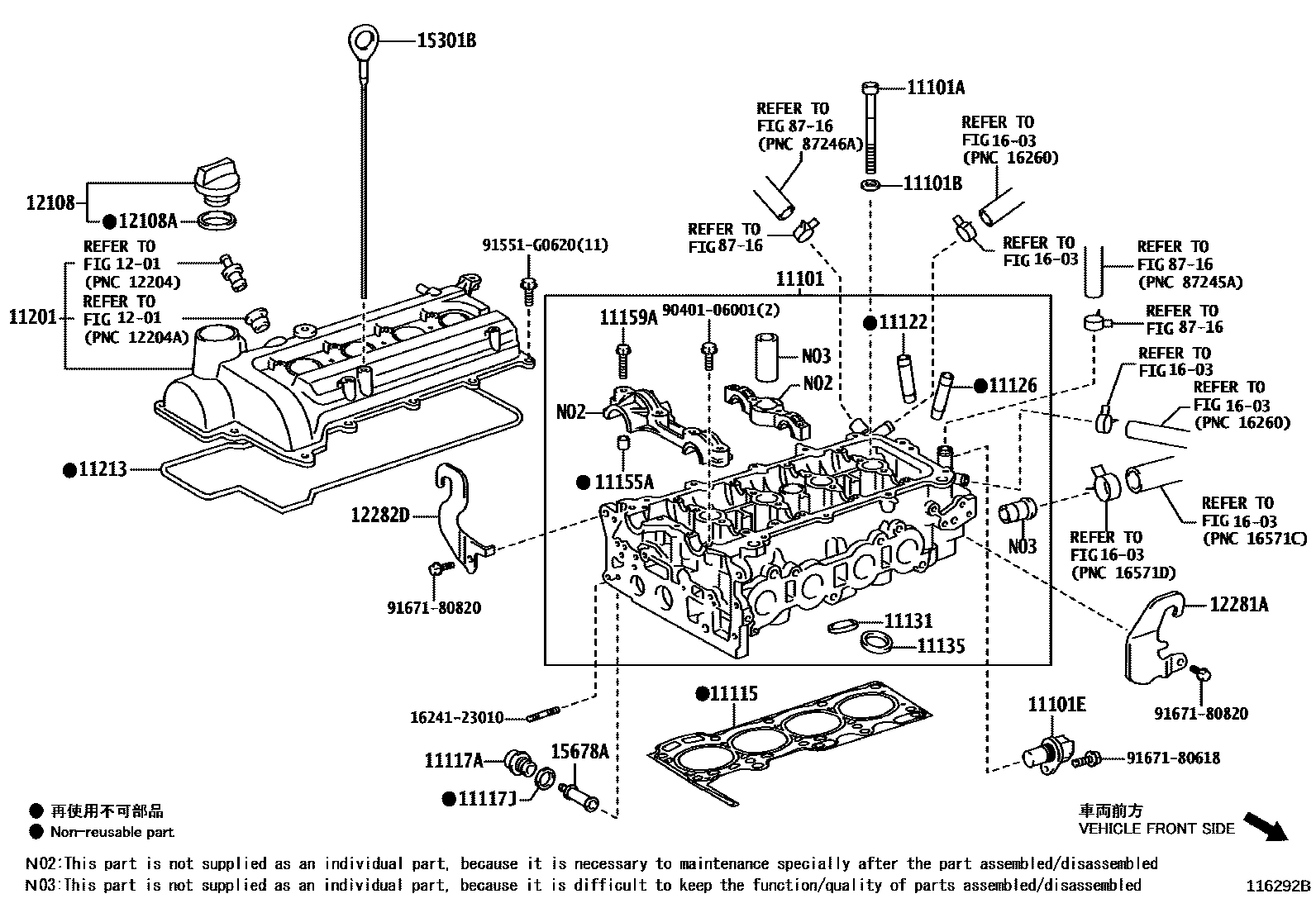

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11115GASKET, CYLINDER HEAD
T=0.41
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
1201VENTILATION HOSE
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
15301BGAGE SUB-ASSY, OIL LEVEL
15678AFILTER, OIL CONTROL VALVE
1603RADIATOR & WATER OUTLET
8716HEATING & AIR CONDITIONING - WATER PIPING
1624123010BOLT, STUD(FOR WATER PUMP COUPLING)
main16241-23010
9040106001
main90401-06001
91551G0620
main91551-G0620
9167180618
main91671-80618
9167180820
main91671-80820
29 parts on this diagram · 1 diagram in section
