ENGINE OVERHAUL GASKET KIT

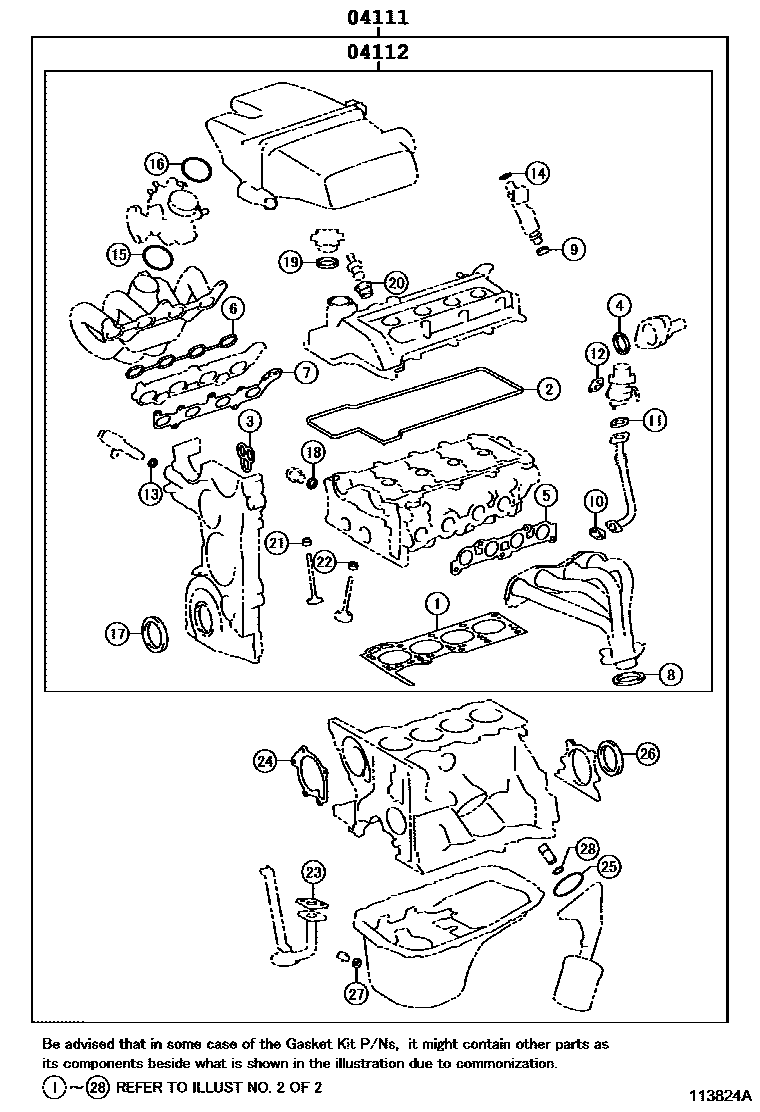

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-23110i200910-201006
main04111-23131i201006
04112GASKET KIT, ENGINE VALVE GRIND
main04112-23110i200910-201006
main04112-23131i201006

2 parts on this diagram · 2 diagrams in section
