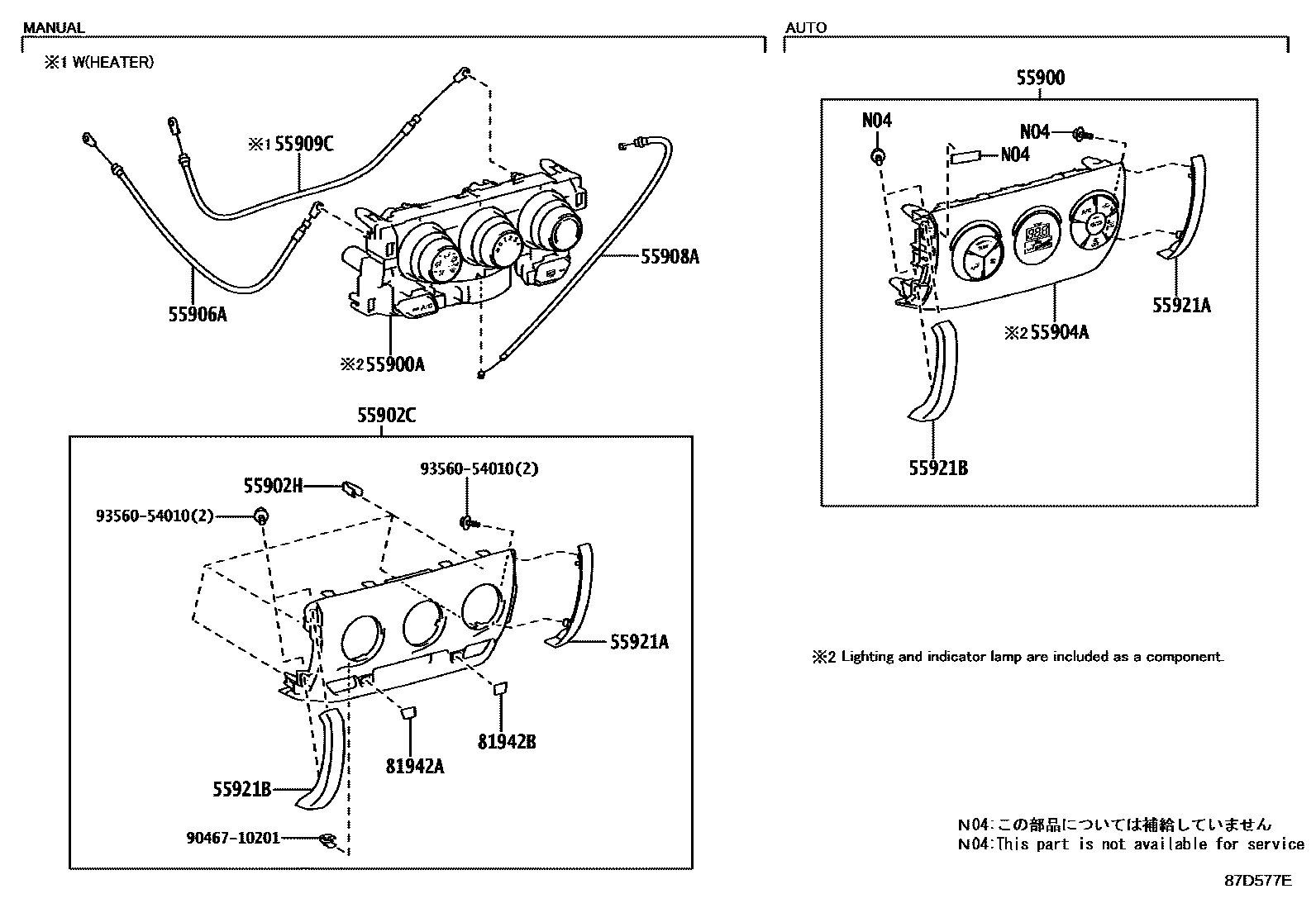

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0003 1HEATER CONTROL 0005 1MANUAL HEATER CONTROL 0008 1MANUAL HEATER CONTROL-MAKER O0011 1MANUAL HEATER CONTROL-DEALER 0012 1AUTO HEATER CONTROL 0017 1AIR DUCT 0019 1AIR DUCT 0020 1AIR DUCT 0021 1AIR DUCT 0024 1AIR DUCT 0027 1SENSOR 0029 1SENSOR 0031 1SENSOR 0034 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-0D490iNSP150,151..GCC..G201403-201708

G-HIGH PACKAGE&FRONT AIR CONDITIONER-WITH(AUTO)

main55900-0D500iNCP150..4FC..IDN..G201403-201712

BRUNEI SPEC

main55900-0DD70iNSP150..CVT..GEN..G201710-202302

main55900-0DD80iNSP151..SA..V201710-202009

main55900-0DD81iNSP151..V..A202009-202207

main55900-0DD90iNSP150..CVT..GEN..G201710-202302

AUDIO-RADIOLESS 6SPEAKER

main55900-0DF00iNSP151..PH201710-202207

main55900-0DF30iNSP152201709-201910

main55900-0DF40iNSP152..HTWCB201802-202009

main55900-0DF40iNSP151..CVT..G..C201802

BRUNEI SPEC

main55900-0DF50iNSP151..GEN..G201806-201910

main55900-0DF70iNSP150..R..H201806-201910

XL-PLUS PACKAGE

sub55900-0DF71

main55900-0DF90iNSP152202009-202302

main55900-0DJ20iNSP151..(G,V)..B201904-202011

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-0D630iNSP151..G..C201403-201712

BRUNEI SPEC

main55900-0D630iNCP150..G..C201403-201609

SINGAPORE & BRUNEI SPEC

main55900-0D630iNCP150..G..C201403-201609

SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main55900-0D650iNCP150..R..C201403-201712

main55900-0D660iNCP15#..GCC..G201403-201708

FRONT AIR CONDITIONER-WITH(AUTO)

main55900-0D660iNCP15#..GCC..G201403-201606

G-HIGH PACKAGE&FRONT AIR CONDITIONER-WITH(AUTO)

main55900-0D700iNCP15#..PH201403-201708

main55900-0D710iNCP151..RHD201403-201708

main55900-0D720iNSP152201310-201708

G PACKAGE

main55900-0D750iNSP151..TAIW..(G,V)201409-201802

FRONT AIR CONDITIONER-WITH(AUTO)

main55900-0D750iNCP150..TAIW..G201409-201604

S-HI PACKAGE(FOR TAIWAN)&FRONT AIR CONDITIONER-WITH(AUTO)

main55900-0D750iNCP150..V..A201409-201604

G-HI PACKAGE(FOR TAIWAN)&FRONT AIR CONDITIONER-WITH(AUTO)

main55900-0DA50iNSP151..SA..D201710-202207

main55900-0DA60iNSP150..RHD201710-202108

main55900-0DA70iNSP151..SA..R201710-202207

main55900-0DB00iNSP151..GEN..D..A201710-202302

main55900-0DB20iNSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN)..(G,R)..A201710-202302

main55900-0DB70iNSP151..CVT..R..C202109

main55900-0DB70iNSP151..CVT..G..C201802

BRUNEI SPEC

main55900-0DC30iNSP151..F201804-202101

main55900-0DE30iNSP150,151..D..H201806-201910

main55900-0DG30iNSP151..5F..R..C201802-202109

main55900-0DG50iNSP150..CVT..PH201710-202207

main55900-0DG80iNSP150,151..R..H201806-201910

main55900-0DJ00iNSP151..(D,R)..B201904-202011

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-0D250iNSP152201310-201708

G PACKAGE

main55902-0D250iNCP151..D,R;NCP151..5F..G;NCP151..GCC..G;NCP150..GCC,GEN,PH201310-201606

main55902-0D280iNSP151..TAIW..(G,V)201409-201802

FRONT AIR CONDITIONER-WITH(AUTO)

main55902-0D300iNSP151..CVT..G..C201403-201712

BRUNEI SPEC

main55902-0D300iNCP150..(G,R)..C201403-201609

SINGAPORE & BRUNEI SPEC

55902HCLIP(FOR AIR CONDITIONER PANEL)

main90467-10203iNCP150..TAIW201310-201802

main90467-10203iNSP150..5F..G;NSP151..VN..R;NSP150..GCC..G;NSP150,152..D,R;NSP151..GCC,GEN,PH201310-201708

G PACKAGE

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-0D040iNCP151..4FC..(GEN,VN)..G201403-201708

G-HIGH PACKAGE&FRONT AIR CONDITIONER-WITH(AUTO)

main55904-0D050iNSP151..V..C201403-201712

BRUNEI SPEC

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0D120iNCP151..GCC..G;NCP151..LHD..(D,R);NCP150..GCC,GEN,PH201403-201708

LATIN AMERICA SPEC&HEATER CONTROL PANEL-MANUAL AIR CONDITIONER(DOP)

main55906-0D120iNSP151..VN..R;NSP150..GCC..G;NSP151..GCC,GEN,PH;NSP150..LHD..(D,R)201403-201802

FRONT AIR CONDITIONER-WITH(AUTO)

main55906-0D120iNCP151..GCC..G;NCP151..LHD..(D,R);NCP150..GCC,GEN,PH201403-201606

G-HIGH PACKAGE&FRONT AIR CONDITIONER-WITH(AUTO)

main55906-0D130iNSP150,152..RHD201310-201708

G PACKAGE

main55906-0D130iNCP150..(G,R)..C201310-201712

main55906-0D180iNSP151..G..C;NSP151..CVT..(D,R)..(B,C)201710-202207

main55906-0D190iNSP151..VN..R;NSP150..GCC..G;NSP151..(GCC,GEN)..A;NSP150..LHD..(GCC,GEN)..R201710-202302

main55906-0D231iNSP150,151..(D,R)..H201806-201910

sub55906-0D240

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-0D140iNSP151..TAIW201310-201802

main55908-0D140iNSP150..5F..G;NSP151..VN..R;NSP150..GCC..G;NSP150,152..D,R;NSP151..GCC,GEN,PH201310-201708

G PACKAGE

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0D090iNSP151..SA..(D,R)201710-202207

main55909-0D110iNCP15#..GCC..G201403-201606

G-HIGH PACKAGE&FRONT AIR CONDITIONER-WITH(AUTO)

main55909-0D110iNCP15#..GCC..G201403-201708

LATIN AMERICA SPEC&HEATER CONTROL PANEL-MANUAL AIR CONDITIONER(DOP)

main55909-0D110iNCP15#..GCC..G201403-201802

FRONT AIR CONDITIONER-WITH(AUTO)

main55909-0D120iNSP150..RHD201403-201708

main55909-0D170iNSP151..F201710-202302

main55909-0D201iNSP150,151..(D,R)..H201806-201910

sub55909-0D210

55921ARETAINER, HEATER CONTROL

main55902-0D680iNCP151..4FC..(GEN,VN)..G201403-201708

G-HIGH PACKAGE&FRONT AIR CONDITIONER-WITH(AUTO)

main55902-0D680iNCP150..V..C201403-201712

BRUNEI SPEC

main55921-0D020iNSP152201310-201708

G PACKAGE

main55921-0D020iNCP151..D,R;NCP151..5F..G;NCP151..GCC..G;NCP150..GCC,GEN,PH201310-201606

main55921-0D040iNCP150..TAIW..(G,V)201409-201802

FRONT AIR CONDITIONER-WITH(AUTO)

main55921-0D060iNCP150..4FC..IDN..G201403-201609

SINGAPORE & BRUNEI SPEC

main55921-0D060iNCP150..(G,R)..C201403-201712

BRUNEI SPEC

55921BRETAINER, HEATER CONTROL

main55902-0D670iNCP150..V..C201403-201712

BRUNEI SPEC

main55902-0D670iNSP150,151..GCC..G201403-201708

G-HIGH PACKAGE&FRONT AIR CONDITIONER-WITH(AUTO)

main55922-0D020iNSP152201310-201708

G PACKAGE

main55922-0D020iNCP151..D,R;NCP151..5F..G;NCP151..GCC..G;NCP150..GCC,GEN,PH201310-201606

main55922-0D040iNCP150..TAIW201409-201802

FRONT AIR CONDITIONER-WITH(AUTO)

main55922-0D060iNCP150..4FC..IDN..G201403-201609

SINGAPORE & BRUNEI SPEC

main55922-0D060iNCP150..(G,R)..C201403-201712

BRUNEI SPEC

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-0D610iNSP152201310-201708

G PACKAGE

main81942-0D610iNCP151..D,R;NCP151..5F..G;NCP151..GCC..G;NCP150..GCC,GEN,PH201310-201606

main81942-0D670iNSP151..TAIW..(G,V)201409-201802

FRONT AIR CONDITIONER-WITH(AUTO)

main81942-0D750iNCP150..(G,R)..C201403-201609

SINGAPORE & BRUNEI SPEC

main81942-0D750iNSP151..(G,R)..C201403-201712

BRUNEI SPEC

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-0D620iNSP150..5F..G;NSP151..VN..R;NSP150..GCC..G;NSP150,152..D,R;NSP151..GCC,GEN,PH201310-201708

G PACKAGE

main81942-0D620iNCP151..D,R;NCP151..5F..G;NCP151..GCC..G;NCP150..GCC,GEN,PH201310-201606

main81942-0D680iNCP150..TAIW201409-201802

FRONT AIR CONDITIONER-WITH(AUTO)

main81942-0D760iNCP150..4FC..IDN..G201403-201712

BRUNEI SPEC

main81942-0D760iNCP150..(G,R)..C201403-201609

SINGAPORE & BRUNEI SPEC

9046710201

main90467-10201

9356054010

main93560-54010

14 parts on this diagram · 15 diagrams in section
