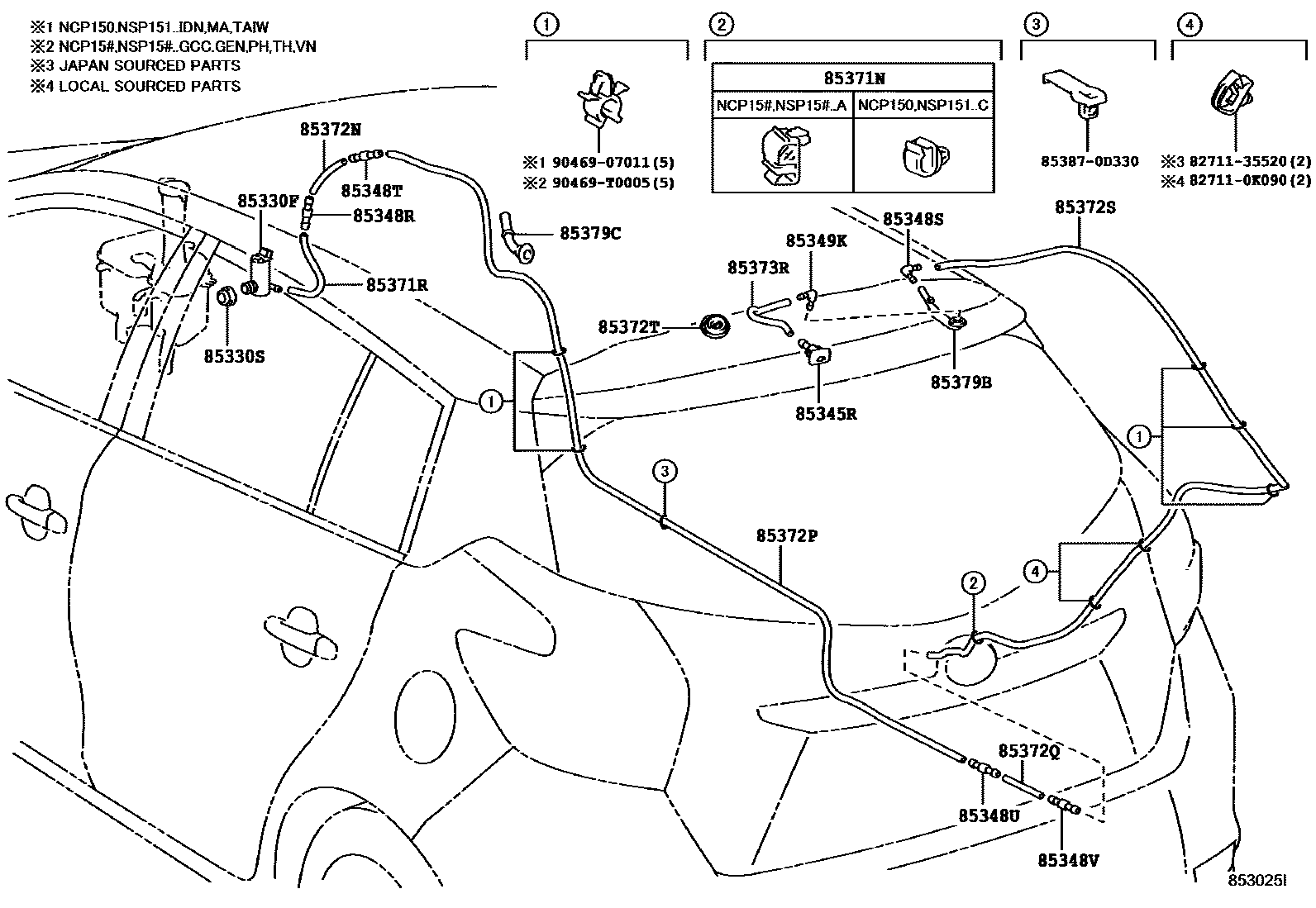

REAR WASHER

0001 1 0006 1 0010 1

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-0D170iNCP150..TAIW201310-201604

main85330-0D171iNSP151..F201709-202101

main85330-0D201iNSP151..C201802-202102

main85330-0D202iNSP151..(G,V)..C;NSP151..CVT..R..C202103

85330SBUSH, REAR WASHER JAR

main90068-32006iNSP151..TAIW201409-201802

main90099-32089iNSP151..PH,SA;NSP150..CVT..PH201709-202207

85345RNOZZLE, REAR WASHER

main85391-0D060iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201709-202108

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNSP151..5F..R..C201802-202108

main85375-02330iNSP150..RHD;NSP150..5F..PH201709-202108

main85375-0E140iNCP150..TAIW201409-201604

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNSP151..C201403-201712

main85377-0D040iNSP15#..GCC,GEN,PH,TH,VN201310-201708

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iNSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)201802

main85375-02330iNSP150..RHD;NSP150..5F..PH201709-202108

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iNSP151..C201403-201712

main85375-02330iNSP151..PH,SA;NSP150..CVT..PH201709-202207

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122iNSP151..C201403-201712

main85375-02330iNCP15#..GCC,GEN,PH,VN201310-201606

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNSP151..TAIW201403-201802

main85377-0D040iNSP15#..GCC,GEN,PH,TH,VN201310-201708

85371NCLAMP, REAR WASHER HOSE

main85371-52120iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main85371-52130iNSP151..C201403-201712

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90068-59110iNCP150..TAIW201409-201604

L=190

main90068-59129iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

L=160

main90068-59137iNSP151..(G,V)..C;NSP151..CVT..R..C201802

L=160

main90099-33080iNSP150,151..H201806-201910

L=1450(*H,L=40)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33107iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

L=50

main90068-33120iNSP151..C201403-201712

L=50

main90099-33299iNSP151..F201804-202101

L=1000(*H,L=50)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-59127iNCP150..TAIW201310-201604

L=2320

main90068-59135iNCP150..C201403-201609

L=2320

main90068-59154iNSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)201802

L=2405

main90068-59165iNSP150..RHD;NSP150..5F..PH201709-202108

L=2384

main90446-07001iNSP151..F201804-202101

L=2450

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90068-33107iNCP150..TAIW201310-201604

L=50

main90068-33120iNSP151..C201403-201712

L=50

main90068-59164iNSP151..PH,SA;NSP150..CVT..PH201709-202207

L=2176

main90068-59168iNSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)201802

L=2176

main90099-33589iNSP151..F201804-202101

L=2200

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90068-59100iNCP15#..GCC,GEN,PH,VN201310-201606

L=2290

main90068-59136iNCP150..C201403-201609

L=2290

85372TGROMMET, WASHER

main85372-20020iNCP15#..GCC,GEN,PH,VN201310-201606

main85373-0D090iNSP151..5F..R..C201802-202108

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-33256iNCP150..C201403-201609

L=235

main90099-33299iNSP151..TAIW201310-201802

L=1000(*H,L=250)

85379BGROMMET, WASHER, A

main85373-0D080iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201709-202108

main85373-12030iNCP15#,NSP152..A201310-201407

85379CGROMMET, REAR WASHER HOSE NO.1

main85379-52530iNCP150..TAIW201310-201604

827110K090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K090

8271135520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35520

853870D330CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-0D330

9046907011

main90469-07011

90469T0005

main90469-T0005

24 parts on this diagram · 3 diagrams in section
