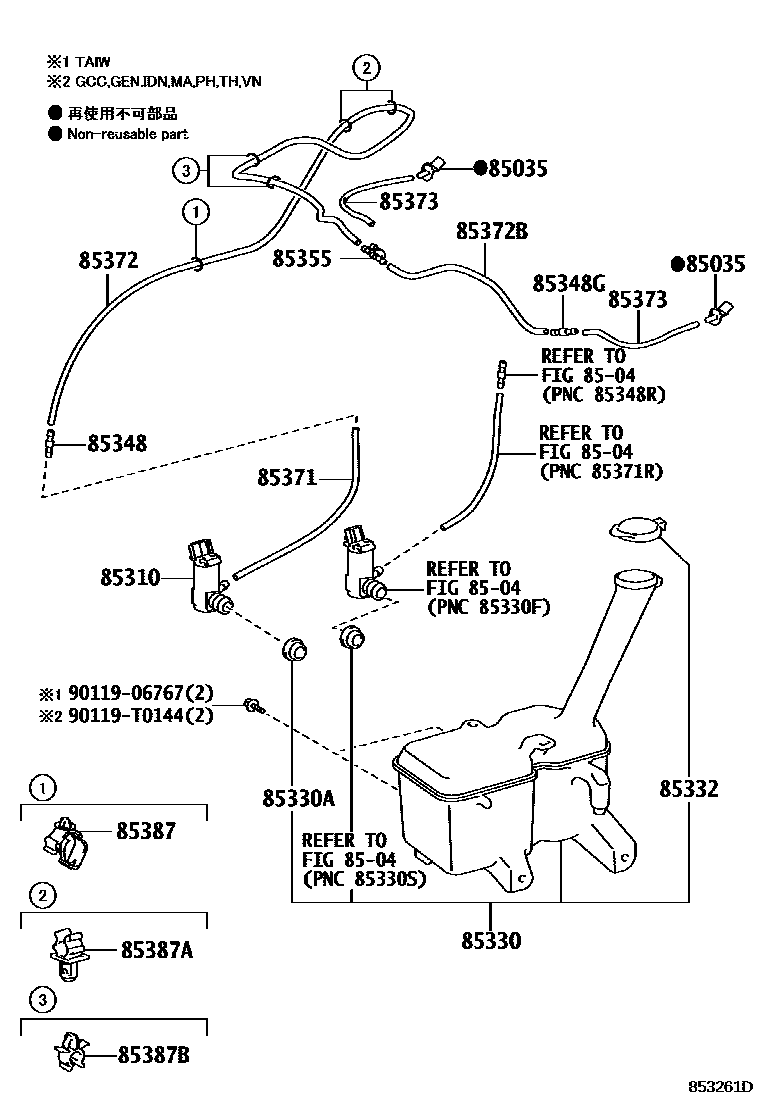

WINDSHIELD WASHER

0001 1 0006 1 0007 1 0009 1 0010 1 0011 1 0012 1

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2iNCP150,NSP151..C201403-201712

ANGLE -2

main85381-20230iNSP151..5F..R..C201802-202108

ANGLE 0

main85381-20300iNSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)201802

ANGLE +2

main85381-20310iNSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)201802

ANGLE -2

main85381-30220×2iNSP151..PH,SA;NSP150..CVT..PH201709-202207

ANGLE 0

main85381-30230iNSP151..F201804-202101

ANGLE -2

main85381-30240iNSP151..F201804-202101

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D130iNCP150..TAIW201310-201604

main85330-0D131iNSP150..RHD;NSP150..5F..PH201709-202108

main85330-0K011iNSP151..C201802-202102

main85330-0K012iNSP151..(G,V)..C;NSP151..CVT..R..C202103

main85330-47090iNSP150,151..H201806-201910

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D230iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

main85315-0D240iNSP151..TAIW201409-201802

main85315-0D290iNCP150..C201403-201609

main85315-0D300iNSP151..C201802-202106

main85315-0D301iNSP151..(G,V)..C;NSP151..CVT..R..C202106

main85315-0D390iNSP150,151..H201806-201910

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32006iNSP151..TAIW201409-201802

main90099-32089iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302

85332CAP, WINDSHIELD WASHER JAR

main85316-02630iNSP15#..GCC,GEN,PH,TH,VN201609-201708

main85316-0D200iNCP150..TAIW201409-201604

main85316-0D300iNSP151..C201802-202106

main85316-0D301iNSP151..(G,V)..C;NSP151..CVT..R..C202106

main85316-0D390iNSP150,151..H201806-201910

main85316-16070iNCP150..C201403-201609

main85316-YE011iNSP15#..GCC,GEN,PH,TH,VN201310-201609

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNSP151..C201802-201912

main85375-02330iNSP150..RHD;NSP150..5F..PH201709-202108

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNSP151..C201802-201912

main85375-02330iNSP150..RHD;NSP150..5F..PH201709-202108

85355VALVE, WINDSHIELD WASHER HOSE

main85321-0A010iNSP150,151..LHD..(GCC,GEN,VN)202204-202302

main85321-28020iNSP151..F201709-202101

main85348-14390iNSP151..5F..R..C201912-202108

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33189iNCP150..TAIW201409-201604

L=260

main90068-33207iNSP151..PH,SA;NSP150..CVT..PH201709-202207

L=230

main90068-33226iNCP150..C201403-201609

L=230

main90068-33300iNSP151..5F..R..C201802-202108

L=210

main90099-33080iNSP150,151..H201806-201910

L=1450(*H,L=230)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59128iNCP15#,NSP15#..GCC,GEN,PH,TAIW,TH,VN201310-201802

L=1590

main90068-59134iNCP150,NSP151..C201403-201712

L=1590

main90068-59167iNSP151..F201709-202101

L=1620

main90068-59169iNSP150,151..C,H201802-201912

L=1620

main90099-59371iNSP151..B201904-202011

L=1620

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59111iNCP15#,NSP15#..GCC,GEN,PH,TAIW,TH,VN201310-201802

L=305

main90068-59122iNCP150,NSP151..C201403-201712

L=305

main90068-59148iNSP150,151..C,H201802-201912

L=300

main90068-59176iNSP150..RHD;NSP150..5F..PH201709-202108

L=300

main90446-07001iNSP151..B201904-202011

L=1800(*H,L=300)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33153×2iNSP152..HTWCB201709-201912

L=180

main90068-33160iNSP152201912-202302

L=40

main90068-33207×2iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

L=230

main90068-33226×2iNCP150,NSP151..C201403-201712

L=230

main90068-33330iNSP150,151..C,H201802-201912

L=180

main90099-33299iNSP151..B,F201804-202101

L=1000(*H,L=180)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-0K100iNSP151..PH,SA;NSP150..CVT..PH202008-202207

main82711-3F230iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN201310-201802

85387ACLAMP, WASHER, NO.2

main85371-0D050×2iNCP150,NSP151..C201403-201712

main85371-52110×2iNSP151..PH,SA;NSP150..CVT..PH201709-202207

85387BCLAMP, WASHER, NO.3

main85371-12040×2iNSP150,151..H201806-201910

main90469-07011×2iNSP151..(G,V)..C;NSP151..CVT..R..C201802

(J)

main90469-T0005×2iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

9011906767

main90119-06767

90119T0144

main90119-T0144

18 parts on this diagram · 7 diagrams in section
