CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
SUPER WHITE 2,040
SILVER ME.,1D4
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
CYAN METALLIC,8W9
89342SENSOR, ULTRASONIC, REAR CORNER
SUPER WHITE 2,040
SILVER ME.,1D4
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
CYAN METALLIC,8W9
89342ASENSOR, ULTRASONIC, REAR CENTER
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1D4
SILVER ME.,1F7
GRAY ME.,1G3
MEDIUM SILVER ME.,1F8
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
ORANGE ME.,4R8
AIR YELLOW,5B6
CITRUS M.M.,6W2
DK.BLUE M.M.,8W7
LAOS SPEC,CYAN METALLIC,2UH ,8W9
CYAN METALLIC,8W9
89343CBUZZER, CLEARANCE WARNING, NO.1
89348DCLIP, ULTRASONIC SENSOR
9167380616
main91673-80616

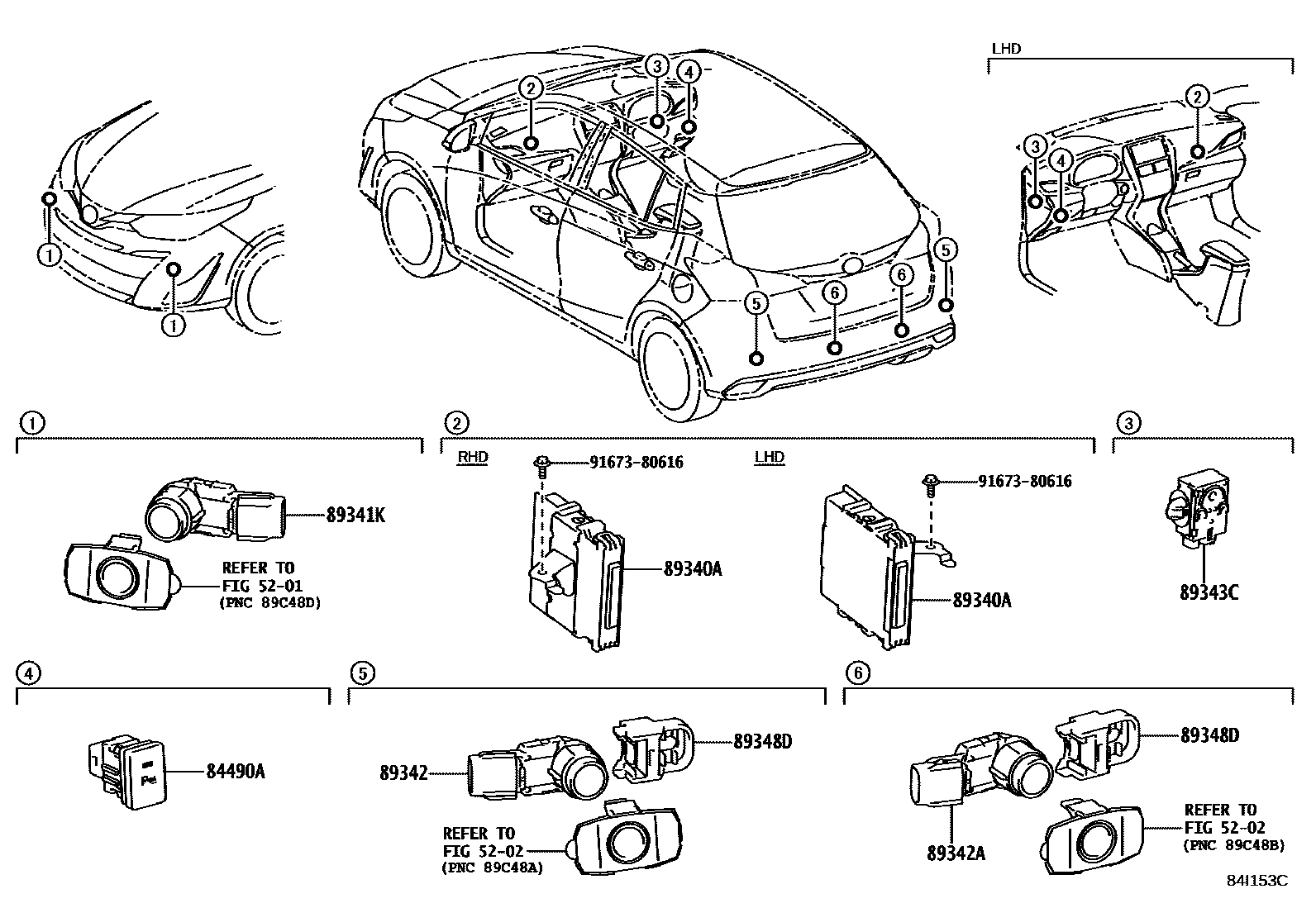

10 parts on this diagram · 1 diagram in section
