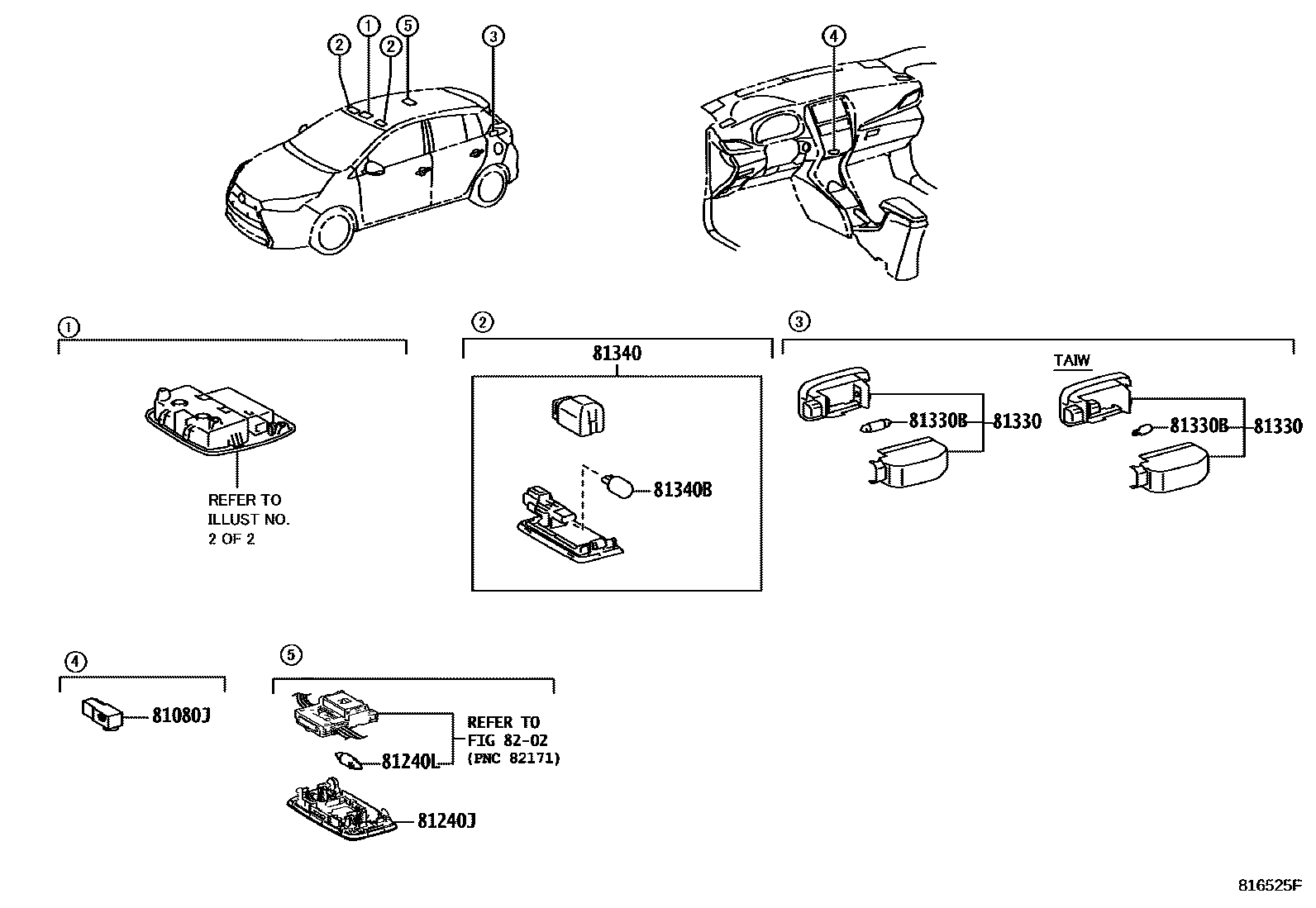

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48020iNSP151..PH,SA;NSP150..CVT..PH201709-202302

81240JLAMP ASSY, ROOM

main81240-35020-C1iNSP151..(G,R)..F;NSP150,151..(GCC,GEN)..A201710-202005

BLACK,TRIM0#

sub81240-35020

sub81240-42020

main81240-35020-C1iNSP151..(G,R)..F;NSP150,151..(GCC,GEN)..A201710-202005

BLACK,TRIM0#,2#

sub81240-35020

sub81240-42020

main81240-35020-C1iNSP151..V..B;NSP151..(GEN,SA)..(G,V);NSP151..(GEN,IDN,TAIW)..(D,V)..(C,F,H);NSP15#..(AGT,BZ,IDN,MA,PH,SA,TH)..(D,G,R)201709-202005

BLACK,TRIM2#

sub81240-35020

sub81240-42020

main81240-42020-C0iNSP151..VN202006-202302

BLACK,TRIM2#

main81240-42020-C0iNSP150,151..LHD..(GCC,GEN)202006-202302

BLACK,TRIM0#

main81240-42020-C0iNSP150,151..LHD..(GCC,GEN)202006-202302

BLACK,TRIM0#,2#

81240LBULB, ROOM LAMP

main90981-14011iNSP151..F201709-202302

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0D090iNCP150..TAIW201409-202101

main81330-0D110iNSP15#..GCC,GEN,PH,TH,VN201310-202302

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11069iNSP151..TAIW201409-202101

12V 5W

main99132-13050iNSP151..PH,SA;NSP150..CVT..PH201310-202302

12V 5W

81340LAMP ASSY, VANITY

main81340-52010-C0iNSP150,151..H201806-201910

BLACK,TRIM2#

81340BBULB (FOR VANITY LAMP)

main99132-12050iNSP150,151..H201806-201910

12V 5W

8202

8 parts on this diagram · 2 diagrams in section
