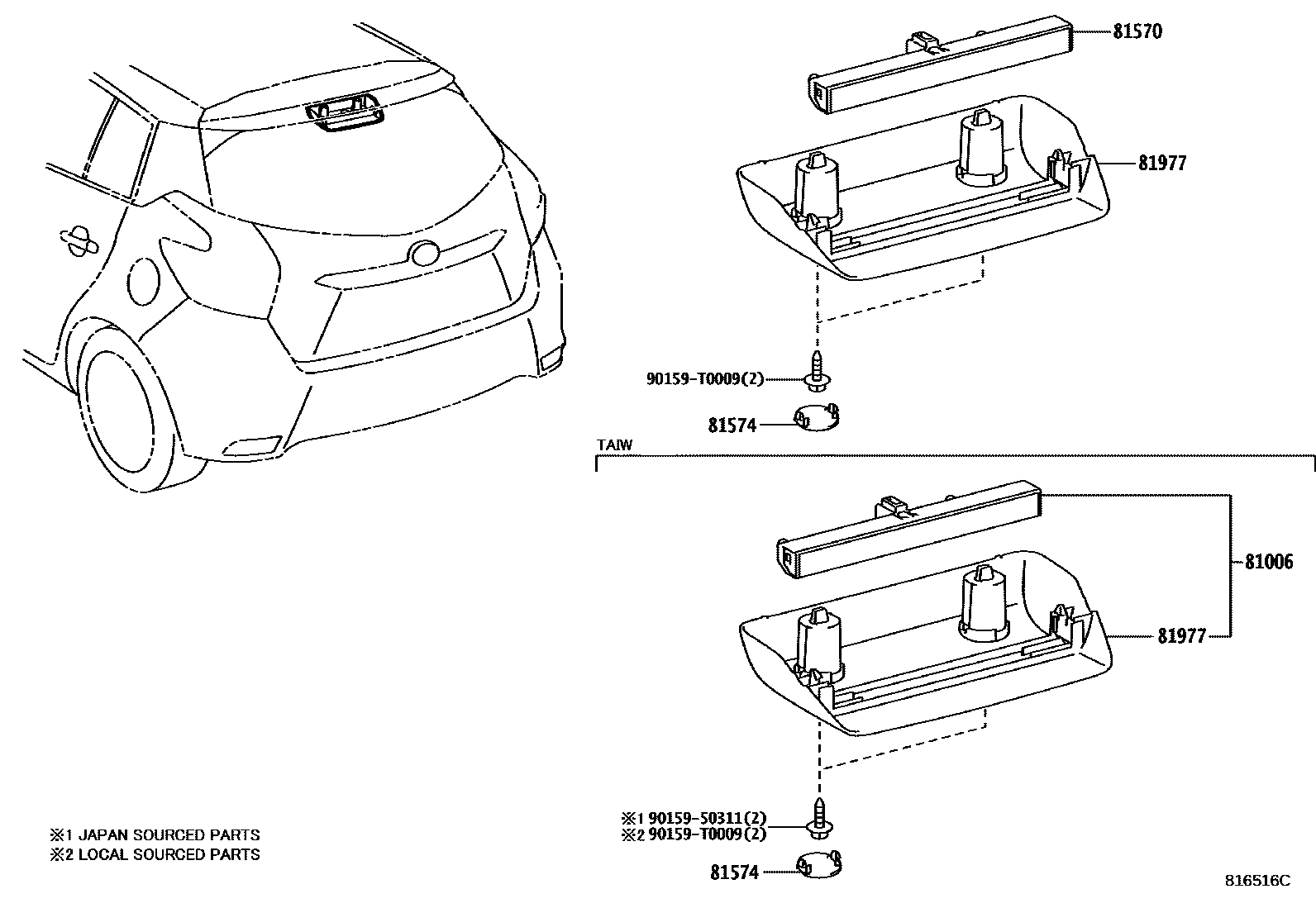

CENTER STOP LAMP

0001 1 0005 1

81006LAMP SET, STOP CENTER

main81006-0D120-C0iNCP150..TAIW..(G,R); NCP150..V..A201409-201604

BLACK,TRIM0#,2#; BLACK,TRIM2#

main81006-0D290-C0iNSP150,151..LHD..(GCC,GEN)..A; NSP151..VN201710-202302

BLACK,TRIM0#; BLACK,TRIM0#,2#

main81006-0D300-C0iNSP151..(G,V)..C;NSP151..CVT..R..C201802

BLACK,TRIM2#

main81006-0D310-C0iNSP151..(G,R)..F; NSP151..V..F201804-202101

BLACK,TRIM0#,2#; BLACK,TRIM2#

81570LAMP ASSY, CENTER STOP

main81570-12430iNCP15#..GCC,GEN,PH,VN201310-201606

81574COVER, CENTER STOP LAMP

main81952-0D080-C0×2iNSP15#..GCC,GEN,TH,VN; NSP152201310-201708

BLACK,TRIM0#,2#; ECO PACKAGE,BLACK,TRIM0#,2#

main81952-0D090-C0×2iNSP151..(G,R)..F; NSP151..V..F201804-202101

BLACK,TRIM0#,2#; BLACK,TRIM2#

main81952-0D110-C0×2iNSP151..(G,V)..C;NSP151..CVT..R..C201802

BLACK,TRIM2#

main81952-0D120-C0×2iNSP150,151..H201806-201910

BLACK,TRIM2#

81977COVER, CENTER STOP LAMP

main81977-0D120-C0iNSP15#..GCC,GEN,TH,VN; NSP152201310-201708

BLACK,TRIM0#,2#; ECO PACKAGE,BLACK,TRIM0#,2#

main81977-0D150-C0iNSP151..TAIW..(G,R); NSP151..TAIW..V201409-201802

BLACK,TRIM0#,2#; BLACK,TRIM2#

main81977-0D190-C0iNCP150..4FC..R..C; NCP150..G..C; NCP150..V..C201403-201609

BLACK,TRIM0#,2#; BLACK,TRIM2#; BRUNEI SPEC,BLACK,TRIM0#,2#

main81977-0D310-C0iNSP151..(G,R)..F; NSP151..V..F201804-202101

BLACK,TRIM0#,2#; BLACK,TRIM2#

9015950311

main90159-50311

90159T0009

main90159-T0009

6 parts on this diagram · 2 diagrams in section
