REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main90981-13043iNSP151..F201403-202302

12V 21W

main90981-13043iNSP151..GEN..G;NSP151..AGT,BZ,GCC,MA;NSP150..(BZ,GCC)..(G,R)201710-202302

12V 21W,ECUADOR SPEC

81215HSOCKET, REAR FOG LAMP

main90075-99080iNCP150,NSP151..TAIW201409-202101

81456LENS & BODY, REAR FOG LAMP, LH

main81456-0D090iNSP151..F201804-202101

main81591-0D130iNCP150,NSP151..TAIW201409-201802

81457ALENS & BODY, REAR FOG LAMP, RH

main81457-0D090iNSP151..F201804-202101

main81581-0D170iNCP150,NSP151..TAIW201409-201802

81580HLAMP ASSY, REAR FOG, RH

main81480-0D030iNSP151..PH,SA;NSP150..CVT..PH201710-202302

TYPE B:REFER ILLUST.

main81480-0D030iNSP151..5F..GEN201710-202302

ECUADOR SPEC,TYPE B:REFER ILLUST.

main81480-0D090iNSP151..F201804-202101

TYPE B:REFER ILLUST.

main81580-0D110iNCP15#..PH,VN;NSP150,151..GCC,PH,VN201403-201708

TYPE A:REFER ILLUST.

main81580-0D170iNCP150,NSP151..TAIW201409-201802

TYPE A:REFER ILLUST.

main81580-0D210iNCP150..MA201403-201609

TYPE A:REFER ILLUST.

81590BLAMP ASSY, REAR FOG, LH

main81490-0D030iNSP151..5F..GEN201710-202302

ECUADOR SPEC,TYPE B:REFER ILLUST.

main81490-0D030iNSP151..PH,SA;NSP150..CVT..PH201710-202302

TYPE B:REFER ILLUST.

main81490-0D090iNSP151..F201804-202101

TYPE B:REFER ILLUST.

main81590-0D100iNCP15#..PH,VN;NSP150,151..GCC,PH,VN201403-201708

TYPE A:REFER ILLUST.

main81590-0D130iNCP150,NSP151..TAIW201409-201802

TYPE A:REFER ILLUST.

main81590-0D180iNCP150..MA201403-201609

TYPE A:REFER ILLUST.

9016750063

main90167-50063

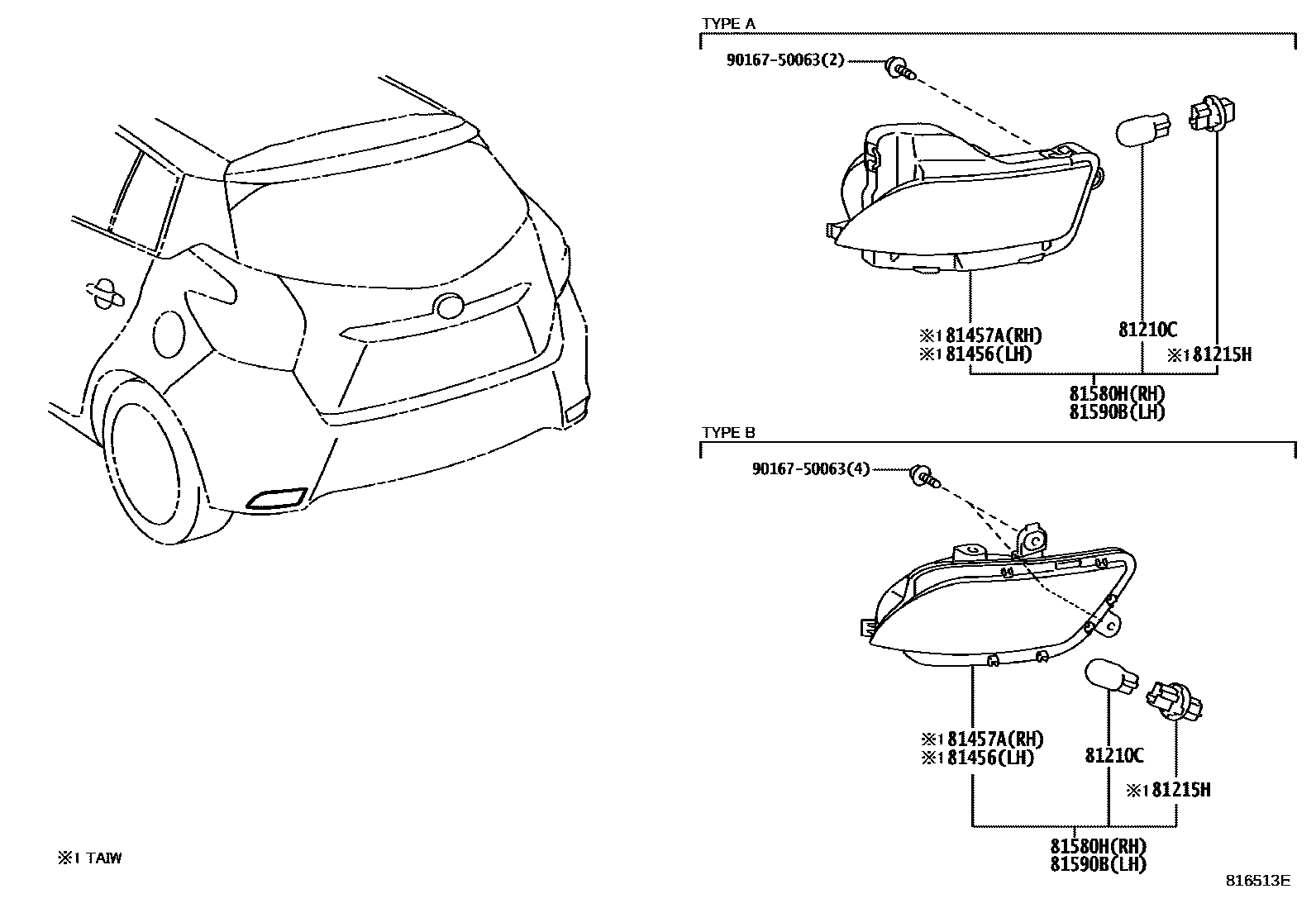

7 parts on this diagram · 1 diagram in section
