REAR MOULDING
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
NO PAINT REQ.
PLATED
NO PAINT REQ.
PLATED
NO PAINT REQ.
main76801-0DA41supersedes 76801-0DB41iNSP150..CVT..PH;NSP151..SA..(D,R); NSP151..(PH,SA)..(G,V)202101-202207
NO PAINT REQ.; NO PAINT REQ.,MLM PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,E-SPORT PACKAGE(GRADE MARK(S))
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,SPORT PACKAGE(*RCL(LED TYPE))
NO PAINT REQ.,ECO PACKAGE&WIRELESS DOOR LOCK-WITHOUT; NO PAINT REQ.,J PACKAGE&WIRELESS DOOR LOCK-WITHOUT
main76801-0DB41iNSP150,151..LHD..GEN..R; NSP150..LHD..CVT..GEN..R; NSP150..LHD..GEN..R; NSP151..5F..GEN; NSP151..GCC; NSP151..GEN..R; NSP151..GEN..R;NSP150..5F..GEN..R; NSP151..GEN..R;NSP150..LHD..CVT..GEN..R202101-202302
NO PAINT REQ.,CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT; NO PAINT REQ.,CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 4SPEAKER; NO PAINT REQ.,COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT; NO PAINT REQ.,COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 4SPEAKER; NO PAINT REQ.,COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER); NO PAINT REQ.,E-SPORT PACKAGE(GRADE MARK(S)); NO PAINT REQ.,ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-CD & AM/FM & USB &4SPEAKER & *BT; NO PAINT REQ.,ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 4SPEAKER; NO PAINT REQ.,LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-CD & AM/FM &USB & 4SPEAKER & *BT; NO PAINT REQ.,LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 4SPEAKER; NO PAINT REQ.,LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER); NO PAINT REQ.,LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 6SPEAKER; NO PAINT REQ.,LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 6SPEAKER & W(AUDIO LESS COVER); NO PAINT REQ.,MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 4SPEAKER& W(AUDIO LESS COVER); NO PAINT REQ.,PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 6SPEAKER; NO PAINT REQ.,PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))&AUDIO-RADIOLESS 6SPEAKER &W(AUDIO LESS COVER)
76811GARNISH, BACK DOOR, OUTSIDE
76817CLIP, BACK DOOR OUTSIDE GARNISH
76818PAD, BACK DOOR OUTSIDE GARNISH
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
9010906361
main90109-06361
9011606172
main90116-06172
90178T0092
main90178-T0092
9017906256
main90179-06256
9043005003
main90430-05003
9046709196
main90467-09196

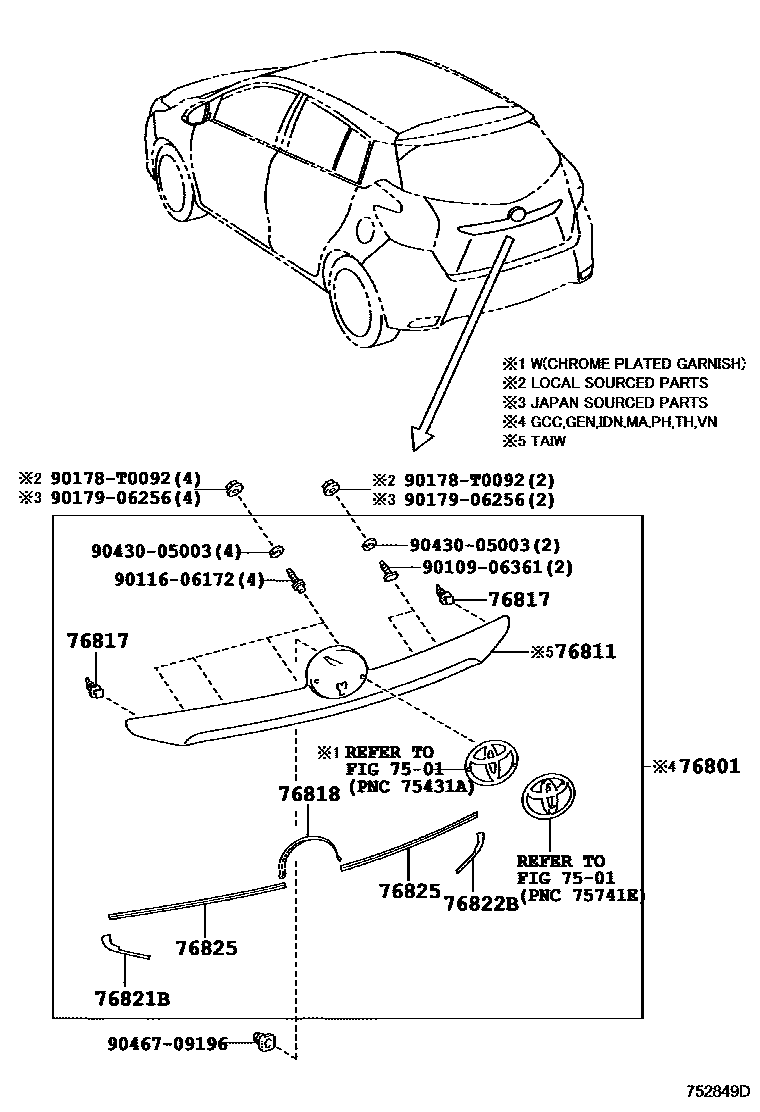

14 parts on this diagram · 2 diagrams in section
