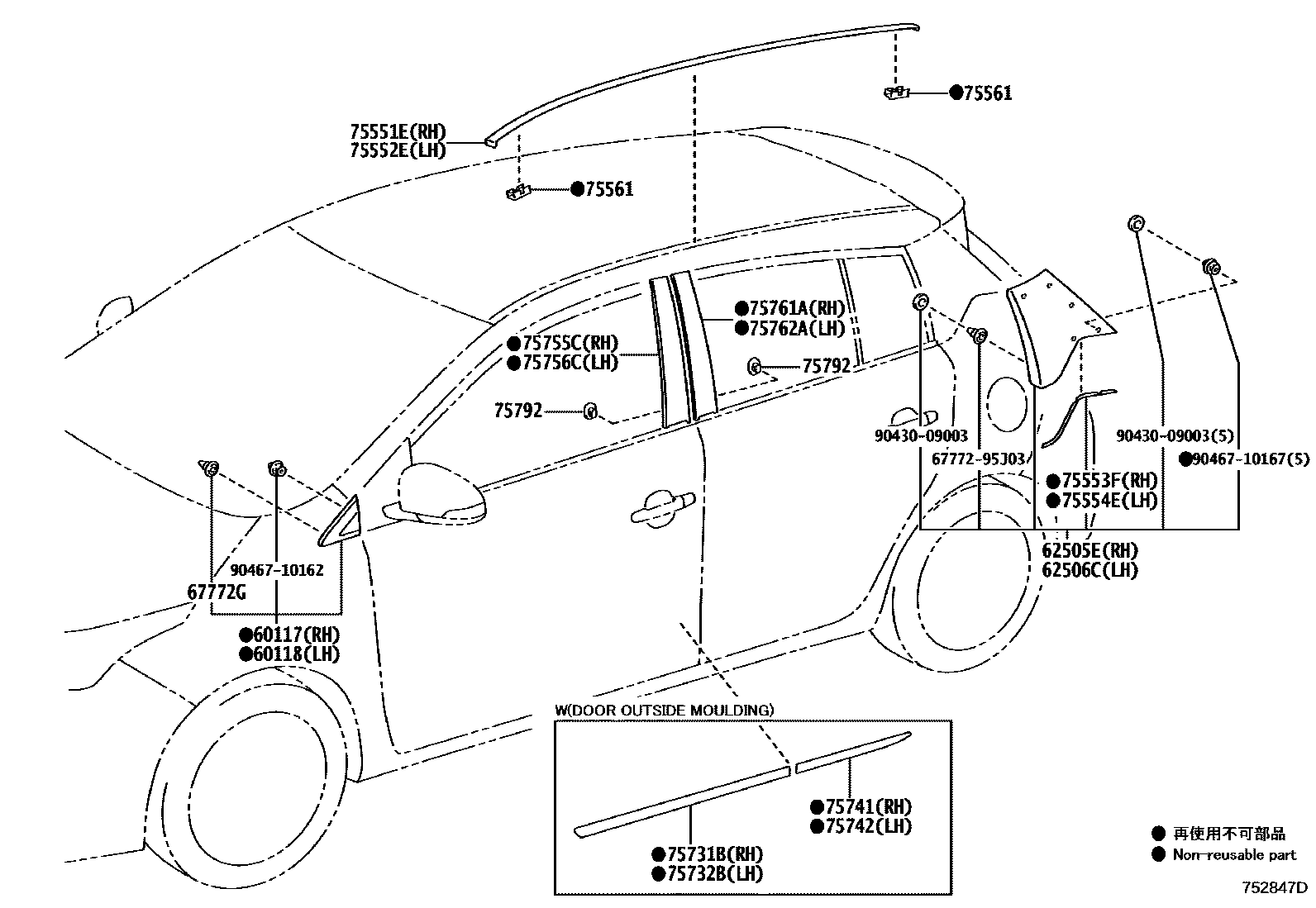

SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
67772GCAP, FRONT PILLAR COVER
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75553FMOULDING, QUARTER GARNISH, RH
75554EMOULDING, QUARTER GARNISH, LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
(J)
75731BMOULDING, FRONT DOOR, OUTSIDE RH
75732BMOULDING, FRONT DOOR, OUTSIDE LH
75741MOULDING, REAR DOOR, OUTSIDE RH
PAINT REQ.
75742MOULDING, REAR DOOR, OUTSIDE LH
PAINT REQ.
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75792CLIP, DOOR WINDOW FRAME MOULDING
(L)
(J)
6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-95J03
9043009003
main90430-09003
9046710162
main90467-10162
9046710167
main90467-10167
23 parts on this diagram · 2 diagrams in section
