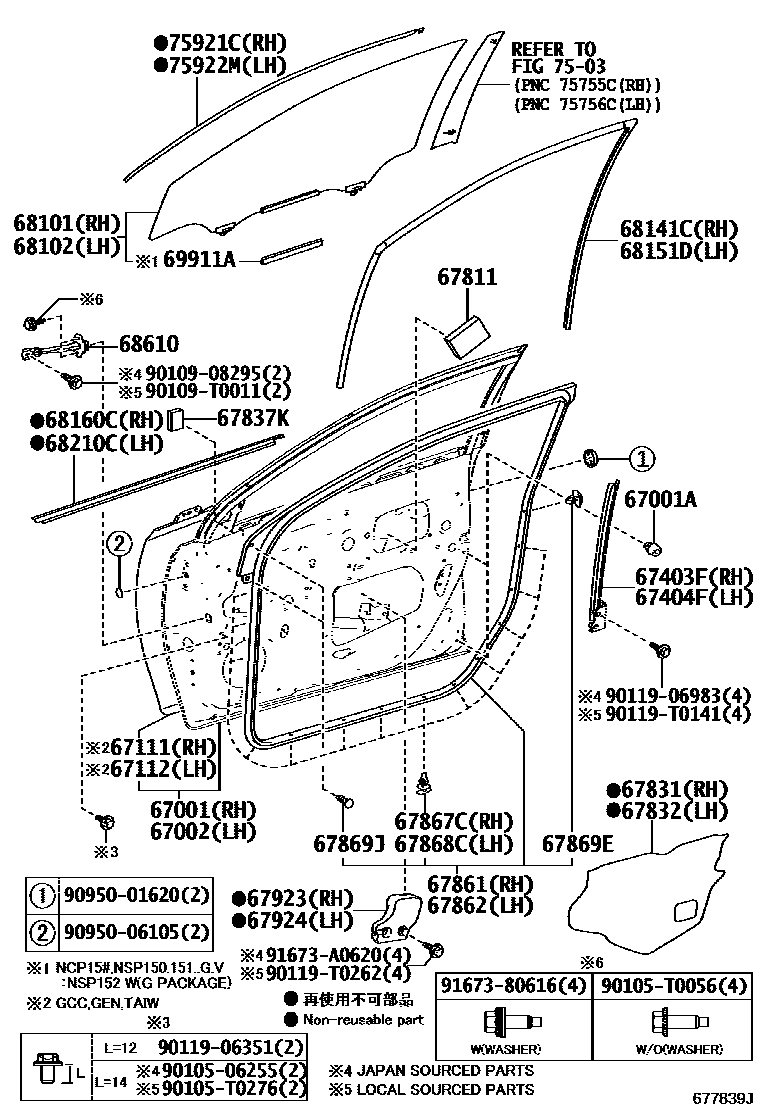

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0005 1DOOR PANEL 0011 1DOOR PANEL 0012 1DOOR TRIM 0016 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0D290iNCP150..C201403-201712

sub67001-0D250

main67001-0D340iNCP150..TAIW201409-201802

main67001-0D370iNCP15#..GCC,GEN,PH,VN201310-201708

main67001-0D430iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main67001-0D440iNSP151..B201904-202011

main67001-0D450iNSP151..5F..R..C201802-202108

main67001-0D470iNSP151..F201804-202101

main67001-0D490iNSP150,151..H201806-201910

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iNSP15#..GCC,GEN,PH,TH,VN201310-202302

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0D300iNCP150..C201403-201712

sub67002-0D160

main67002-0D350iNCP150..TAIW201409-201802

main67002-0D380iNCP15#..GCC,GEN,PH,VN201310-201708

main67002-0D430iNSP150..RHD;NSP150..5F..PH201709-202302

main67002-0D440iNSP151..B201904-202011

main67002-0D450iNSP151..5F..R..C201802-202108

main67002-0D470iNSP151..F201804-202101

main67002-0D490iNSP150,151..H201806-201910

67111PANEL, FRONT DOOR, OUTER RH

main67111-K0010iNCP150,NSP151..TAIW201409-201802

main67111-K0020iNCP15#,NSP150,151..GCC,GEN201403-201708

main67111-K0030iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201709-202302

67112PANEL, FRONT DOOR, OUTER LH

main67112-K0010iNCP150,NSP151..TAIW201409-201802

main67112-K0020iNCP15#,NSP150,151..GCC,GEN201403-201708

main67112-K0030iNSP151..F201709-202302

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0D130iNSP150..RHD;NSP150..5F..PH201310-202302

main67403-0D150iNSP151..TAIW201409-202101

main67403-0D160iNCP150..C201403-202108

main67403-0D210iNSP150,151..H201806-201910

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0D130iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main67404-0D150iNSP151..F201409-202101

main67404-0D160iNSP151..5F..R..C201403-202108

main67404-0D210iNSP150,151..H201806-201910

67811PAD, FRONT DOOR SILENCER

main67811-02380iNSP150,151..H201806-201910

main67811-0D010iNCP15#..GCC,GEN,PH,VN201310-202302

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0D260iNCP15#..D201403-201708

main67831-0D310iNSP151..CVT..D;NSP15#..(GCC,GEN,PH,TH,VN)..(G,R)201310-201708

main67831-0D320iNCP150..TAIW201409-201802

main67831-0D360iNSP151..C201403-201712

main67831-0D430iNSP151..B;NSP152..HTWCB;NSP151..GEN..D..A201710-202302

main67831-0D440iNSP151..(G,V)..C;NSP151..CVT..R..C201902-202108

main67831-0D460iNSP151..F201902-202101

main67831-0D480iNSP150,151..D..H201806-201910

main67831-0D490iNSP15#..(GCC,GEN,PH,SA,TH,VN)..(G,R,V)..A201709-201902

main67831-0D500iNSP151..C201802-201902

main67831-0D520iNSP151..F201804-201902

main67831-0D540iNSP150,151..(G,R,V)..H201806-201910

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0D160iNSP150,151..5F..D201403-201708

main67832-0D210iNSP151..CVT..D;NSP15#..(GCC,GEN,PH,TH,VN)..(G,R)201310-201708

main67832-0D220iNCP150..TAIW201409-201802

main67832-0D300iNSP150..RHD;NSP150..5F..PH201710-202302

main67832-0D310iNSP151..(G,V)..C;NSP151..CVT..R..C201902-202108

main67832-0D330iNSP151..F201902-202101

main67832-0D350iNSP150,151..D..H201806-201910

main67832-0D360iNCP150..C201403-201712

main67832-0D370iNSP15#..(GCC,GEN,PH,SA,TH,VN)..(G,R,V)..A201709-201902

main67832-0D380iNSP151..C201802-201902

main67832-0D400iNSP151..F201804-201902

main67832-0D420iNSP150,151..(G,R,V)..H201806-201910

67837KSEAL, FRONT DOOR VENT

main67481-0D030iNCP150..C201310-202302

main67481-0D070iNSP150,151..H201806-201910

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0D150iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main67861-0D170iNSP151..TAIW201409-202101

main67861-0D180iNSP151..B201904-202011

main67861-0D210iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main67861-0D230iNSP150,151..H201806-201910

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0D150iNCP15#..GCC,GEN,PH,VN201310-202302

main67862-0D170iNSP151..TAIW201409-202101

main67862-0D180iNSP151..B201904-202011

main67862-0D210iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main67862-0D230iNSP150,151..H201806-201910

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iNCP150..C201310-202302

main67868-0D050iNSP151..C201708-202108

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iNSP151..TAIW201310-202302

main67868-0D060iNSP151..(G,V)..C;NSP151..CVT..R..C201708-202108

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034iNCP15#..GCC,GEN,PH,VN201310-202302

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iNSP151..F201310-202302

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0D070iNCP15#..GCC,GEN,PH,VN201310-201708

main67923-0D090iNCP150..TAIW201409-201802

main67923-0D110iNCP150..C201403-201712

main67923-0D160iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main67923-0D170iNSP151..B201904-202011

main67923-0D180iNSP151..5F..R..C201802-202108

main67923-0D190iNSP151..F201804-202101

main67923-0D210iNSP150,151..H201806-201910

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0D060iNCP15#..GCC,GEN,PH,VN201310-201708

main67924-0D100iNCP150..TAIW201409-201802

main67924-0D120iNSP151..C201403-201712

main67924-0D170iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main67924-0D180iNSP151..B201904-202011

main67924-0D190iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main67924-0D200iNSP151..F201804-202101

main67924-0D220iNSP150,151..H201806-201910

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-0D170iNCP150..R..C201403-201712

main68110-0D240iNCP15#..(GCC,GEN,PH,VN)..(D,R)201403-201708

sub68110-0D241

main68110-0D241iNSP151..SA..D201710-202302

main68110-0D250iNCP150..TAIW..R201409-201802

main68110-0D260iNSP151..D..B201904-202011

main68110-0D290iNCP15#..(GCC,GEN,PH,VN)..G201403-201708

sub68110-0D291

main68110-0D291iNSP150..RHD;NSP150..5F..PH201709-202302

main68110-0D310iNSP151..(G,R,V)..B201904-202011

main68110-0D350iNSP151..F201409-202101

main68110-0D370iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main68110-0D390iNSP15#..(GCC,TH)..R201310-201708

sub68110-0D391

main68110-0D400iNSP150,151..GCC..G201607-201708

sub68110-0D401

main68110-0D401iNSP150,151..GCC201710-202302

main68110-0D470iNSP150,151..D..H201806-201910

sub68110-0D471

main68110-0D480iNSP150,151..(G,R,V)..H201806-201910

sub68110-0D481

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-0D170iNCP150..R..C201403-201712

main68120-0D240iNSP150,151..(GEN,PH,VN)..(D,R)201403-201708

sub68120-0D241

main68120-0D241iNSP151..GEN..D..A201710-202302

main68120-0D250iNCP150..TAIW..R201409-201802

main68120-0D260iNSP151..D..B201904-202011

main68120-0D290iNCP15#..(GCC,GEN,PH,VN)..G201403-201708

sub68120-0D291

main68120-0D291iNSP150..LHD..GEN;NSP151,152..(GEN,TH,VN)..(G,R)..A201709-202302

main68120-0D310iNSP151..(G,R,V)..B201904-202011

main68120-0D350iNSP151..TAIW..(G,V)201409-202101

main68120-0D370iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main68120-0D390iNSP15#..(GCC,TH)..R201310-201708

sub68120-0D391

main68120-0D400iNSP150,151..GCC..G201607-201708

sub68120-0D401

main68120-0D401iNSP150,151..GCC201710-202302

main68120-0D470iNSP150,151..D..H201806-201910

sub68120-0D471

main68120-0D480iNSP150,151..(G,R,V)..H201806-201910

sub68120-0D481

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D190iNCP15#..GCC,GEN,PH,VN201310-202302

main68141-0D220iNCP150..TAIW201409-202101

main68141-0D230iNSP151..B201904-202011

main68141-0D250iNSP151..C201403-202108

main68141-0D320iNSP150,151..H201806-201910

68151DRUN, FRONT DOOR GLASS, LH

main68151-0D180iNCP15#..GCC,GEN,PH,VN201310-202302

main68151-0D200iNCP150..TAIW201409-202101

main68151-0D210iNSP151..B201904-202011

main68151-0D230iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main68151-0D280iNSP150,151..H201806-201910

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0D200iNCP15#..GCC,GEN,PH,VN201310-202302

main68160-0D220iNSP151..F201409-202101

main68160-0D260iNCP150..C201403-202108

main68160-0D340iNSP150,151..H201806-201910

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0D200iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main68210-0D220iNCP150..TAIW201409-202101

main68210-0D260iNSP151..C201403-202108

main68210-0D340iNSP150,151..H201806-201910

68610CHECK ASSY, FRONT DOOR

main68610-0D130iNCP15#,NSP152..A201310-201404

sub68610-0D131

main68610-0D131iNSP151..PH,SA;NSP150..CVT..PH201405-202302

main68610-0D161iNSP151..F201409-202101

main68610-0D170iNSP151..C201403-202108

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-0D040iNSP151..TAIW..(G,V)201403-202302

main69911-0D060iNCP150..(G,V)..C201403-202108

main69911-0D080iNSP150,151..(G,R,V)..H201806-201910

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0D110iNSP150..RHD;NSP150..5F..PH201310-202302

main75921-0D130iNSP151..TAIW201409-202101

main75921-0D140iNSP151..B201904-202011

main75921-0D170iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main75921-0D220iNSP150,151..H201806-201910

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0D110iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main75922-0D130iNSP151..TAIW201409-202101

main75922-0D140iNSP151..B201904-202011

main75922-0D170iNSP151..C201403-202108

main75922-0D220iNSP150,151..H201806-201910

9010506255

main90105-06255

90105T0056

main90105-T0056

90105T0276

main90105-T0276

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906351

main90119-06351

9011906983

main90119-06983

90119T0141

main90119-T0141

90119T0262

main90119-T0262

9095001620

main90950-01620

9095006105

main90950-06105

9167380616

main91673-80616

91673A0620

main91673-A0620

43 parts on this diagram · 5 diagrams in section
