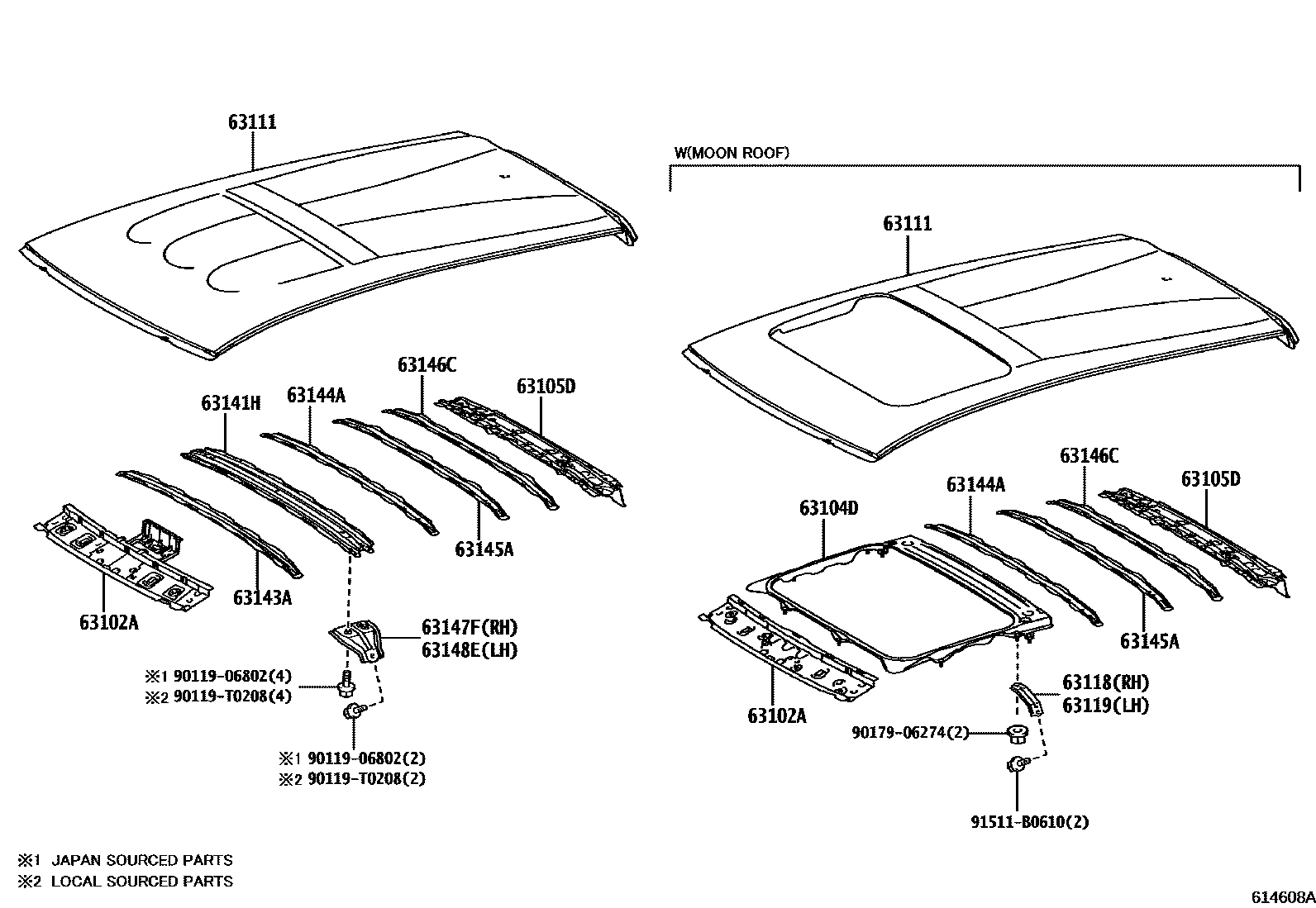

ROOF PANEL & BACK WINDOW GLASS

0001 1PANEL 0002 1MOON ROOF HOUSING

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0D130iNCP150..C201403-201609

main63102-0D140iNCP150..TAIW201409-201604

main63102-0D160iNSP150..RHD;NSP150..5F..PH201709-202108

main63102-0D260iNSP150,151..(D,G,R)..H201806-201910

main63132-0D250iNSP151..(BZ,GEN)..G; NSP151..V..H201806-201910

SPORT PACKAGE(*RCL(LED TYPE))

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-0D060iNSP151..(BZ,GEN)..G; NSP151..V..H201806-201910

SPORT PACKAGE(*RCL(LED TYPE))

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-0D070iNCP15#..PH,VN201310-201606

main63105-0D080iNCP15#..GCC,GEN201403-201606

main63105-0D110iNSP151..C201403-201712

main63105-0D120iNCP150..TAIW201409-201604

main63105-0D180iNSP151..F201804-202101

main63105-0D190iNSP150,151..H201806-201910

main63105-0D240iNSP151..B201904-202011

63111PANEL, ROOF

main63111-K0040iNSP151..TAIW201310-201802

main63111-K0120iNSP151..SA..(D,R)201709-202207

main63111-K0130iNSP150..CVT..GEN..G; NSP151..VN..G;NSP150,151..GCC..R201710-202302

LAOS SPEC

main63111-K0140iNSP151..(BZ,GEN)..G; NSP151..V..H201806-201910

SPORT PACKAGE(*RCL(LED TYPE))

63118SUPPORT, ROOF PANEL, RH

main63118-0D030iNSP151..(BZ,GEN)..G; NSP151..V..H201806-201910

SPORT PACKAGE(*RCL(LED TYPE))

63119SUPPORT, ROOF PANEL, LH

main63118-0D030iNSP151..(BZ,GEN)..G; NSP151..V..H201806-201910

SPORT PACKAGE(*RCL(LED TYPE))

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0D150iNCP150..C201403-201609

main63141-0D160iNCP150..TAIW201409-201604

main63141-0D161iNSP151..TAIW201702-201802

main63141-0D170iNCP15#..GCC,GEN,PH,VN201310-201606

main63141-0D171iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main63141-0D240iNSP150,151..(D,G,R)..H201806-201910

main63141-0D260iNSP151..(G,V)..C;NSP151..CVT..R..C201802

63143AREINFORCEMENT, ROOF PANEL

main63143-0D130iNSP151..C201403-201712

main63143-0D140iNCP150..TAIW201409-201604

main63143-0D150iNCP15#..GCC,GEN,PH,VN201310-201606

main63143-0D220iNSP150,151..(D,G,R)..H201806-201910

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-0D080iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main63144-0D110iNSP151..C201403-201712

main63144-0D130iNCP150..TAIW201409-201604

main63144-0D230iNSP150,151..H201806-201910

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63145-0D010iNSP152..HTWC;NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(GCC,IDN,MA)..(D,G,V)201709

main63145-0D040iNSP151..TAIW201409-201802

main63145-0D130iNSP150,151..H201806-201910

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63148-0D010iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

main63148-0D030iNSP151..5F..R..C201802-202108

main63148-0D040iNSP151..TAIW201409-201802

main63148-0D080iNSP150,151..H201806-201910

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-0D070iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main63147-0D090iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main63147-0D100iNCP150..TAIW201409-201604

main63147-0D130iNSP150,151..(D,G,R)..H201806-201910

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-0D070iNSP150..RHD;NSP150..5F..PH201709-202108

main63147-0D090iNSP151..C201403-201712

main63147-0D100iNSP151..F201804-202101

main63147-0D130iNSP150,151..(D,G,R)..H201806-201910

9011906802

main90119-06802

90119T0208

main90119-T0208

9017906274

main90179-06274

91511B0610

main91511-B0610

17 parts on this diagram · 2 diagrams in section
