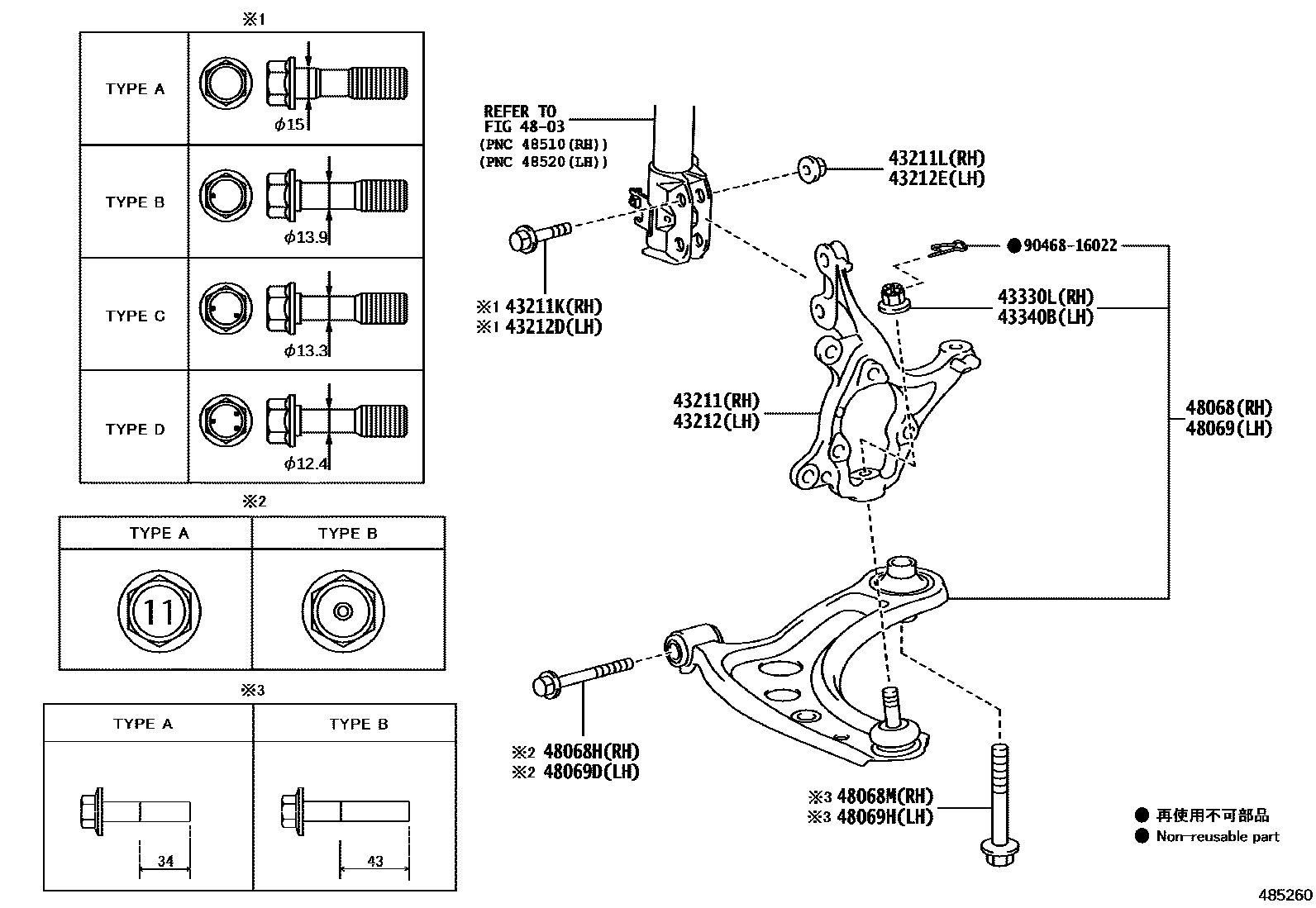

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0D250iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main43211-0D260iNSP151..F201804-202101

main43211-0D290iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main43211-0D310iNSP150,151..H201806-201910

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-T0190×2iNSP15#..GCC,GEN,PH,TH,VN201310-201708

OD=15,TYPE A:REFER ILLUST.

main90109-15001×2iNSP150,151..H201806-201910

OD=15,TYPE A:REFER ILLUST.

main90109-15002iNSP151..F201709-202101

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNSP151..PH,SA;NSP150..CVT..PH201709-202207

OD=12.4,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-T0069×2iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

(L)

main90179-15004×2iNSP150..RHD;NSP150..5F..PH201709-202108

(J)

43212KNUCKLE, STEERING, LH

main43212-0D250iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main43212-0D260iNSP151..F201804-202101

main43212-0D290iNSP151..5F..R..C201802-202108

main43212-0D310iNSP150,151..H201806-201910

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-T0190×2iNSP151..5F..R..C201802-202108

OD=15,TYPE A:REFER ILLUST.

main90109-15001×2iNSP150..RHD;NSP150..5F..PH201709-202108

OD=15,(J),TYPE A:REF ILL.

main90109-15002iNSP151..C201310-201712

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNSP151..F201709-202101

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNSP151..C201310-201712

OD=12.4,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-T0069×2iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main90179-15004×2iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

(J)

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNSP151..PH,SA;NSP150..CVT..PH201709-202207

(J)

main90171-T0005iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302

(L)

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNSP151..F201804-202101

main90171-T0005iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302

(L)

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-09210iNCP150..TAIW201409-201604

main48068-09211iNSP151..TAIW201605-201802

main48068-09220iNCP150..C201403-201406

main48068-09221iNCP150..C201406-201507

main48068-09222iNCP150..C201507-201509

main48068-09223iNSP151..C201802-202105

main48068-09230iNCP15#,NSP152..GCC,GEN,PH,TH,VN201310-201507

main48068-09250iNCP15#,NSP152..GCC,GEN,PH,TH,VN201507-201509

main48068-09251iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main48068-09290iNSP150,151..CVT..H201806-201910

main48068-09300iNSP150,151..6F201806-201910

main48068-09340iNSP151..(G,V)..C;NSP151..CVT..R..C202105

main48068-09260iNSP150..5F..GEN..R201710-202302

PERU SPEC

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iNSP151..PH,SA;NSP150..CVT..PH201709-202207

TYPE A:REFER ILLUST.

main90119-T0353iNSP151..C201403-201709

main90119-T0596iNSP151..5F..R..C201802-202108

TYPE B:REFER ILLUST.

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14147iNSP151..C201604-201710

(J)

main90119-14190iNSP150,151..H201806-201910

main90119-T0356iNCP150..C201604-201609

(L)

main90119-T0597iNSP151..PH,SA;NSP150..CVT..PH201709-202207

TYPE B:REFER ILLUST.

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-09220iNCP150..TAIW201409-201604

main48069-09221iNSP151..F201804-202101

main48069-09230iNCP150..C201403-201406

main48069-09231iNCP150..C201406-201507

main48069-09232iNCP150..C201507-201509

main48069-09233iNSP151..C201802-202105

main48069-09240iNCP15#,NSP152..GCC,GEN,PH,TH,VN201310-201507

main48069-09260iNCP15#,NSP152..GCC,GEN,PH,TH,VN201507-201509

main48069-09261iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

main48069-09300iNSP150,151..CVT..H201806-201910

main48069-09310iNSP150,151..6F201806-201910

main48069-09340iNSP151..5F..R..C202105-202108

main48069-09270iNSP150..5F..GEN..R201710-202302

PERU SPEC

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iNSP151..TAIW201310-201802

TYPE A:REFER ILLUST.

main90119-T0353iNSP151..C201403-201709

main90119-T0596iNSP151..TAIW201710-201802

TYPE B:REFER ILLUST.

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14147iNCP150..IDN,MA,TAIW201310-201604

main90119-14190iNSP150,151..H201806-201910

main90119-T0356iNSP151..C201604-201710

(L)

main90119-T0597iNSP151..PH,SA;NSP150..CVT..PH201709-202207

TYPE B:REFER ILLUST.

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
